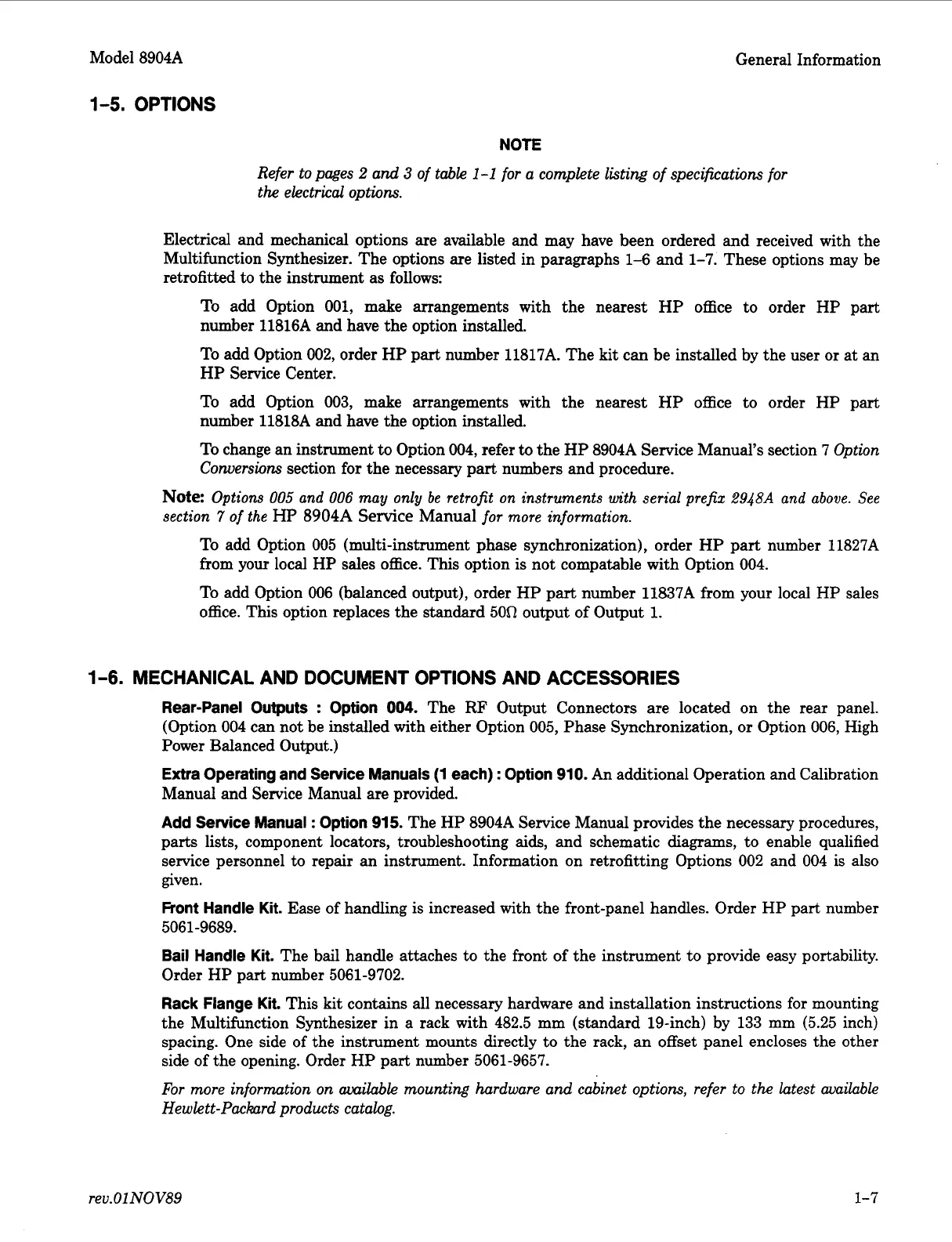

Model
8904A
1-5.
OPTIONS
General Information
NOTE
Refer to pages
2
and
3
of table 1-1 for a complete listing of specijications for
the
electrical options.
Electrical and mechanical options are available and may have been ordered and received with the
Multifunction Synthesizer. The options are listed in paragraphs
1-6
and
1-7.
These options may be
retrofitted to the instrument
as
follows:
To add Option
001,
make arrangements with the nearest HP office to order HP part
number
11816A
and have the option installed.
To add Option
002,
order HP part number
11817A.
The kit can be installed by the user
or
at an
HP Service Center.
To add Option
003,
make arrangements with the nearest HP office to order HP part
number
11818A
and have the option installed.
To change an instrument to Option
004,
refer to the
HP
8904A
Service Manual’s section
7
Option
Conversions
section for the necessary part numbers and procedure.
Note:
Options
005
and
006
may
only
be
retrofit on instruments with serial prefiz
R948A
and
above. See
section
7
of the
HP
8904A
Service
Manual
for more information.
To
add Option
005
(multi-instrument phase synchronization), order HP part number
11827A
from your local HP sales office. This option is not compatable with Option
004.
To add Option
006
(balanced output), order HP part number
11837A
from your local HP sales
office. This option replaces the standard
500
output of Output
1.
1-6.
MECHANICAL AND DOCUMENT OPTIONS AND ACCESSORIES
Rear-Panel Outputs
:
Option
004.
The
RF
Output Connectors are located on the rear panel.
(Option
004
can not be installed with either Option
005,
Phase Synchronization,
or
Option
006,
High
Power Balanced Output.)
Extra Operating and Sewice Manuals (1 each)
:
Option 910.
An
additional Operation and Calibration
Manual and Service Manual are provided.
Add Sewice Manual
:
Option 915.
The HP
8904A
Service Manual provides the necessary procedures,
parts lists, component locators, troubleshooting aids, and schematic diagrams, to enable qualified
service personnel to repair an instrument. Information on retrofitting Options
002
and
004
is also
given.
Front Handle Kit.
Ease of handling is increased with the front-panel handles. Order HP part number
Bail Handle Kit.
The bail handle attaches to the front of the instrument to provide easy portability.
Order HP part number
5061-9702.
Rack Flange Kit.
This kit contains all necessary hardware and installation instructions for mounting
the Multifunction Synthesizer in a rack with
482.5
mm (standard 19-inch) by
133
mm
(5.25
inch)
spacing. One side of the instrument mounts directly to the rack, an offset panel encloses the other
side of the opening. Order HP part number
5061-9657.
For
more information on available mounting hardware and cabinet options, refer to
the
latest available
Hewlett-Pacbrd products catalog.
5061-9689.
rev.OlNOV89
1-7
