HP 8904A - Volume 1 Contents

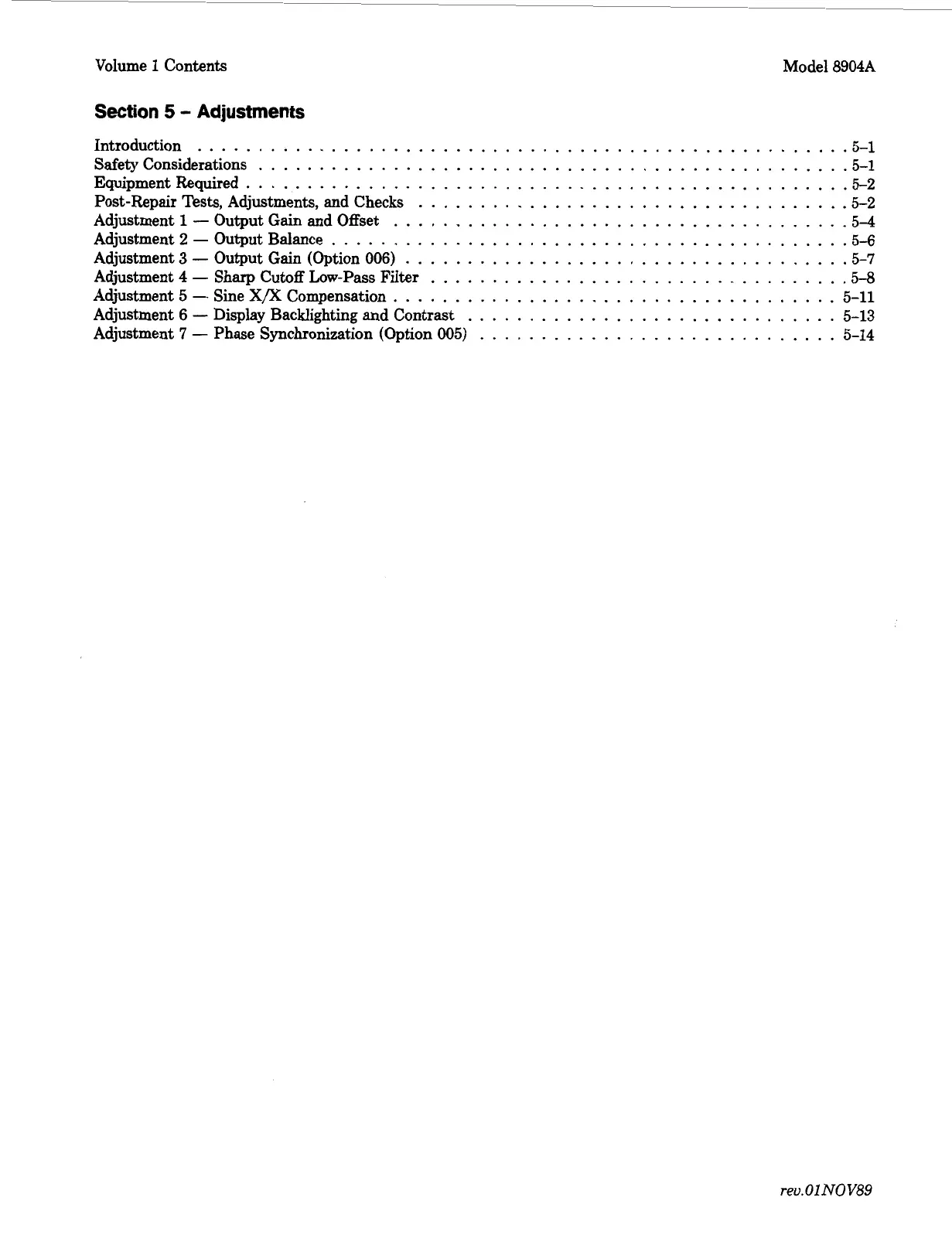

Volume 1 Contents
Model 8904A
Section 5 . Adjustments
.....................................................
................................................
.................................................
Introduction 5.1
Safety Considerations 5.1
Equipment Required
5.2
Post-Repair Tests, Adjustments, and Checks ................................... 5.2
Adjustment 1 - Output Gain and Offset ..................................... 5-4
Adjustment 2 - Output Balance .......................................... 5.6
Adjustment 3 - Output Gain (Option 006) .................................... 5.7
Adjustment 4 - Sharp Cutoff Low-Pass Filter .................................. 5.8
Adjustment 5 - Sine X/X Compensation .................................... 5-11
Adjustment
6 - Display Backlighting and Contrast .............................. 5-13
Adjustment
7 - Phase Synchronization (Option 005) ............................. 5-14
rev.OlNOV89
