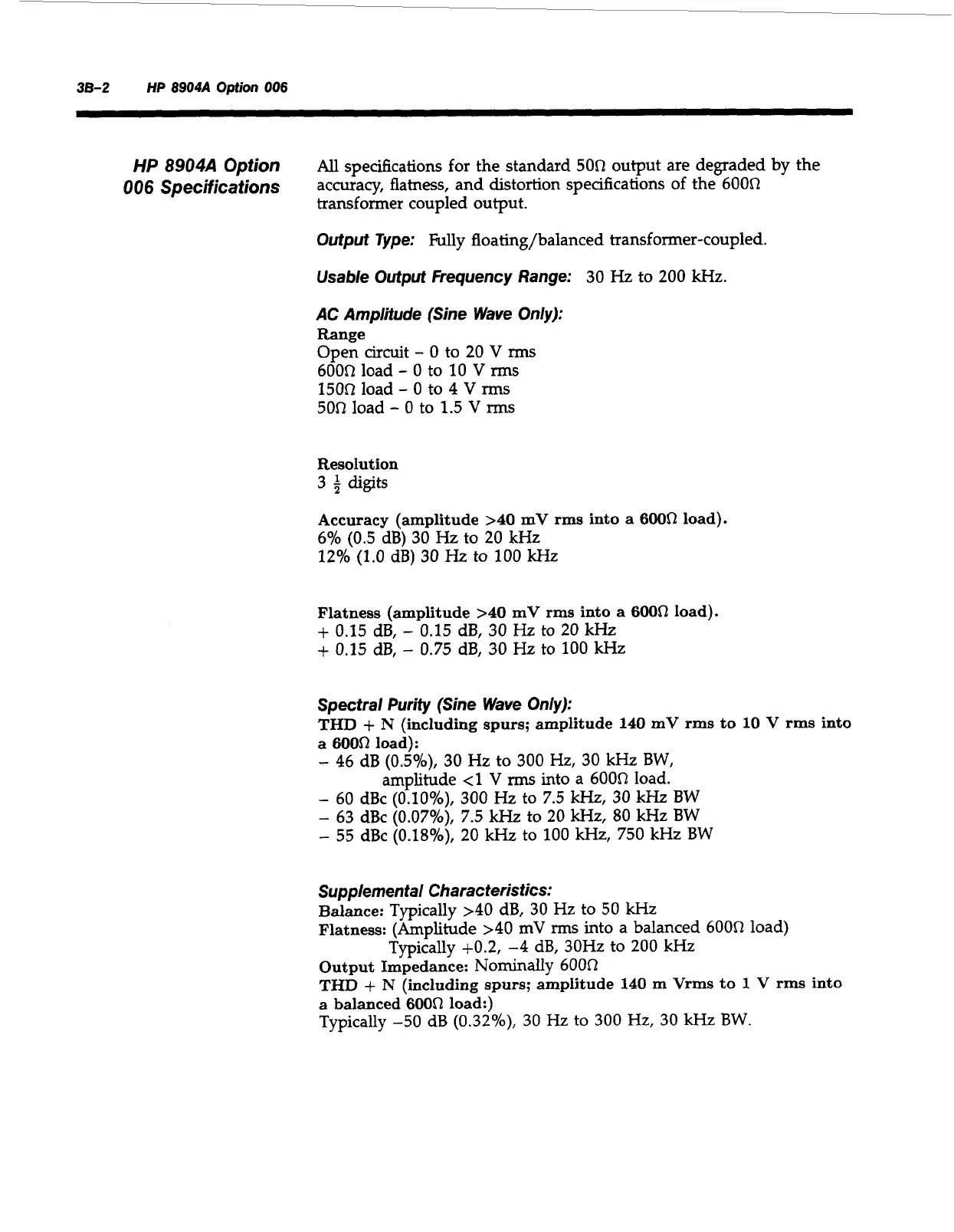

38-2
HP
8904A
Option
006
HP
8904A
Option
006
Specifications
All
specifications for the standard
500
output are degraded
by
the
accuracy, flatness, and distortion specifications of the
600R
transformer coupled output.
Output Type:
Fully floating/balanced transformer-coupled.
Usable Output Frequency Range:
30
Hz
to
200
kHz.
AC Amplitude (Sine Wave Only):
Range
Open
circuit
-
0
to
20
V
rms
600R
load
-
0
to
10
V
rms
150R
load
-
0
to
4
V
rms
50R
load
-
0
to
1.5
V
rms
Resolution
3
digits
Accuracy (amplitude
>40
mV rms into a
600R
load).
6%
(0.5
dB)
30
Hz
to
20
kHz
12%
(1.0
dB)
30
Hz
to
100
kHz
Flatness (amplitude
>40
mV rms into a
6000
load).
+
0.15
dB,
-
0.15
dB,
30
HZ
to
20
kHz
+
0.15
dB,
-
0.75
dB,
30
HZ
to
100
~HZ
Spectral Purity (Sine Wave Only):
THD
+
N
(including spurs; amplitude
140
mV
rms
to
10
V
rms into
a
6000
load):
-
46
dB
(O.5%),
30
HZ
to
300
Hz,
30
kHZ
BW,
amplitude
<1
V
rms
into a
6000
load.
-
60
dBc
(0.10%),
300
Hz
to
7.5
kHz,
30
kHz
BW
-
63
dBC
(0.07%),
7.5
kHz
to
20
kHz,
80
kHz
BW
-
55
dBc
(O.l8%),
20
kHz
to
100
kHz,
750
kHz
BW
Supplemental Characteristics:
Balance:
Typically
>40
dB,
30
Hz
to
50
kHz
Flatness:
(Amplitude
>40
mV
rms into a balanced
6000
load)
Output Impedance:
Nominally
6000
THD
+
N
(including spurs; amplitude
140
m Vrms to
1
V rms into
a
balanced
600R
load:)
Typically
-50
dB (0.32%),
30
Hz
to
300
Hz,
30
kHz
BW.
Typically +0.2,
-4
dB,
30Hz
to
200
kHz
