HP 8904A - Page 201

HP-IB Codes c-5

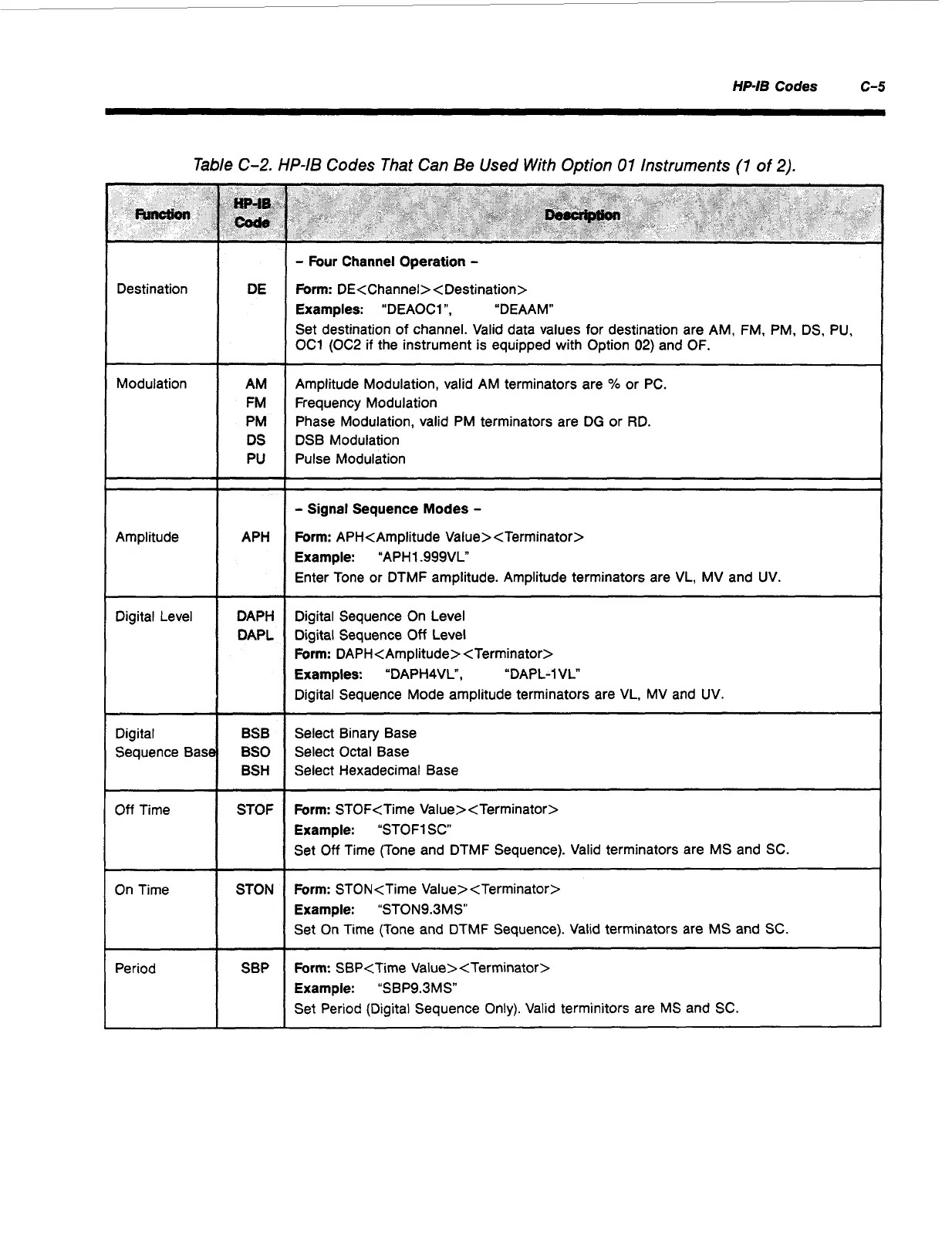

Table C-2. HP-IB Codes That Can Be Used With Option 01 Instruments (1 of 2).
Destination
~~
Modulation
Amplitude
Digital Level
Digital
Sequence Bas
Off Time
On Time
Period
- Four Channel Operation -
DE Form: DE<Channel><Destination>
Examples: “DEAOC1 ”, “DEAAM”
Set destination of channel. Valid data values for destination are AM, FM, PM,
DS, PU,
OC1 (OC2 if the instrument is equipped with Option 02) and OF.
Amplitude Modulation, valid AM terminators are YO or PC.
Phase Modulation, valid PM terminators are DG or
RD.
AM
FM Frequency Modulation
PM
DS DSB Modulation
PU Pulse Modulation
- Signal Sequence Modes -
Example: “APH1.999VL“
Enter Tone or DTMF amplitude. Amplitude terminators are VL, MV and UV.
APH Form: APH<Amplitude Value><Terminator>
DAPH Digital Sequence On Level
DAPL Digital Sequence
Off Level
Form: DAPH<Amplitude><Terminator>
Digital Sequence Mode amplitude terminators are VL, MV and UV.
Examples: ”DAPH4VL”, “DAPL-1 VL“
BSB
BSO
BSH
Select Binary Base
Select Octal Base
Select Hexadecimal Base
STOF
STON
SBP
Form: STOF<Time Value><Terminator>
Example: “STOF1 SC”
Set Off Time (Tone and DTMF Sequence). Valid terminators are MS and SC.
Form: STON<Time Value><Terminator>
Example: “STON9.3MS”
Set On Time (Tone and DTMF Sequence). Valid terminators are MS and SC.
Form: SBP<Time Value> <Terminator>
Example: “SBP9.3MS”
Set Period (Digital Sequence Only). Valid terminitors are MS and SC.
