Performance Tests Model 8904A

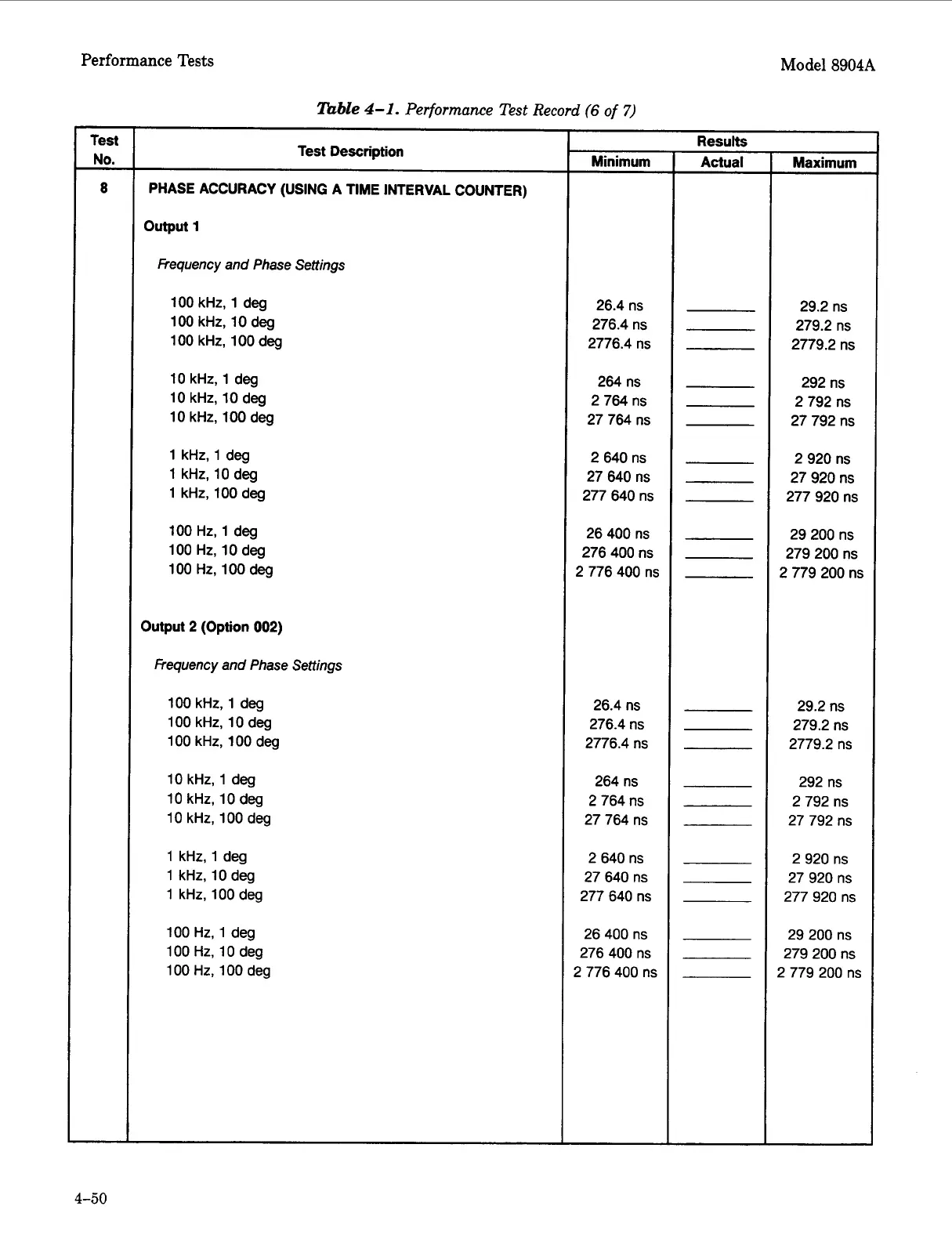

nzble 4-1. Performance Test Record (6 of 7)
Test
No.
8
Test Description
PHASE ACCURACY (USING A TIME INTERVAL COUNTER)
output 1
Frequency and Phase Settings
100 kHz, 1 deg
100 kHz, 10 deg
100 kHz, 100 deg
10 kHz, 1 deg
10 kHz, 10 deg
10 kHz, 100 deg
1 kHz, 1 deg
1 kHz, 10 deg
1 kHz, 100 deg
100 Hz, 1 deg
100 Hz, 10 deg
100 Hz, 100 deg
Output 2 (Option 002)
Fiequency and Phase Settings
100 kHz, 1 deg
100 kHz, 10 deg
100 kHz, 100 deg
10 kHz, 1 deg
10 kHz, 10 deg
10 kHz, 100 deg
1 kHz, 1 deg
1 kHz, 10 deg
1 kHz, 100 deg
100 Hz, 1 deg
100 Hz, 10 deg
100 Hz, 100 deg
Minimum
26.4 ns
276.4 ns
2776.4 ns
264 ns
2 764 ns
27 764 ns
2 640 ns
27 640 ns
277 640 ns
26 400 ns
276 400 ns
2 776 400 ns
26.4 ns
276.4 ns
2776.4 ns
264 ns
2 764 ns
27 764 ns
2 640 ns
27 640 ns
277 640 ns
26 400 ns
276 400 ns
2 776 400 ns
Results
Actual
Maximum
29.2 ns
279.2 ns
2779.2 ns
292 ns
2 792 ns
27 792 ns
2 920 ns
27 920 ns
277 920 ns
29 200 ns
279 200 ns
2 779 200 ns
29.2 ns
279.2 ns
2779.2 ns
292 ns
2 792 ns
27 792 ns
2 920 ns
27 920 ns
277 920 ns
29 200 ns
279 200 ns
2 779 200 ns
4-50
