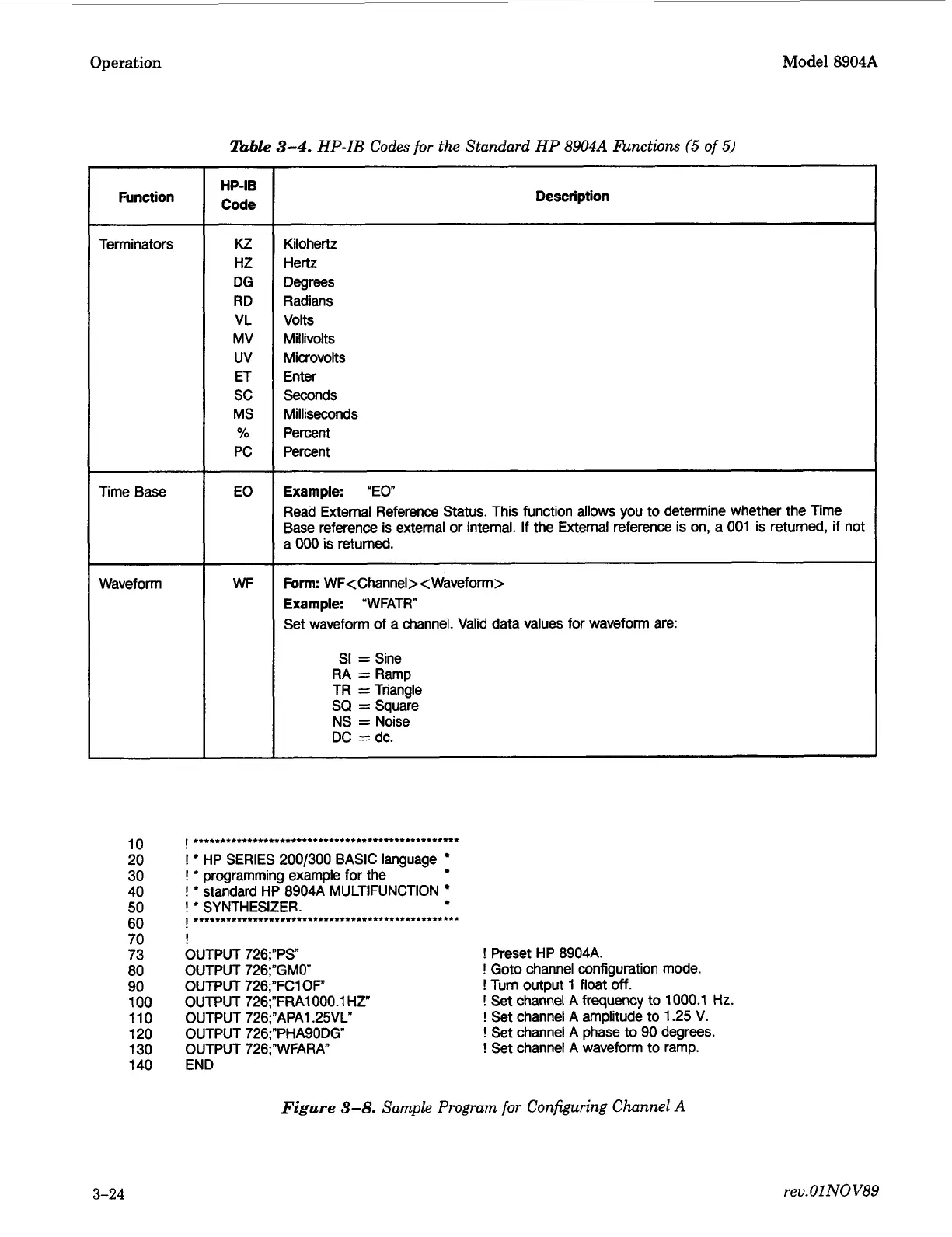

HP 8904A - Page 56

Operation Model 8904A
lbble 3-4. HP-IB Codes for the Standard HP 8904A finctwns (5 of 5)
Function
Terminators
Time Base
Waveform
10
20
30
40
50
60
70
73
80
90
100
110
120
130
140
HP-IB
Code
Kz
HZ
DG
RD
VL
MV
uv
ET
sc
MS
YO
PC
EO
WF
___~
-
Description
Kilohertz
Hertz
Degrees
Radians
Volts
Millivolts
Microvolts
Enter
Seconds
Milliseconds
Percent
Percent
Example: "EO"
Read External Reference Status. This function allows you to determine whether the Time
Base reference is external
or internal. If the External reference is on, a 001 is returned, if not
a
000 is returned.
Form: WF<Channel> < Waveform>
Example: "WFATR"
Set waveform of a channel. Valid data values for waveform are:
SI = Sine
RA
= Ramp
TR =Triangle
SQ = Square
NS
= Noise
DC
= dc.
I tt**t*ttttt****lt*******~***************n********n
! HP SERIES 200/300 BASIC language
! ' programming example for the
! * standard HP 8904A MULTIFUNCTION
! * SYNTHESIZER.
, .................................................
!
OUTPUT 726;"PS"
OUTPUT 726;"GMO"
OUTPUT 726;"FCl
OF"
OUTPUT 726;"FRAlOOO.l HZ"
OUTPUT 726;"APA1.25VL"
OUTPUT 726;"PHAgODG"
OUTPUT 726;"WFARA"
END
! Preset HP 8904A.
! Goto channel configuration mode.
! Turn output 1 float off.
! Set channel A frequency to 1000.1 Hz.
! Set channel A amplitude to 1.25 V.
! Set channel A phase to 90 degrees.
! Set channel A waveform to ramp.
Figure 3-8. Sample Program for Configuring Channel A
