Operation
Model 8904A

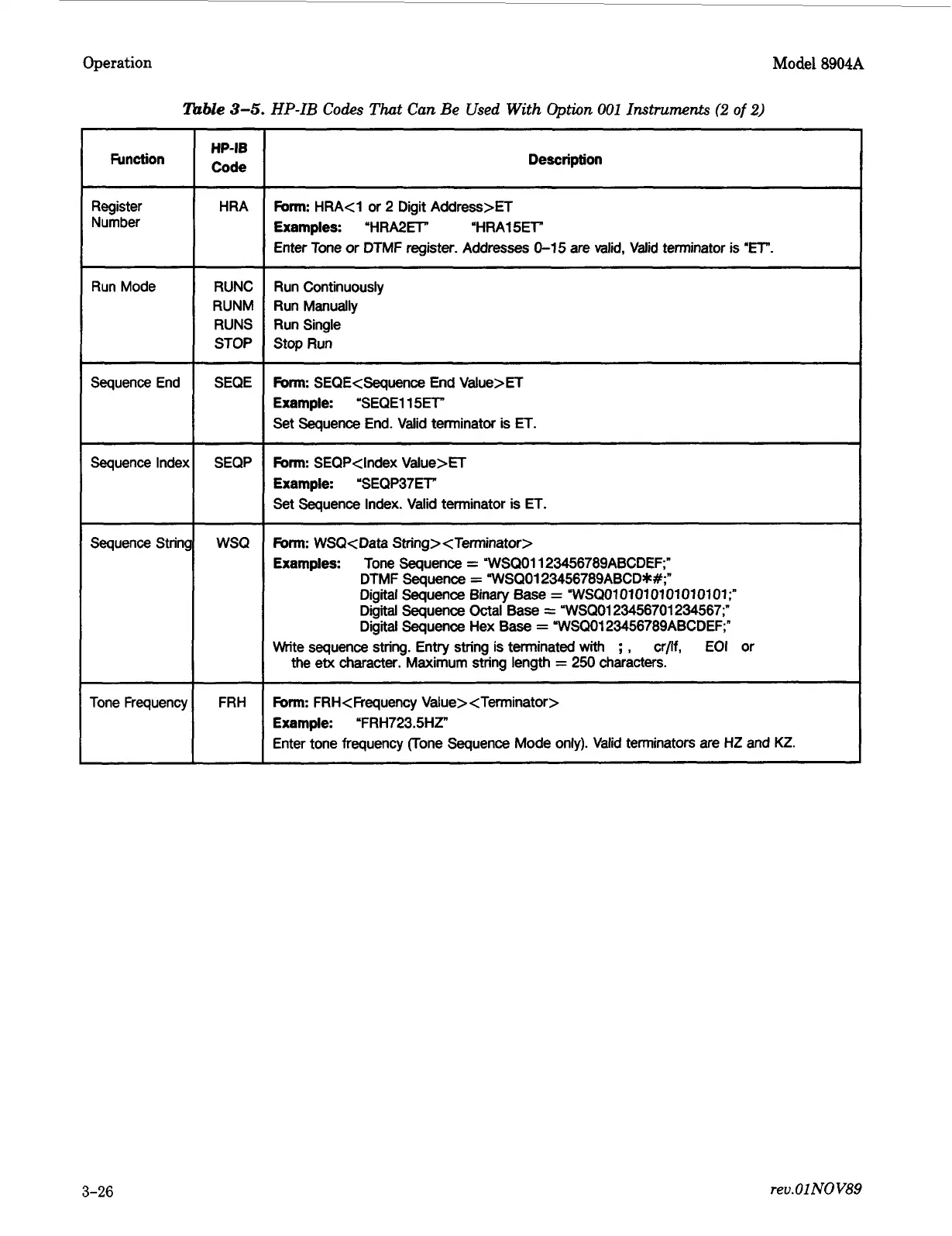

Zbble 3-5. HP-IB Codes That Can Be Used With Option 001 Instruments (2 of 2)
Function
HP-IB
Code
Register 1 HRA
Number
Run Mode
Sequence End
RUNC
RUNM
RUNS
STOP
SEQE
Tone Frequency
FRH
Description
Form: HRA4 or 2 Digit Address>ET
Examples: 'HRA2ET" "HRA15ET"
Enter Tone
or DTMF register. Addresses 0-15 are valid, Valid terminator is "ET"
Run Continuously
Run Manually
Run Single
Stop Run
Form: SEQE<Sequence End Value>ET
Example: 'SEQE115ET"
Set Sequence End. Valid terminator
is ET.
Form: SEQP<lndex Value>ET
Example: 'SEQP37ET"
Set Sequence Index. Valid terminator is ET.
Form: WSQ<Data String><Terminator>
Examples: Tone Sequence = 'WSQO1123456789ABCDEF;"
DTMF Sequence
= WSQO123456789ABCDW:
Digital Sequence Binary Base
= "WSQO1 01 01 01 01 01 01 01 ;-
Digital Sequence Octal Base = WSQ0123456701234567;"
Digital Sequence Hex Base
= WSQOl23456789ABCDEF;"
Write sequence string. Entry string is terminated with ; , cr/lf, EO1 or
the etx character. Maximum string length = 250 characters.
Form: FRH<Frequency Value><Terminator>
Example: 'FRH723.5HZ"
Enter tone frequency (Tone Sequence Mode only). Valid terminators are HZ and
KZ.
