Getting acquainted
Operating Controls and Indications
1-4

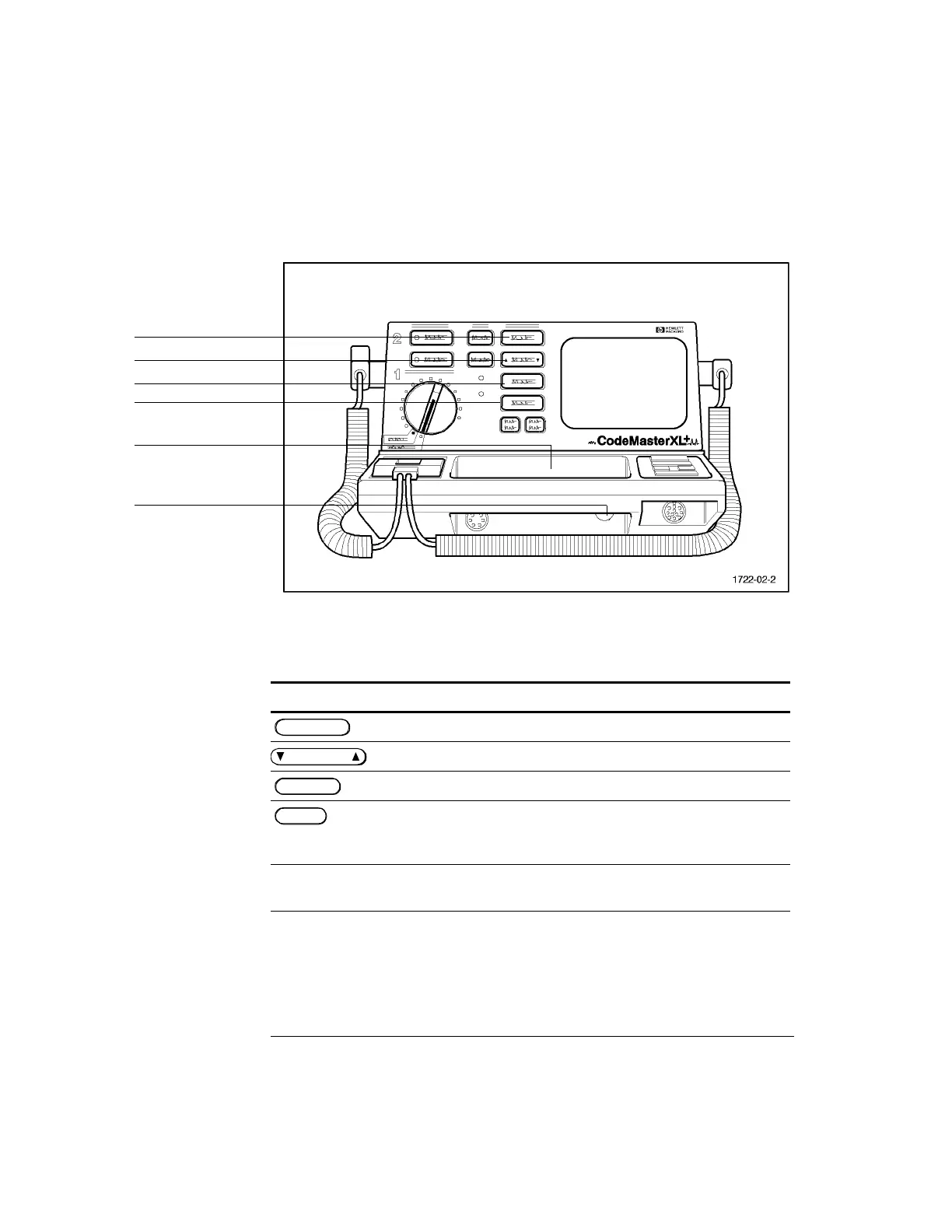

Figure 1-4
Monitor Operating Controls
Table 1-3 Monitor Operating Controls
Control Description
Selects an ECG source to monitor.
Changes displayed ECG size.
Controls HR Alarms.
Prints an Event Summary record. The message "ES" is printed at the
top of the ECG strip when you print the Event Summary record. The
recorder must be off to print an Event Summary with this key.
QRS Beeper Vol-
ume
Controls volume of QRS beeper.
ECG Output Provides analog 1V/mV output for external monitoring.
Lead Select button
ECG Size button
HR Alarm button
Review button
QRS Beeper Volume
ECG Output
