HP CodeMaster XL+ M1722A - Pacer Operating Controls

Getting acquainted
Operating Controls and Indications
1-5

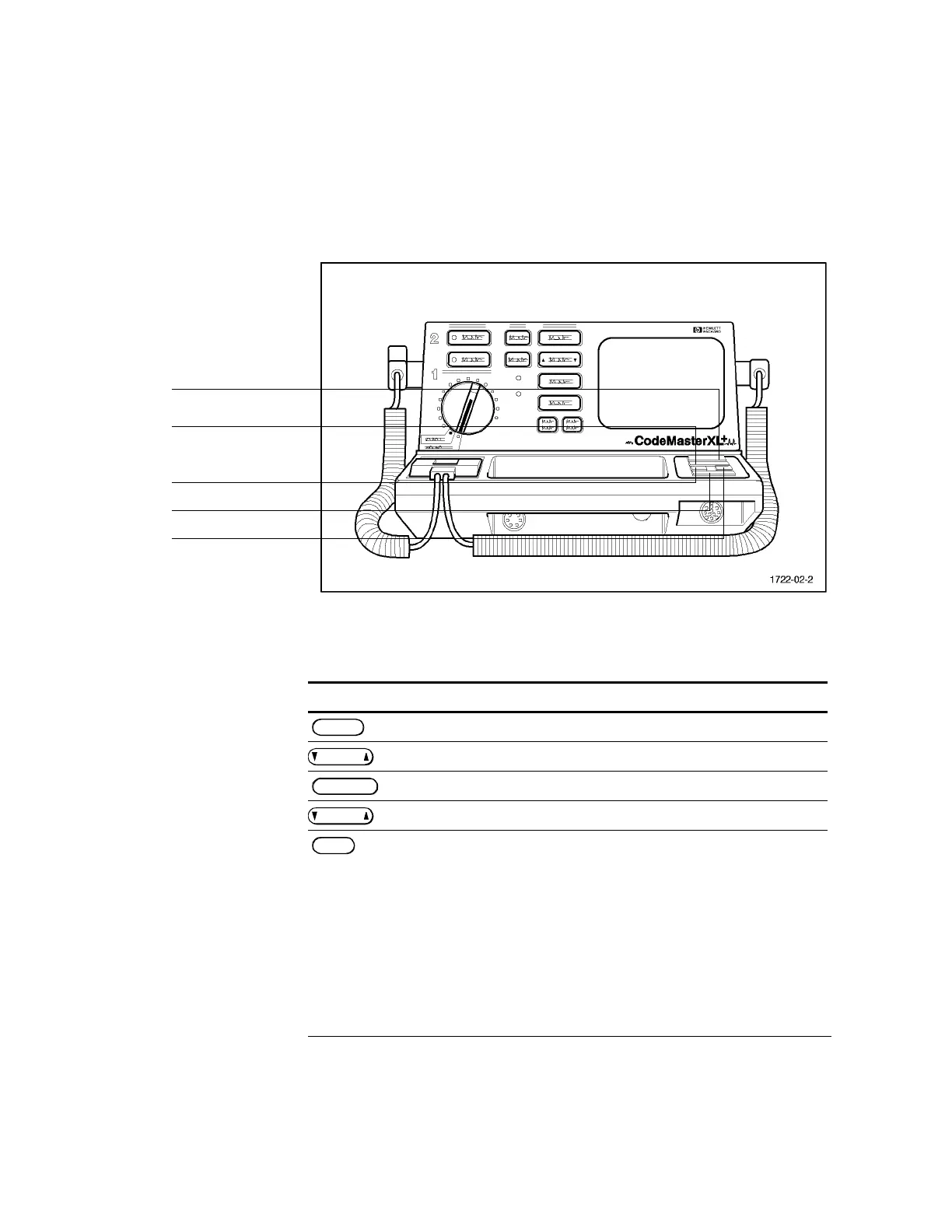

Figure 1-5
Pacer Operating Controls
Table 1-4 Pacer Operating Controls
Control Description
Turns pacer on or off.
Adjusts pacer rate (ppm) up or down.
Starts and stops pacing.
Adjusts pacer output current (mA) up or down.
Changes between fixed and demand pacing modes.
Start/Stop button
Output button
Mode button
Rate button
Pacer On button
Pacer
Rate
Start/
Output
Mode
