Getting acquainted
Operating Controls and Indications
1-7
Figure 1-7
Indicator Lights

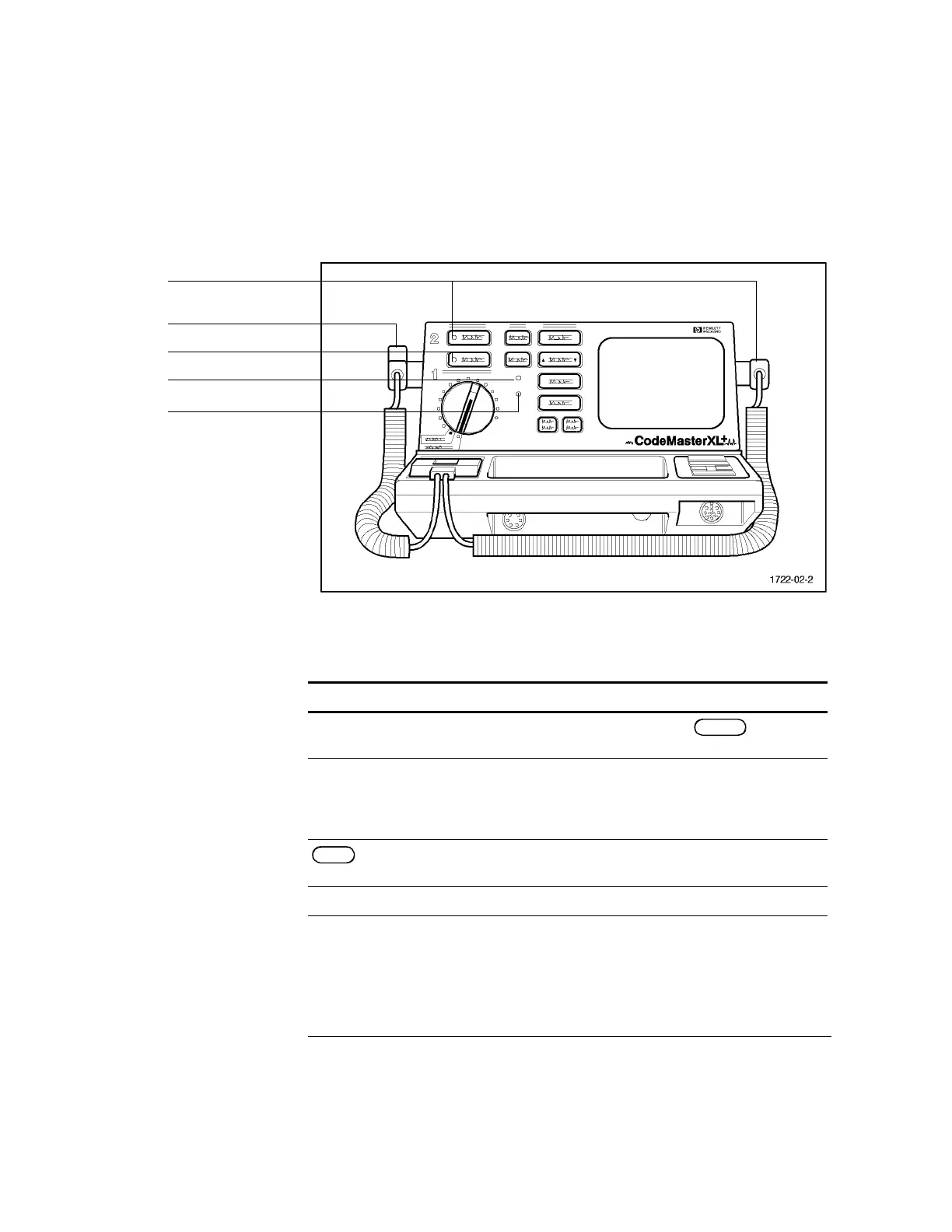

Table 1-6 Indicator Lights
Indicator Description
Charge Done Indicates that unit is charged and ready to use. lights on
key panel and on Apex paddle.
Paddle Contact
Indicator (PCI)
on Sternum pad-
dle
IIndicates how well paddles contact patient.
Light Indicates that unit is in synchronized shock mode as opposed to
defibrillator mode. Flashes off each time an R-wave is detected.
AC Power Indicates that unit is plugged in to AC power.
Battery Charge Indicates that the unit is plugged into AC power and that the battery
is being charged.
Charge Done
Paddle Contact Indicator
Sync Light
AC Power
Battery Charge
