HP Compaq dc7800 - Page 188

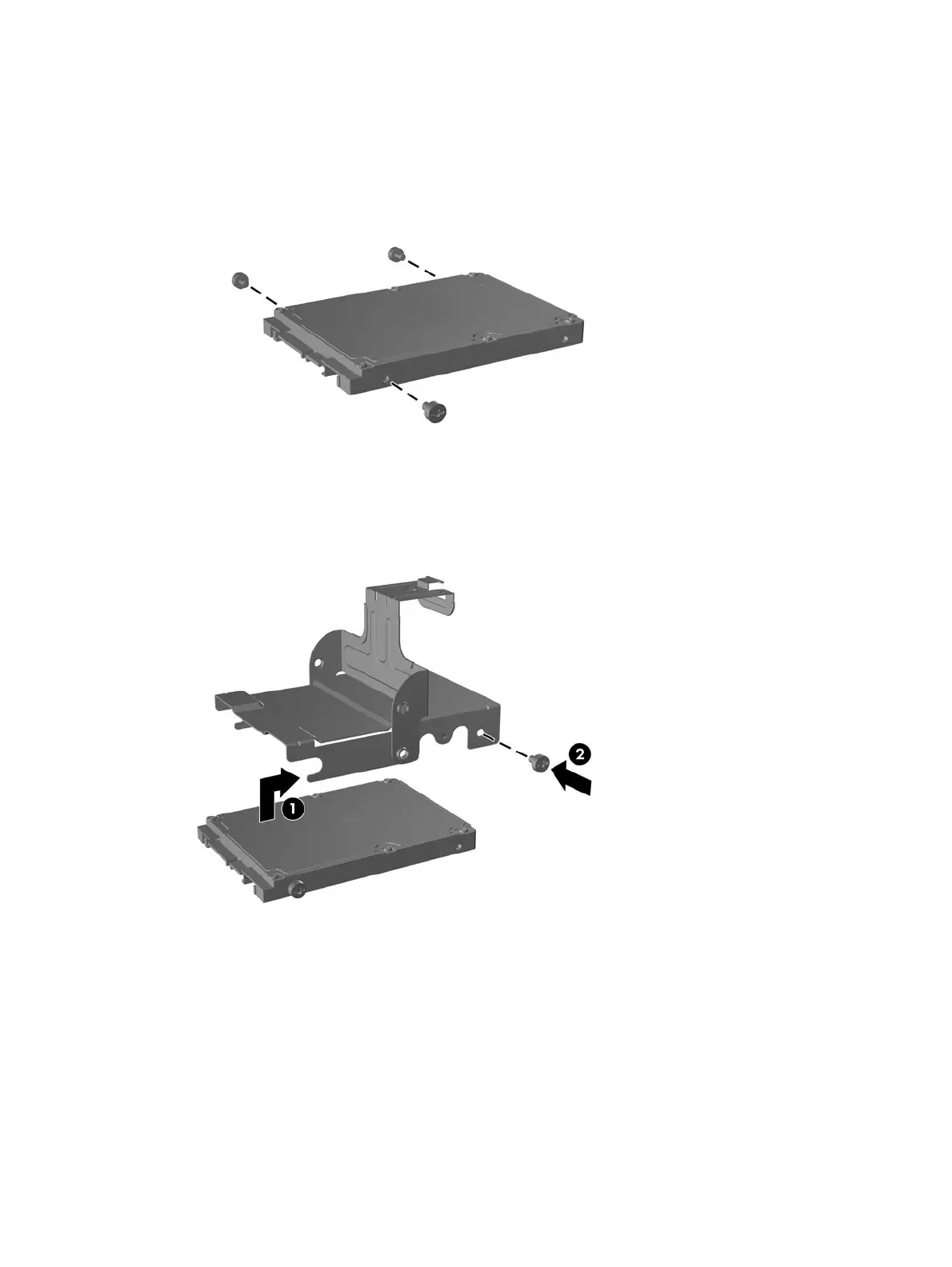

8. Transfer the three remaining guide screws (two on the right and one on the rear left) from the old
drive to the new drive.
9. Align the guide screws with the slots on the carrier and slide the new hard drive into the carrier (1),
then replace the guide screw on the front left of the carrier to secure the drive in the carrier (2).
176 Chapter 9 Removal and Replacement Procedures Ultra-Slim Desktop (USDT) Chassis
