15. Disconnect the display cable from the display panel by pressing in on the tabs (1) on the side of
the connector, and pulling the cable from the connector (2).

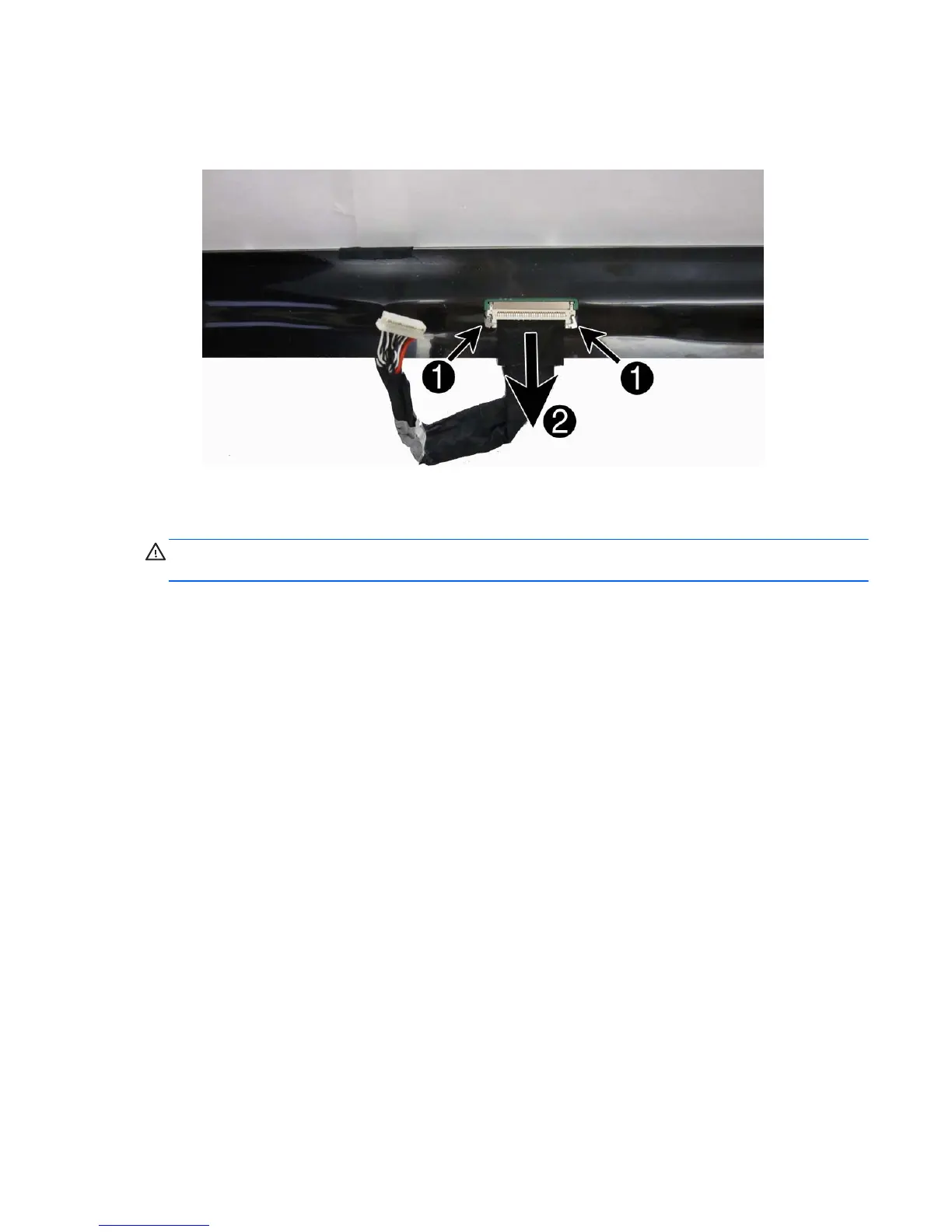

Figure 7-84 Disconnecting the display cable from the display panel
Be sure to correctly position the jumpers on the converter board for the installed display panel, as
follows:
CAUTION: Incorrect jumper placement can result in damage to the converter board and display
panel.
●
21.5-inch panel
◦
AUO panel: pins (1)(2)
◦
CMI panel: pins (3)(4)
◦
LG panel: pins (7)(8)
●
23.0-inch panel
◦
CMI panel: pins (5)(6)
◦
LG panel: pins (9)(10)
◦
Samsung panel: pins (11)(12)
Display panel
115
