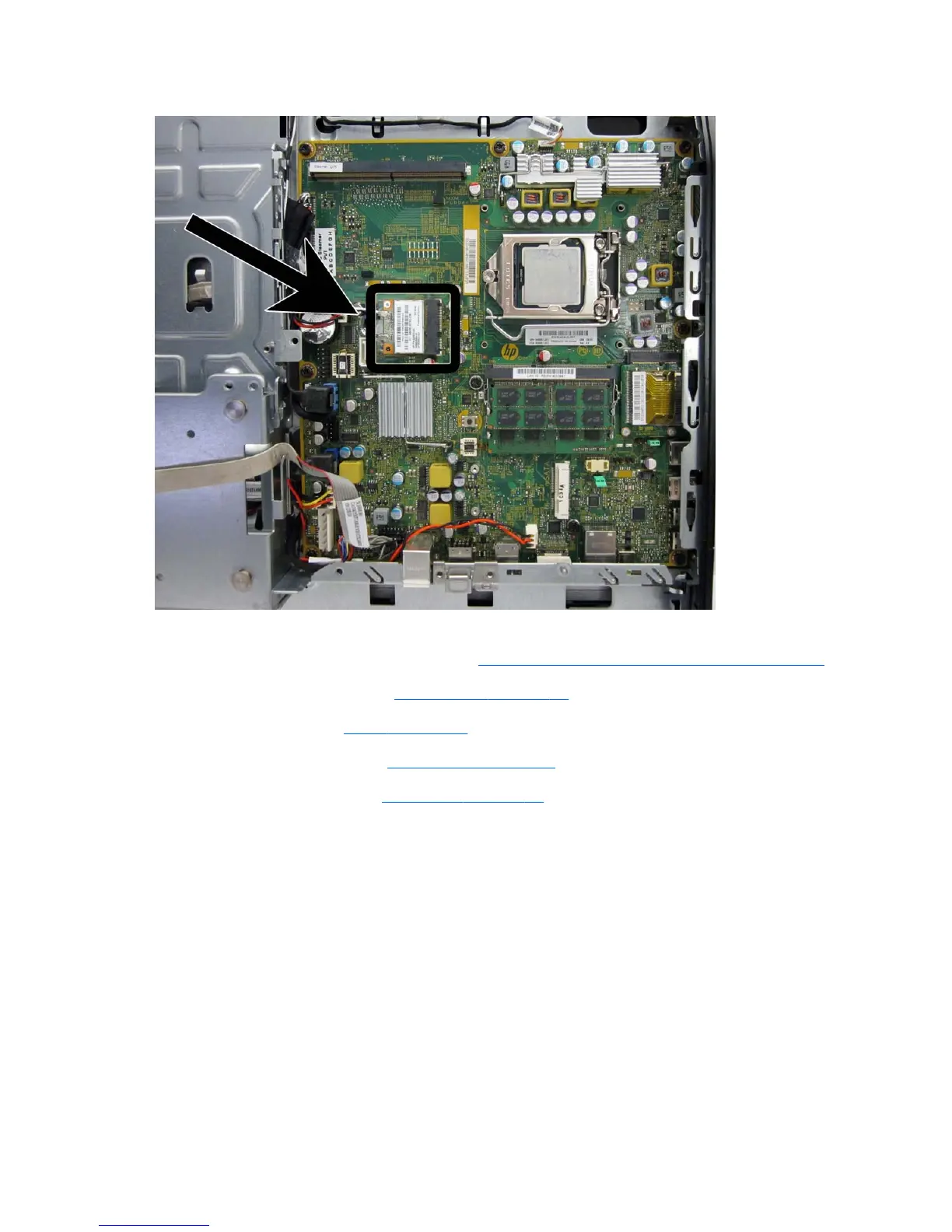

Figure 7-51 WLAN module location
To remove the WLAN module:
1. Prepare the computer for disassembly (see
Preparing to disassemble the computer on page 40).
2. Remove the access panel (see
Access panel on page 45).
3. Remove the stand (see
Stand on page 48).
4. Remove the lower panel (see
Lower panel on page 50).
5. Remove the metal plate (see
Metal plate on page 51).
6. Disconnect the antenna cables from the module (1).
