7. Remove the Phillips screw (2) that secures the module to the computer.

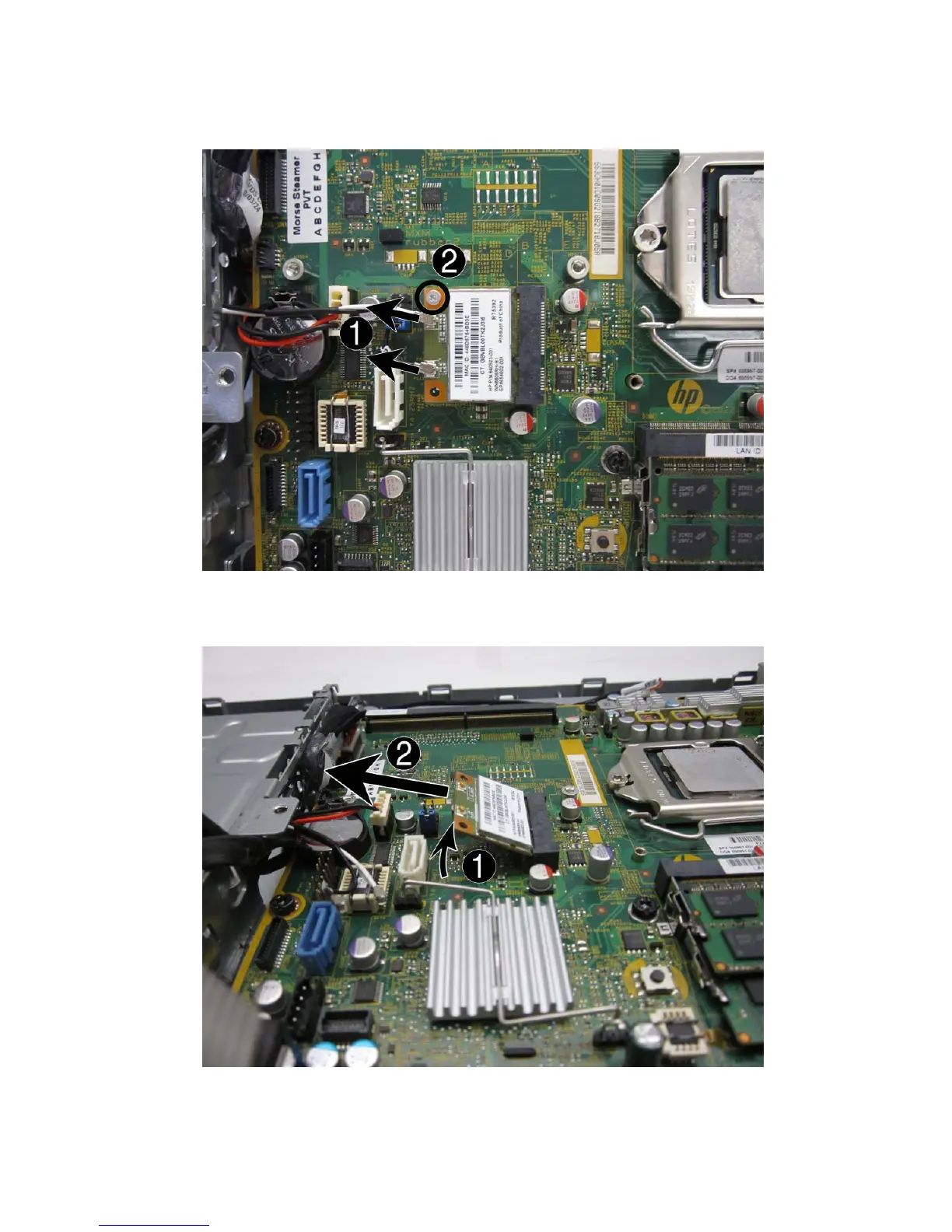

Figure 7-52 Removing the WLAN module screw and antennas
8. Lift the module to a 45-degree angle (1), and then pull it away to remove it from the socket (2).
Figure 7-53 Removing the WLAN module
To install the WLAN module, reverse the removal procedures.
WLAN module
83
