Removal and Replacement Procedures
8. Press the tab on the side of the optical device ejector (1).
9. Slide the optical device ejector into the slot in the chassis (2) until the tab clicks in to
place.

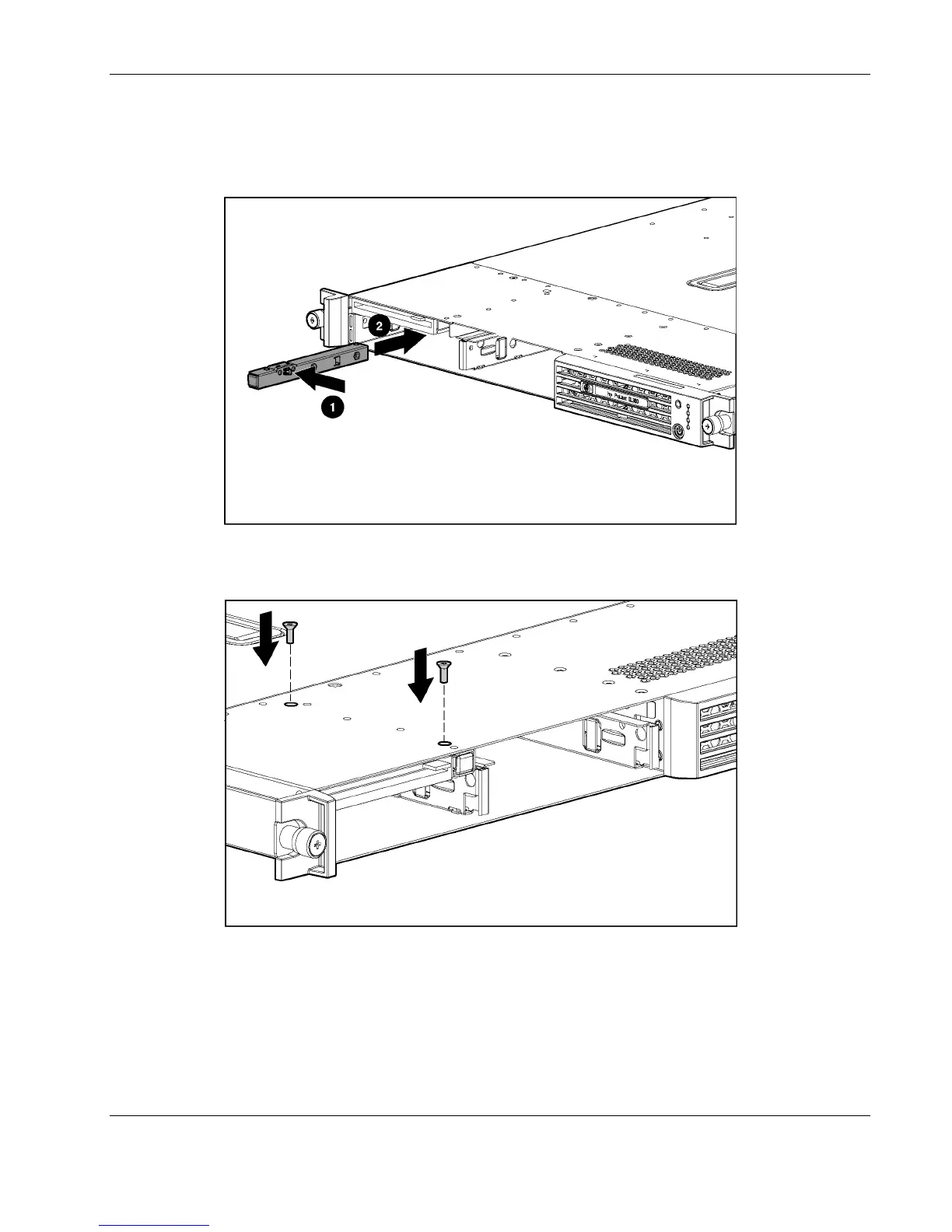

Figure 2-15: Inserting the optical device ejector into the chassis
10. Replace the screws securing the optical device ejector to the chassis.
Figure 2-16: Replacing the optical device ejector screws
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 2-17
