HP DL360 Maintenance And Service Guide

Removal and Replacement Procedures
6. Disconnect the optical device/diskette drive interface board power cable (1).
7. Remove the optical device/diskette drive interface board power cable from the clip on the
side of the I/O fan assembly (2).

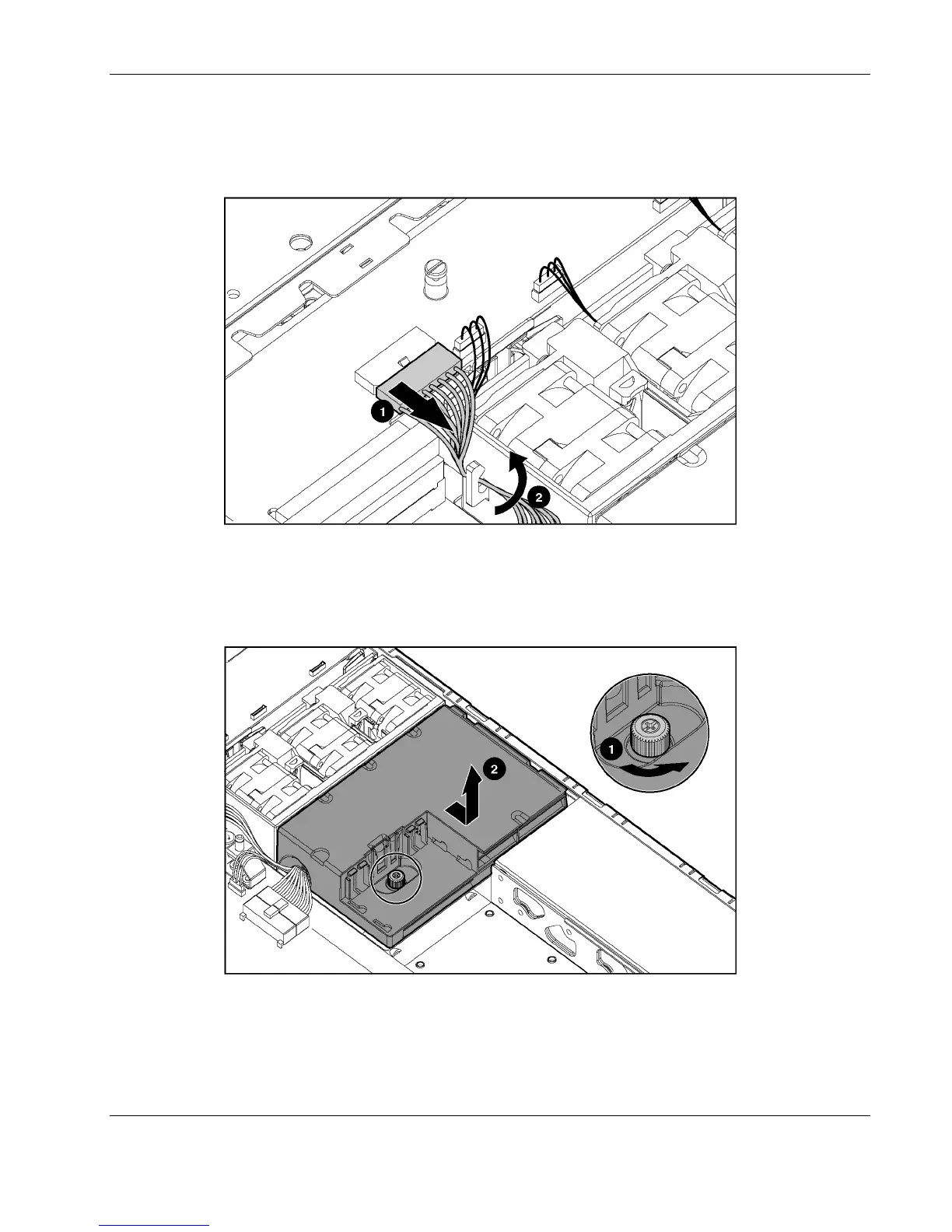

Figure 2-29: Disconnecting the optical device/diskette drive
interface board power cable
8. Loosen the thumbscrew securing the power converter module to the chassis (1).
9. Slide the power converter module toward the rear of the chassis and remove it (2).
Figure 2-30: Removing the power converter module from the
chassis
HP ProLiant DL360 Generation 3 Server Maintenance and Service Guide 2-27
