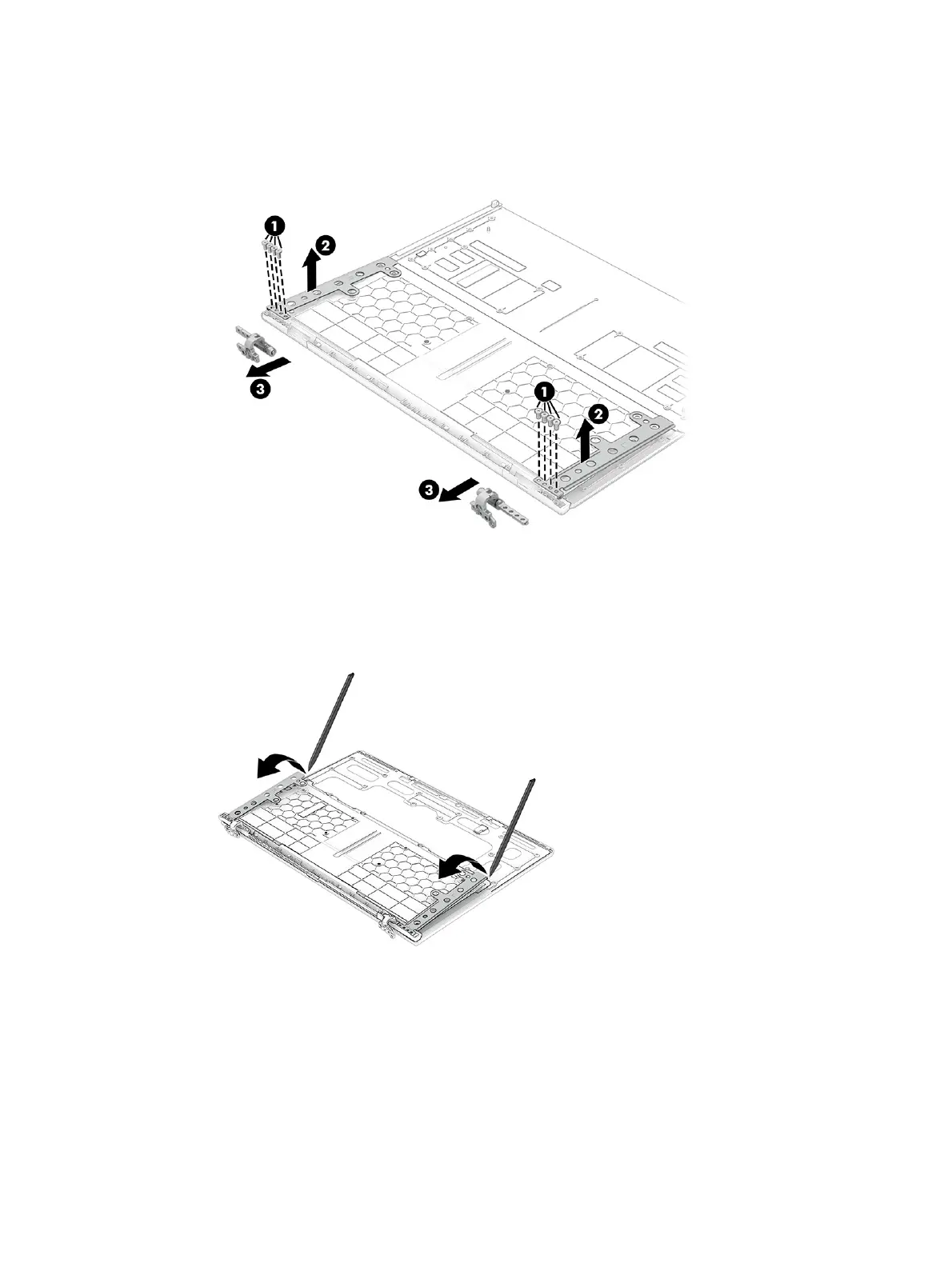

g. Lift the plates (2), and then pull the hinges out from under the plates (3).
The hinges are available as spare part number N22935-001 for FHD displays and N26147-001 for
OLED displays.
2. To remove the hinge arm support brackets, use a tool to release the brackets from the computer. The
brackets are secured with adhesive.
Hinge arm support brackets are available in the Bracket Kit as spare part number N22931-001.
Reverse this procedure to install the display hinges.
76
Chapter 5Removal and replacement procedures for authorized service provider parts
