HP Dragonfly Folio

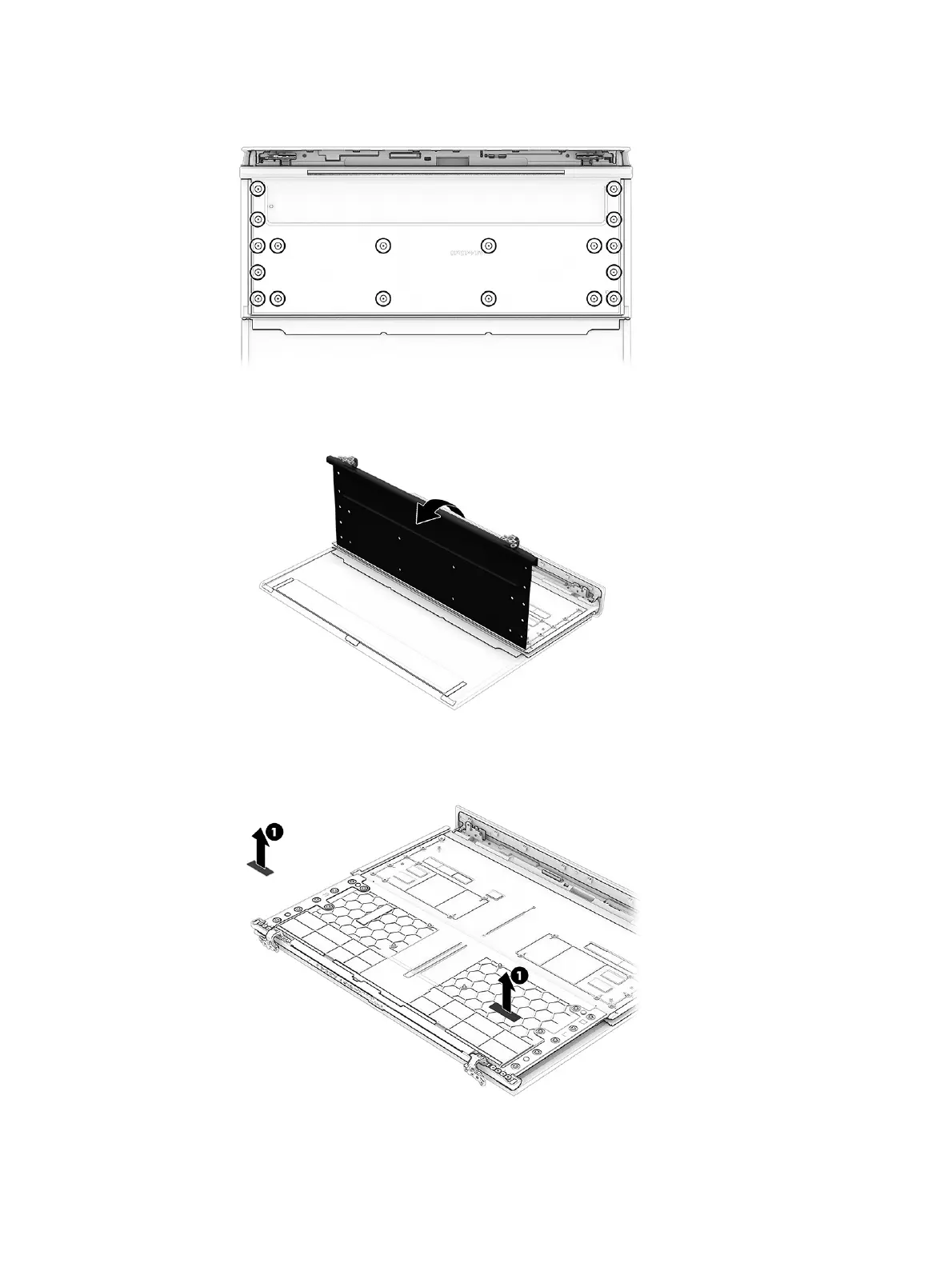

c. Remove the 18 Phillips 1.4 × 1.5 screws that are located under the removed Mylar.
d. Rotate the enclosure over to access the hinges.
e. Remove the Mylar from the screws on both hinges (1).
f. Remove the four Phillips 2.0 × 3.0 screws (1) from each hinge.
Display hinges
75
