1. Replac
ement SAS cable
3. Connec
t replacement SAS cable to disk bay
2. Connect replacement SAS cable to host SAS
HBA
4. SAS connector to tape drive

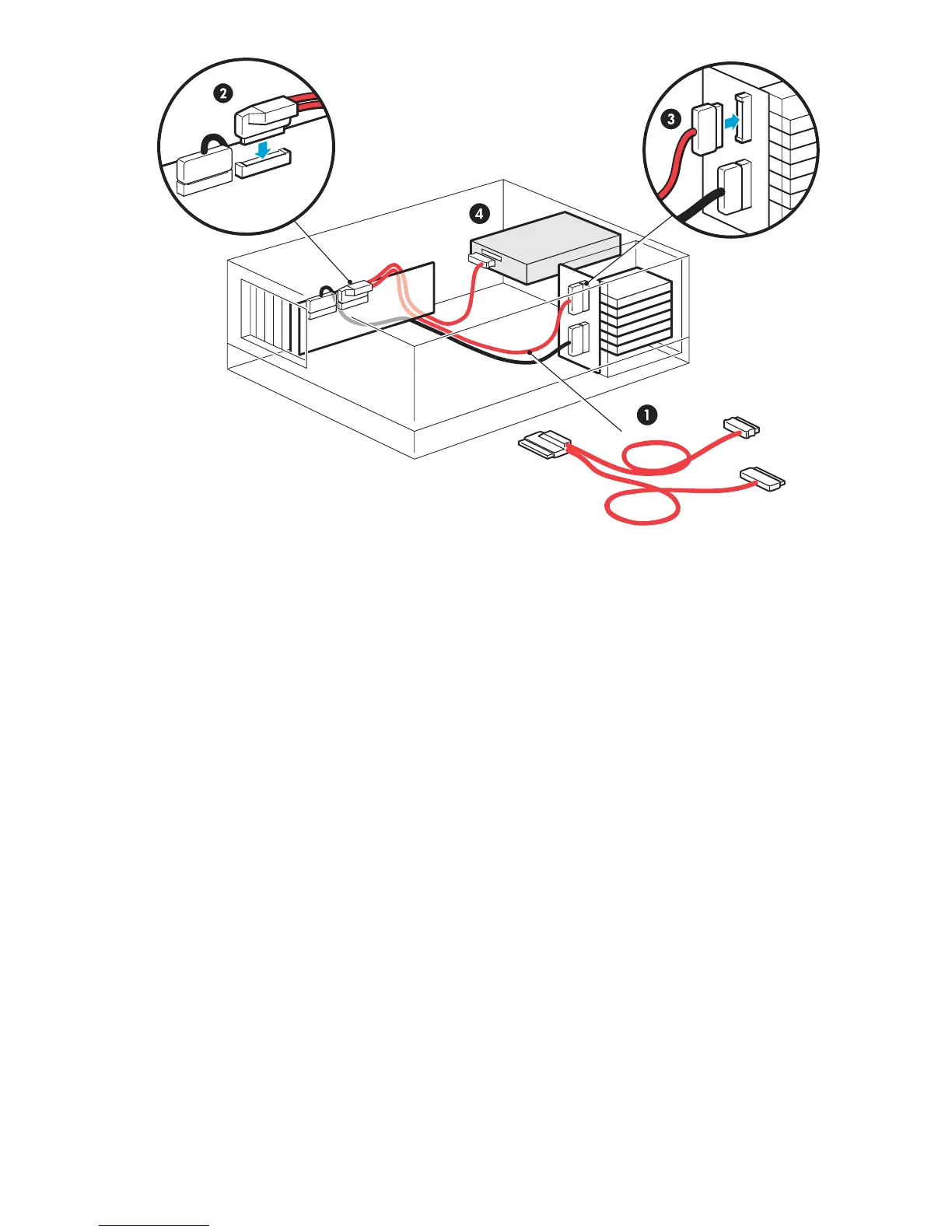

Figure 11 Cable routing with replacement SAS cable
5. Attach the SAS cable to the SAS connector on the tape drive and connect a spare power cord
from the server’s internal p ower supply to the power connector on the tape drive, as shown in
Figure 12 on page 31.
