HP DW017B - StorageWorks Ultrium 448 Tape Drive - Cabling to a New HBA

2. Connect the SAS cable supplied with the tape drive to the new HBA.
1. SAS cable supplied with tape drive
4. New SAS HBA
2. Connect SAS cable to new HBA
5. Connect
or for tape drive
3. Unused connector on SAS cable

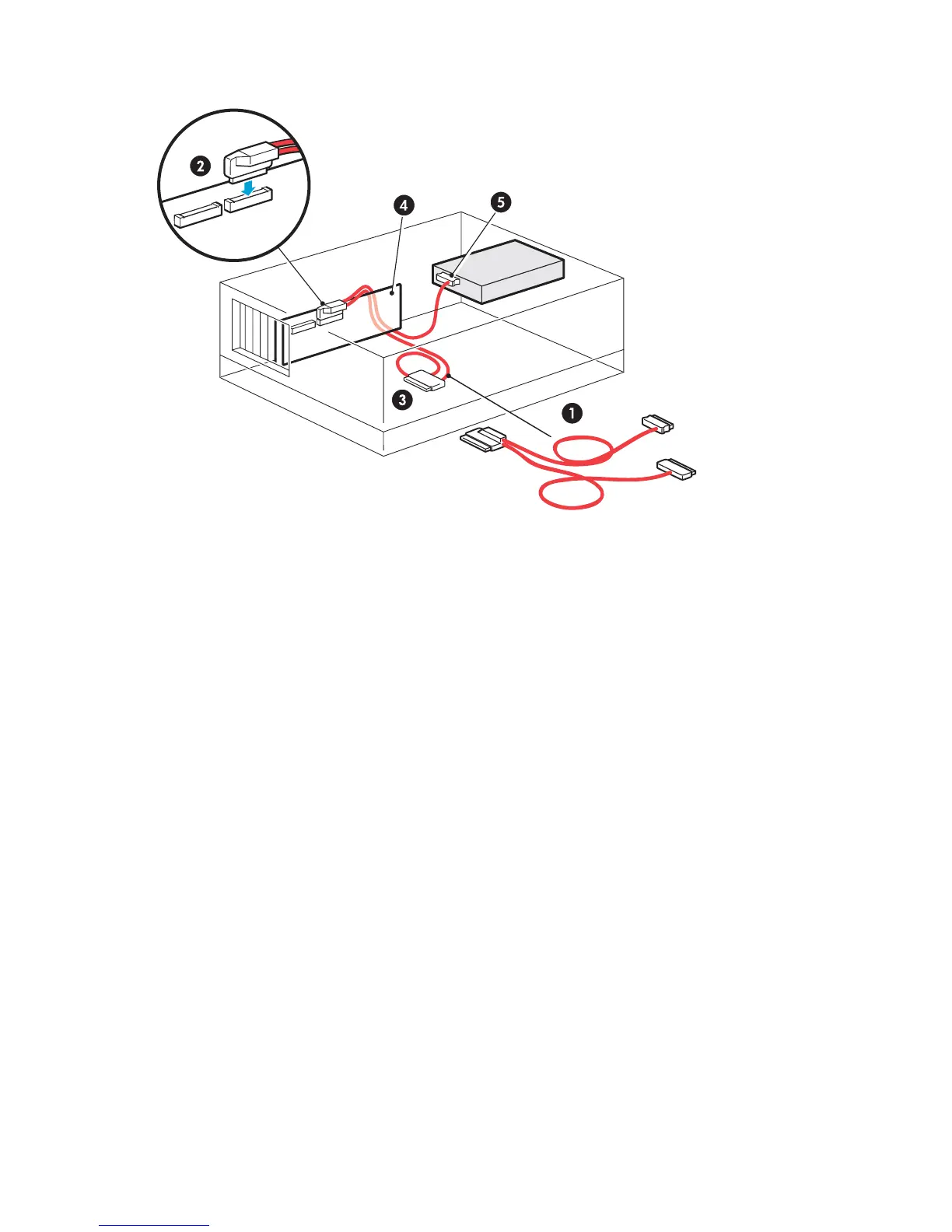

Figure 14 Cabling to a new HBA
3. Connect the other end of the SAS cable to the tape drive and connect a spare power cord from the
server’s internal power supply to the power co nnector on the tape drive.
32
Installing an internal Ultrium tape drive
