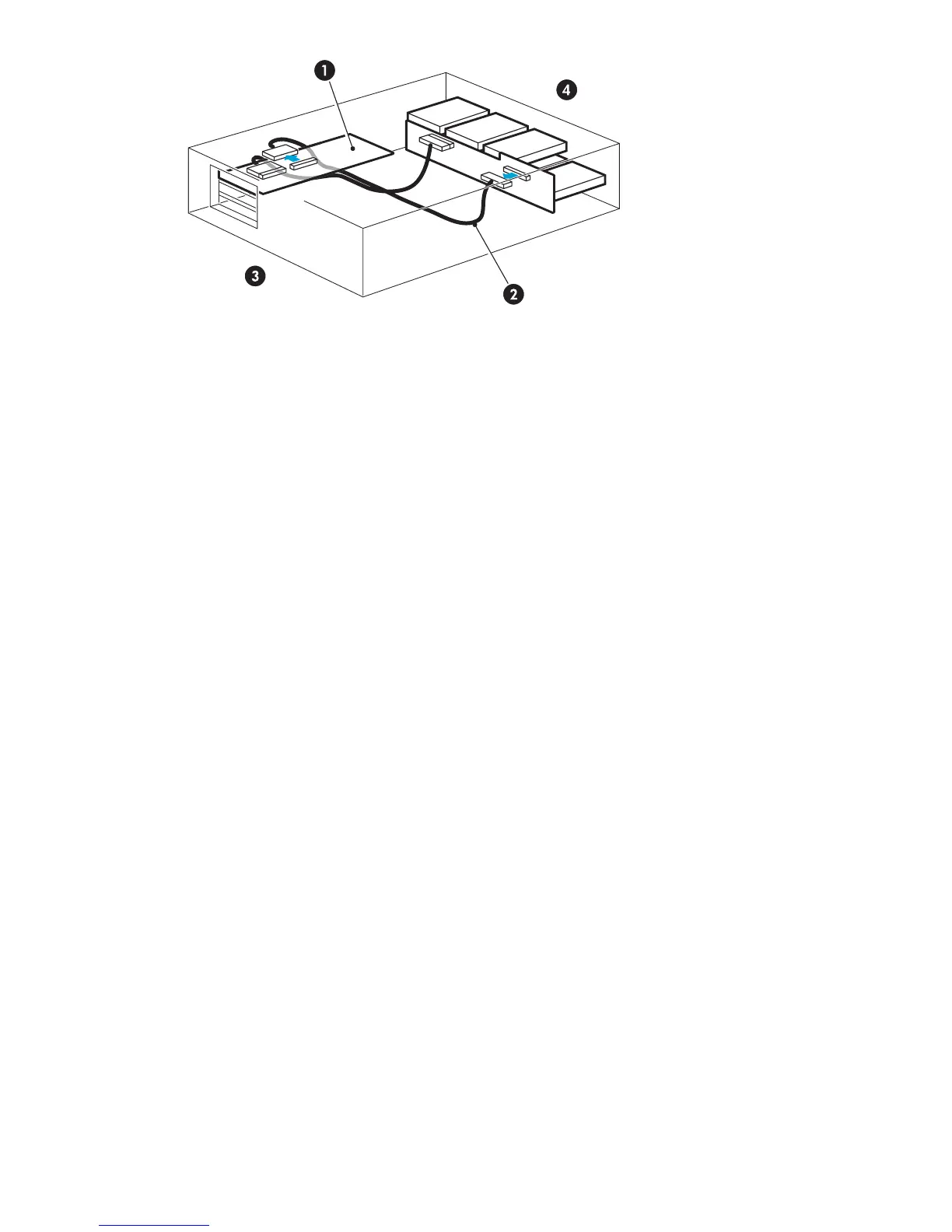

1. Host SAS controller (HBA)
3. Rear of server
2. Cabletoberemoved
4. Front of server
Figure 22 Removing existing SAS cable
4. Remove a b lank PCI slot cover on the rear panel of the server. This must be wide enough to
accommodate the external tape drive connector on the SAS cable.
5. Feed the external tape drive connector and cable through the emp ty slot from the inside of the server.
Ultrium half-height SAS Tape Drives
43
