14

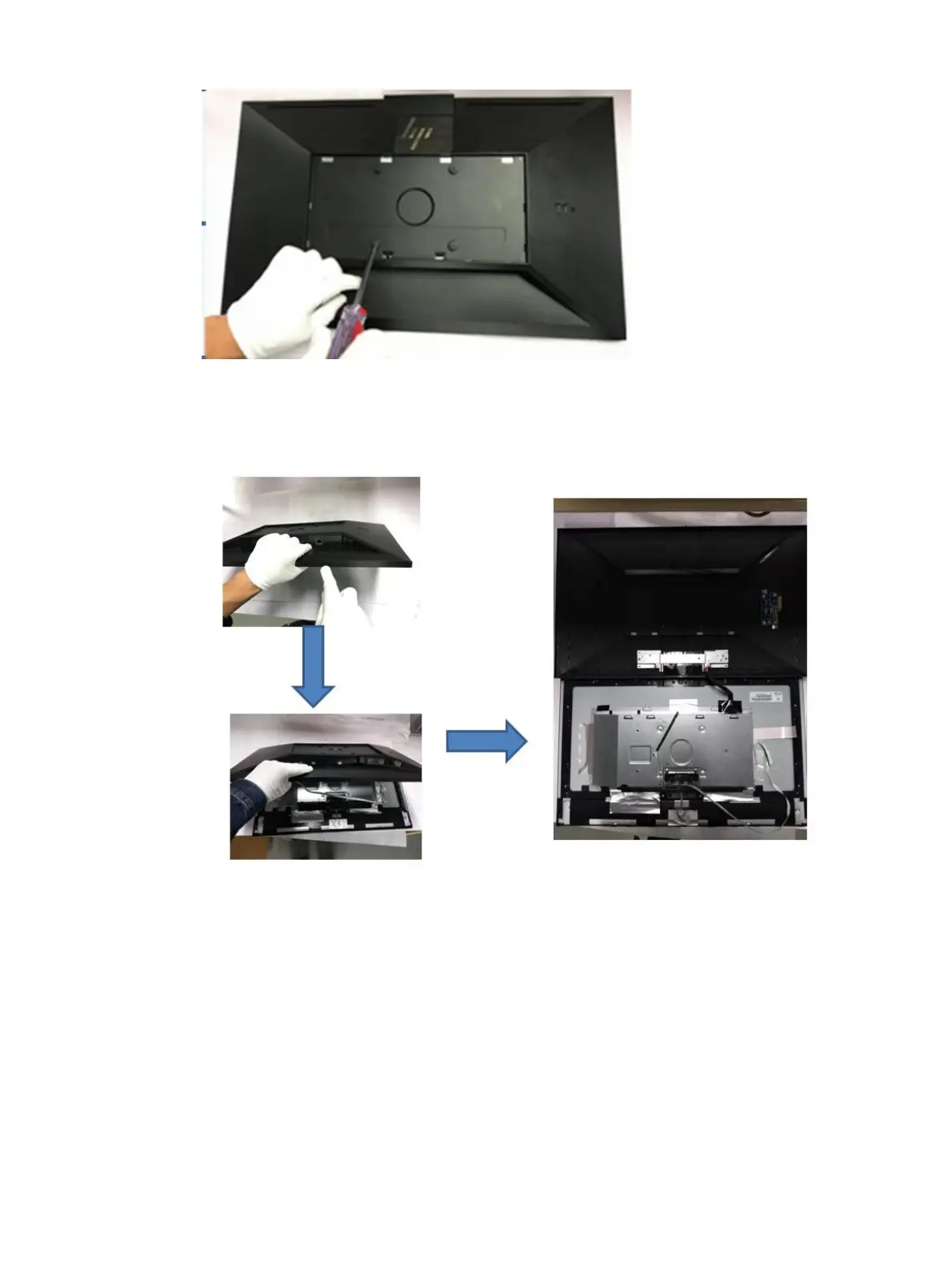

Remove the VESA-screws
2) Disassemble Rear-cover: Use disassembling tool to separate bucket from monitor (starting from the
disassembling hole as shown). Watch out the cable of the Keypad/camera/USB.
Disassemble Rear-Cover
3) Disassemble rear-cover assembly: use screwdriver to disassemble side USB and Webcam Assy
