HP E24mv G4 - Illustrated Parts Catalog

10

3 Illustrated parts catalog

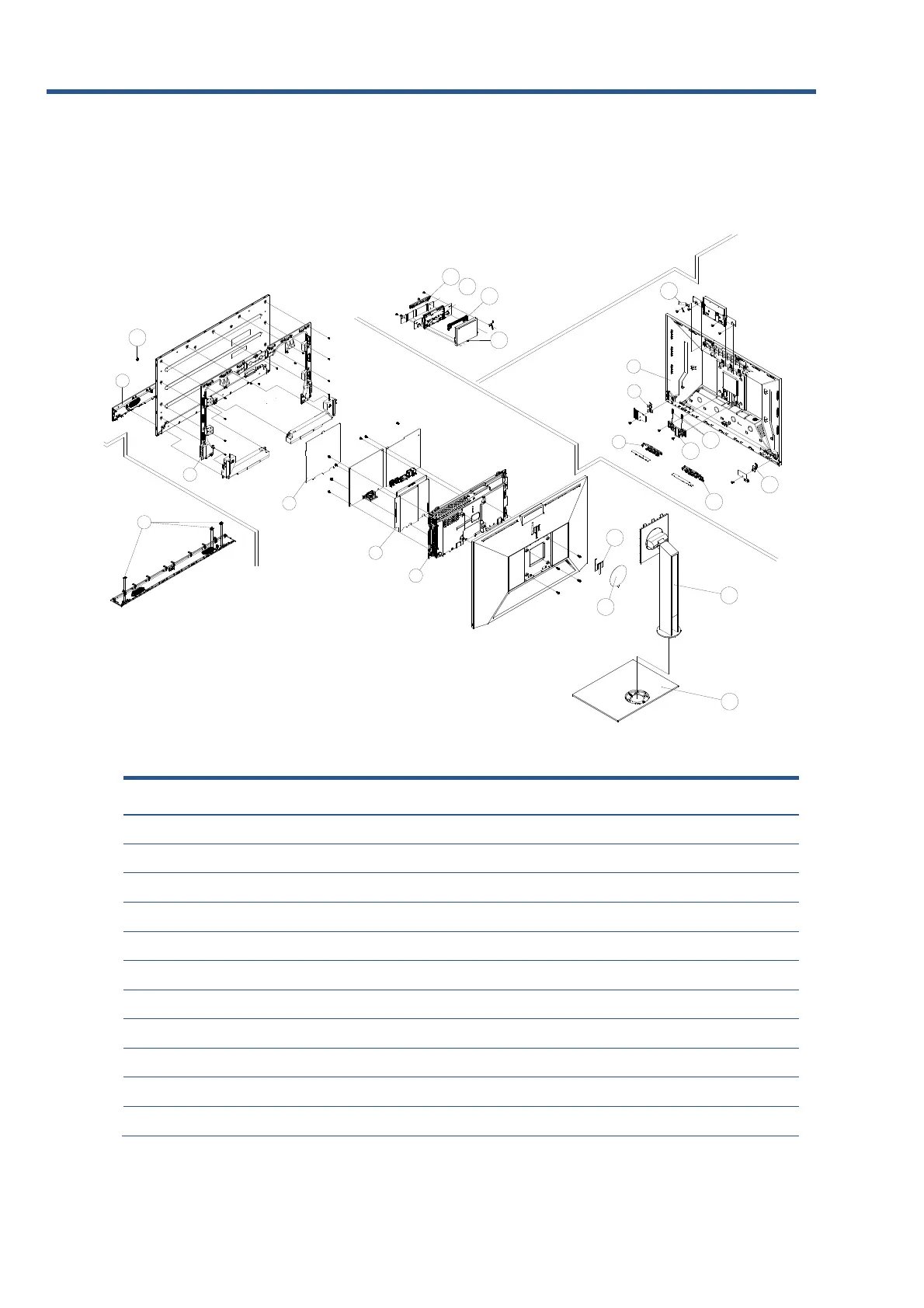

To identify the monitor major components, use this illustration and table.
7
8
9
10
11
12
13
14
S6
S5
S5
S6
S6
S6
S6
S6
1
3
4
5
6
18
19
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S1
S2
S2
S2
S2
S2
S2
S3
S4
S4
S4
S4
21
20
2
22
16
17
23
15
Item Description Qty
1 DECO_BEZEL NA 1
2 LENS_POWER 3
3 MIDDLE_FRAME 1
4 INSULATING SHEET 1
5 INSULATING SHEET 1
6 MAINFRAME 1
7 REAR_COVER 1
8 SHIELD_USB 1
9 KEY_FUNCTION 1
10 KEY_POWER 1
11 SHIELD_AUDIO 1
