HP E24mv G4 - USB 3.0 B Connector Repair; USB 3.0 A Connector Repair

22

USB 3.0 B connector CN106

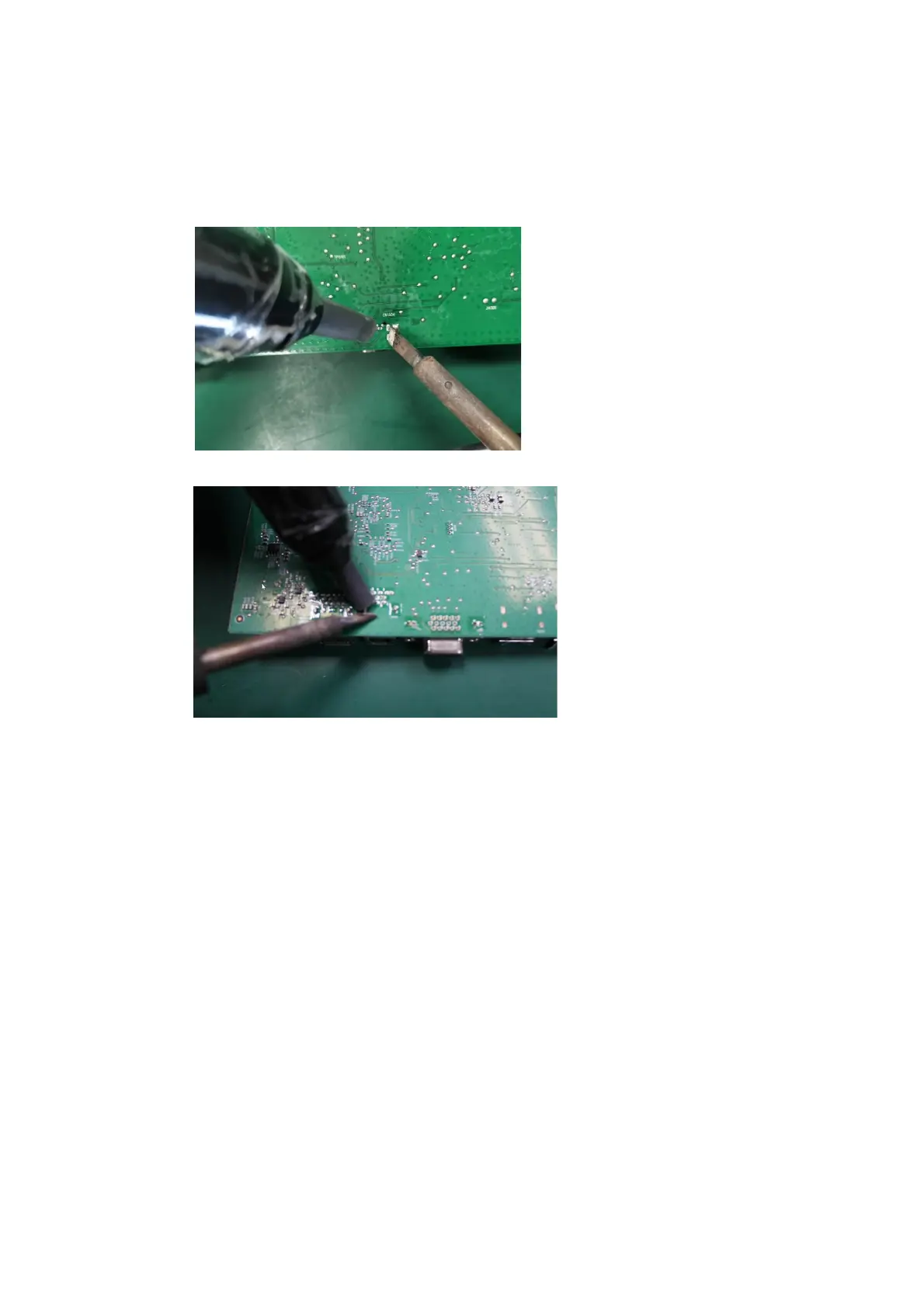

Repair the USB connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN106 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
USB 3.0 A connector CN103
Repair the USB connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
