HP E24mv G4 - D-SUB Connector Repair



21

2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN502 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
D-SUB connector CN101

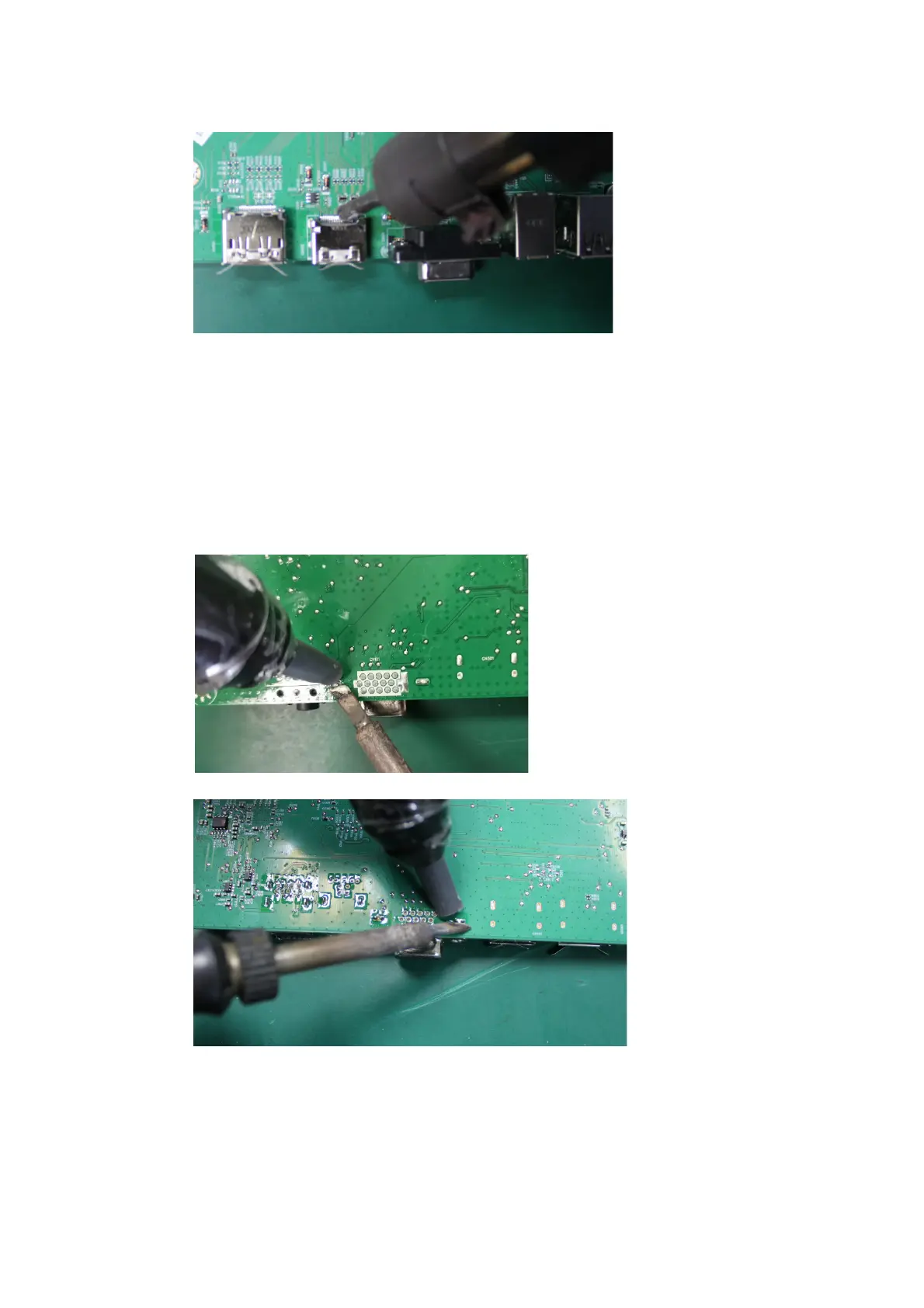

Repair the D-SUB connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN101 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
