23

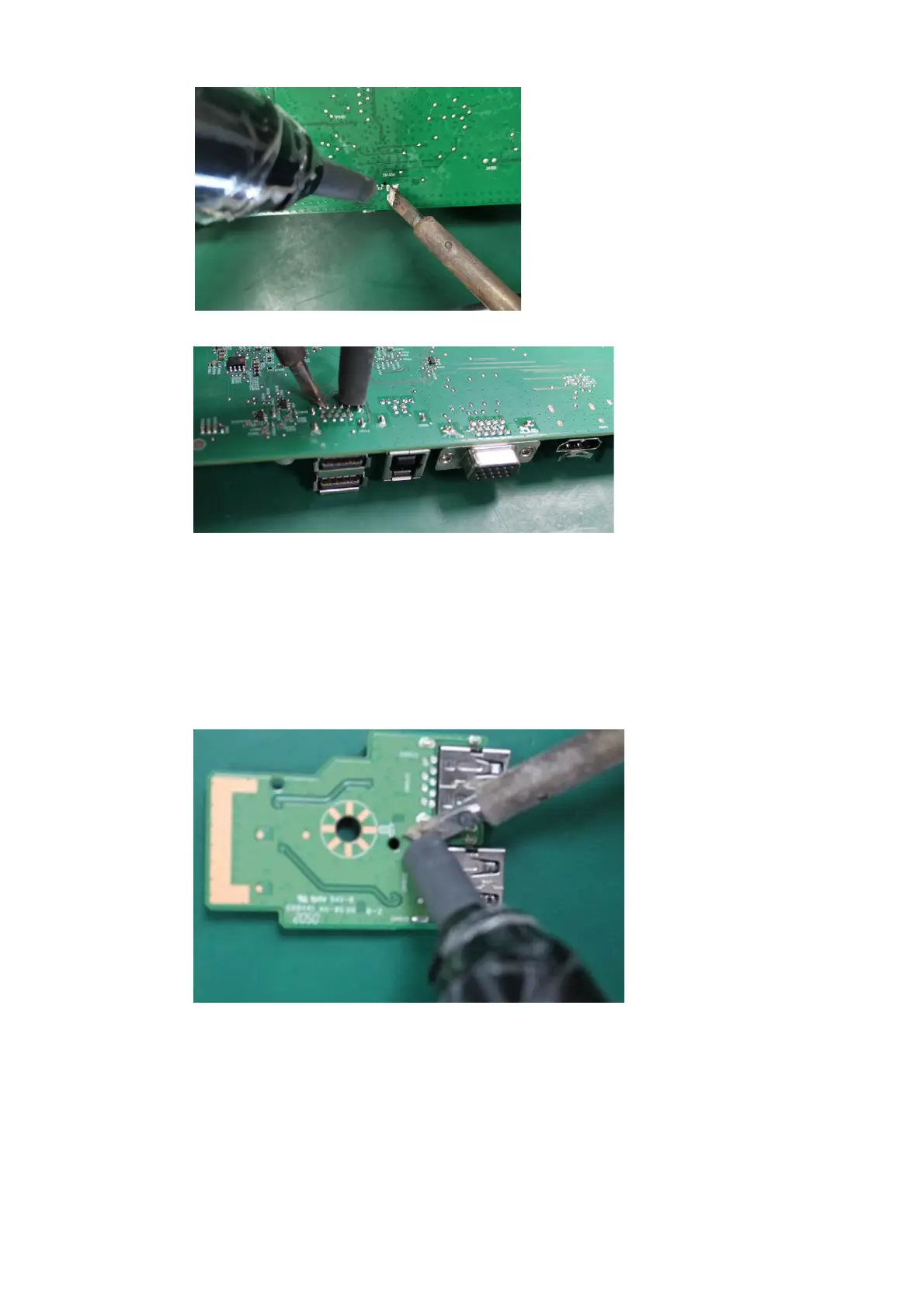

2) Use a hot air gun to melt the solder on the pins.
3) Lift the CN103 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.
USB 3.0A connector CN1032/CN1033
Repair the USB connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
