14

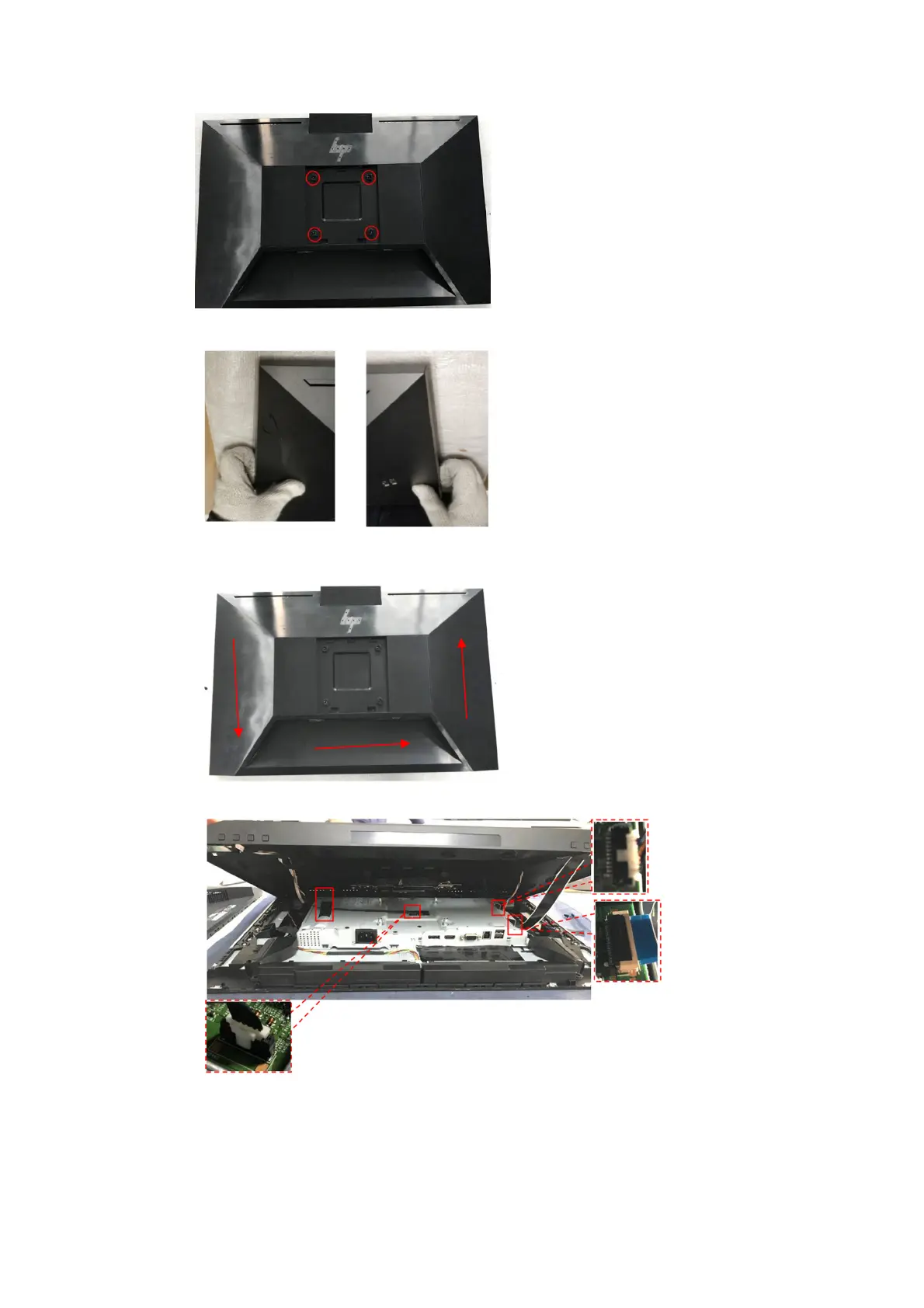

1) Remove four screw from the rear case.
2) Use your fingers to split the left and right sides apart between the middle frame and rear case.
3) Insert the scraper bar tool into the gap between the middle frame and rear case, and then rotate.
The hook opens. Repeat the steps.
4) Disassemble the Rear Cover.
