Before repairing connectors, follow these steps:
▲ Prepare the monitor for disassembly. See Preparation for disassembly on page 13.
IMPORTANT:
• Repair Condition: Connector repair is only for out of warranty.
• Repairing must operate by professional repairers (Note) in repair center, not applicable for end
user.
• Electrostatic protection is required when component replacement is required.
• The monitor meets ROHS, please use Lead-free solder wire for soldering.
• If Connector need to replace, must check specification and part number whether match the BOM
and location.
• If connector need to replace, please insert new parts carefully because the near pin may cause
short circuit by inappropriate operate.
• DO NOT allow any liquid on the board. Water and moisture may cause short-circuit to the
electronic components and lead to malfunctions.
• The fusion point of Lead-Free solder is requested. Repairing with conventional lead wire may
cause damage.
• Work quickly to avoid overheating the circuit board as soon as you confirm the steady soldering
condition.
• Keep the soldering iron tip clean and well tinned and when replacing parts.
• A close inspection of the circuit board revealed look in good condition.
• After repaired, must connect source to each port to check Main board function is ordinary.
Note: (The requirement of professional repairers’ regulation by ERP lot5)
1) The professional repairer has the technical competence to repair electronic displays and complies
with the applicable regulations for repairers of electrical equipment in the Member States where it
operates. Reference to an official registration system as professional repairer, where such system
exists in the Member States concerned, shall be accepted as proof of compliance with this point.
2) The professional repairer is covered by insurance covering liabilities resulting from its activity,
regardless of whether this is required by the Member State.
CN1033
CN1032

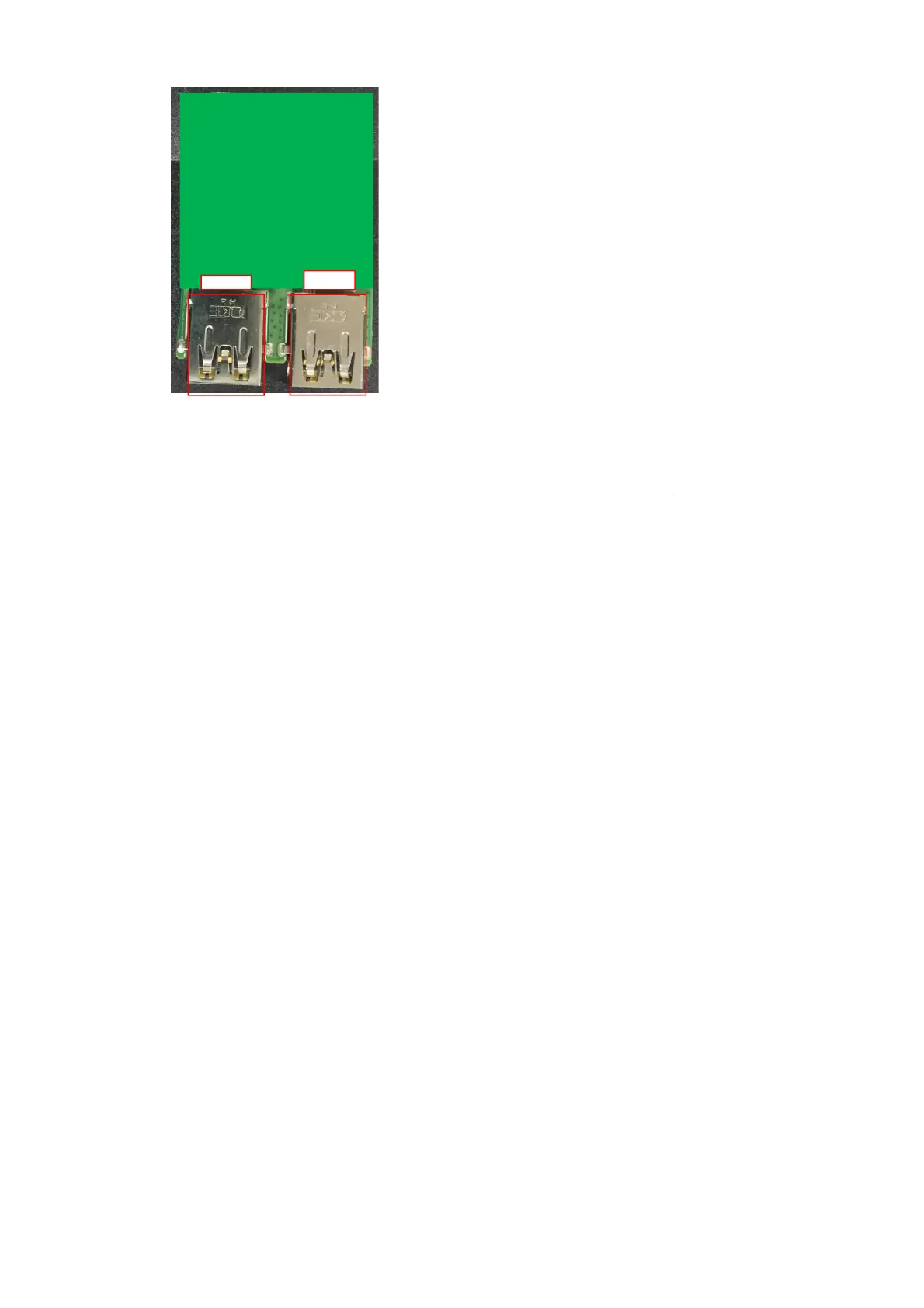

USB Board

HP E24mv G4 Specifications

General

Color gamut	72 %
Pixel pitch	0.274 x 0.274 mm
Screen shape	Flat
Display diagonal	23.8 \
Surface hardness	3H
Anti-glare screen	Yes
Native aspect ratio	16:9
Vertical scan range	50 - 60 Hz
Maximum refresh rate	60 Hz
Horizontal scan range	30 - 80 kHz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Display number of colors	-
Display diagonal (metric)	60.45 cm
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 720 (HD 720), 1280 x 800 (WXGA), 1280 x 800, 1440 x 900 (WXGA+), 1440 x 900, 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080)
HDMI version	1.4
DisplayPort version	1.2
USB Type-A downstream ports quantity	4
Power consumption (max)	50 W
Power consumption (standby)	0.5 W
Power consumption (typical)	28 W
Operating altitude	0 - 5000 m
Non-operating altitude	0 - 12192 m
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package type	Box
Package depth	411 mm
Package width	596 mm
Package height	225 mm
Package weight	10400 g
Pivot angle	-90 - 90 °
Tilt angle range	-5 - 23 °
Height adjustment	150 mm
Panel mounting interface	100 x 100 mm
Cables included	AC, DisplayPort, HDMI, USB Type-A to USB Type-B
Certification	Australian-New Zealand MEPS; BIS; BSMI; CB; CCC; CE; CECP; CEL; cTUVus; EAC; ENERGY STAR®; FCC; GS Mark; ISO 9241-307; KC/KCC; NOM; PSB; SEPA; TCO Certified; TCO Certified Edge; TUV/GS; VCCI; Vietnam MEPS; WEEE; Low blue light; WW application; UAE; Ukraine certificates
Product color	Black, Silver
Country of origin	China
Market positioning	Business
RMS rated power	2 W
Number of speakers	2

Weight and Dimensions

Depth (with stand)	216 mm
Width (with stand)	539.4 mm
Height (with stand)	530.7 mm
Weight (with stand)	6500 g
Depth (without stand)	47 mm
Height (without stand)	355.6 mm
