HP E24q G4 - 3 Illustrated parts catalog

9
3 Illustrated parts catalog

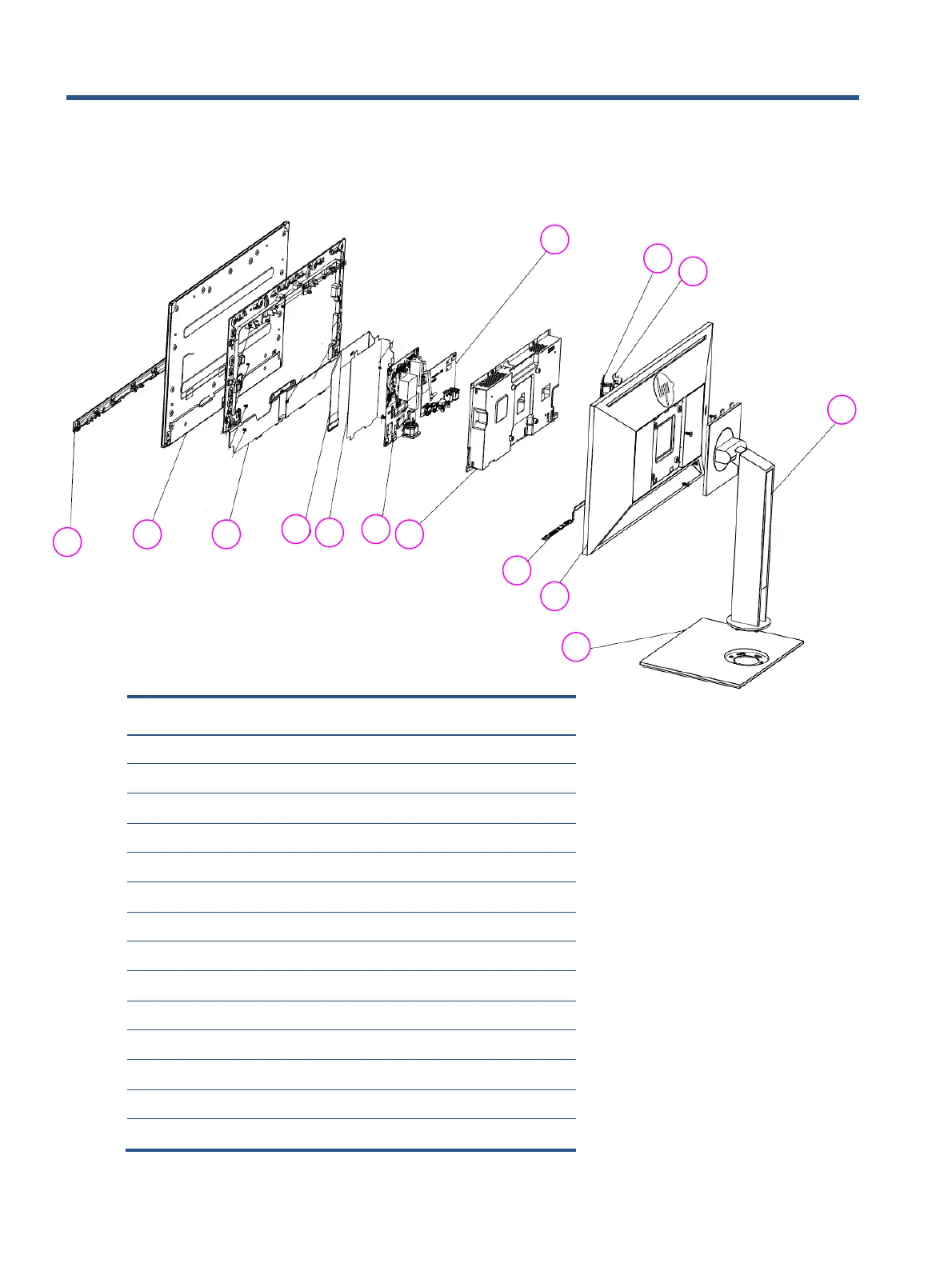

To identify the monitor major components, use this illustration and table.
Item Description Qty
1
DECO
1
2
PANEL
1
3
MIN-FRAME
1
4
MAIN SHD
1
5
SPS BD
1
6
IF BD
1
7
MYLAR POWER BD
1
8
LVDS
1
9
REAR CASE
1
10
CTRL BD
1
11
USB BD
1
12
USB SHD
1
13
COLUMN
1
14 BASE 1
