HP E24q G4 User Manual

21

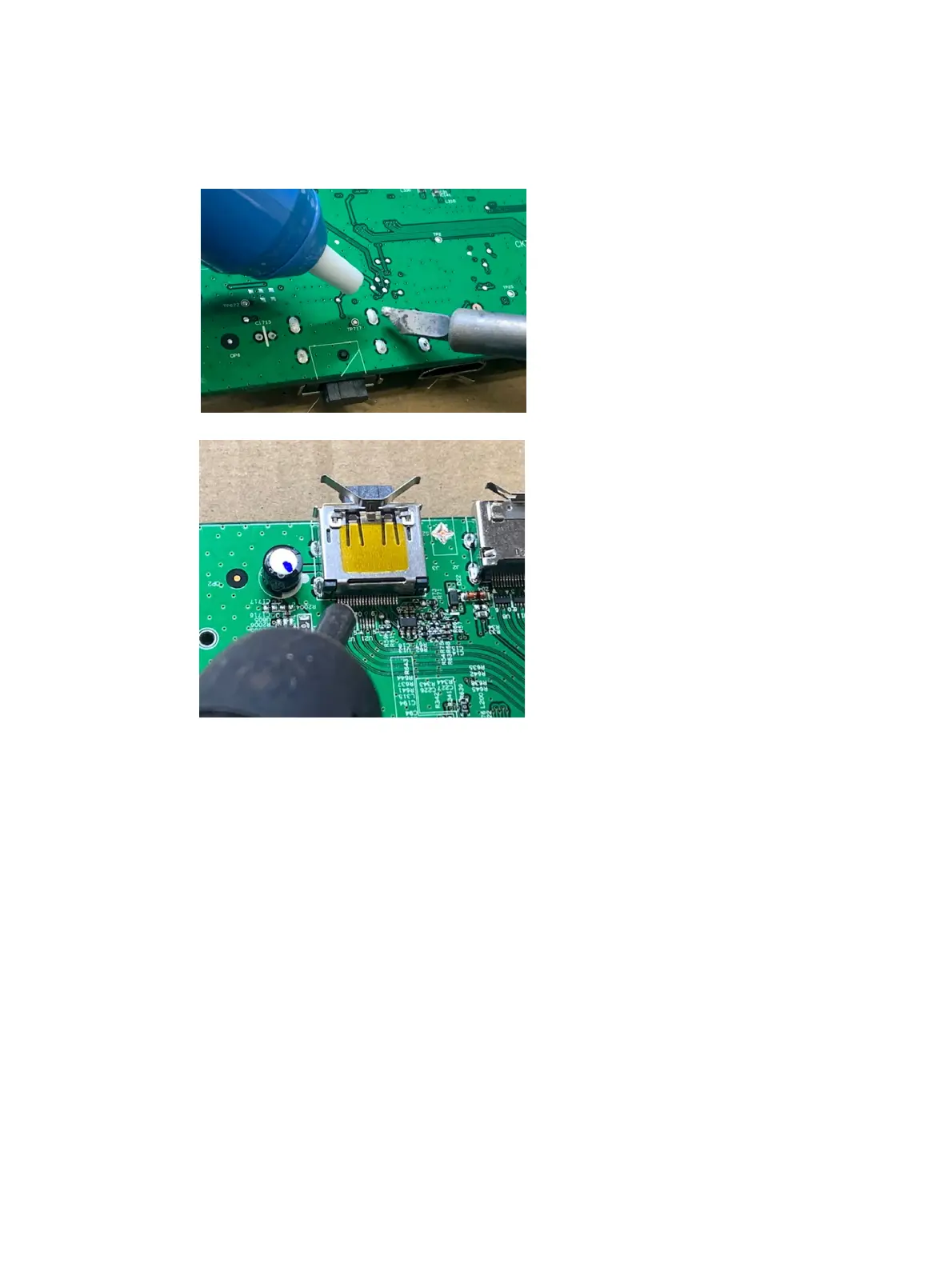

DP connector J501
Repair the DP connector:
1) Use a soldering iron and a de-soldering pump to remove as much solder as possible from the pin.
2) Use a hot air gun to melt the solder on the pins.
3) Lift the J2 connector from the circuit board.
4) Place the new component on the circuit board. Be sure that it matches the footprint.
5) Solder the new component.

HP E24q G4 Specifications

General

Color gamut	99 %
Pixel pitch	0.205 x 0.205 mm
Screen shape	Flat
Pixel density	123 ppi
Display diagonal	23.8 \
Display technology	-
Native aspect ratio	16:9
Maximum refresh rate	- Hz
Contrast ratio (dynamic)	5000000:1
Contrast ratio (typical)	1000:1
Digital vertical frequency	50 - 60 Hz
Digital horizontal frequency	30 - 90 kHz
Display brightness (typical)	250 cd/m²
Supported graphics resolutions	640 x 480 (VGA), 720 x 400, 800 x 600 (SVGA), 1024 x 768 (XGA), 1280 x 1024 (SXGA), 1280 x 800, 1440 x 900 (WXGA+), 1600 x 900, 1680 x 1050 (WSXGA+), 1920 x 1080 (HD 1080), 1920 x 502
HP segment	Business
Product color	Black, Silver
Country of origin	China
HDMI version	1.4
USB hub version	3.2 Gen 1 (3.1 Gen 1)
Built-in USB hub	Yes
DisplayPort version	1.2
USB upstream port type	USB Type-B
USB Type-A downstream ports quantity	4
Pivot angle	-90 - 90 °
Panel mounting interface	100 x 100 mm
AC input voltage	100 - 240 V
Power consumption (max)	50 W
Power consumption (standby)	0.5 W
Power consumption (typical)	24 W
Operating temperature (T-T)	5 - 35 °C
Operating relative humidity (H-H)	20 - 80 %
Package depth	225 mm
Package width	610 mm
Package height	395 mm
Package weight	8400 g
Harmonized System (HS) code	85285210

Weight and Dimensions

Depth (with stand)	207 mm
Width (with stand)	539.4 mm
Height (with stand)	494.9 mm
Weight (with stand)	5700 g
Depth (without stand)	47 mm
Height (without stand)	323.3 mm
