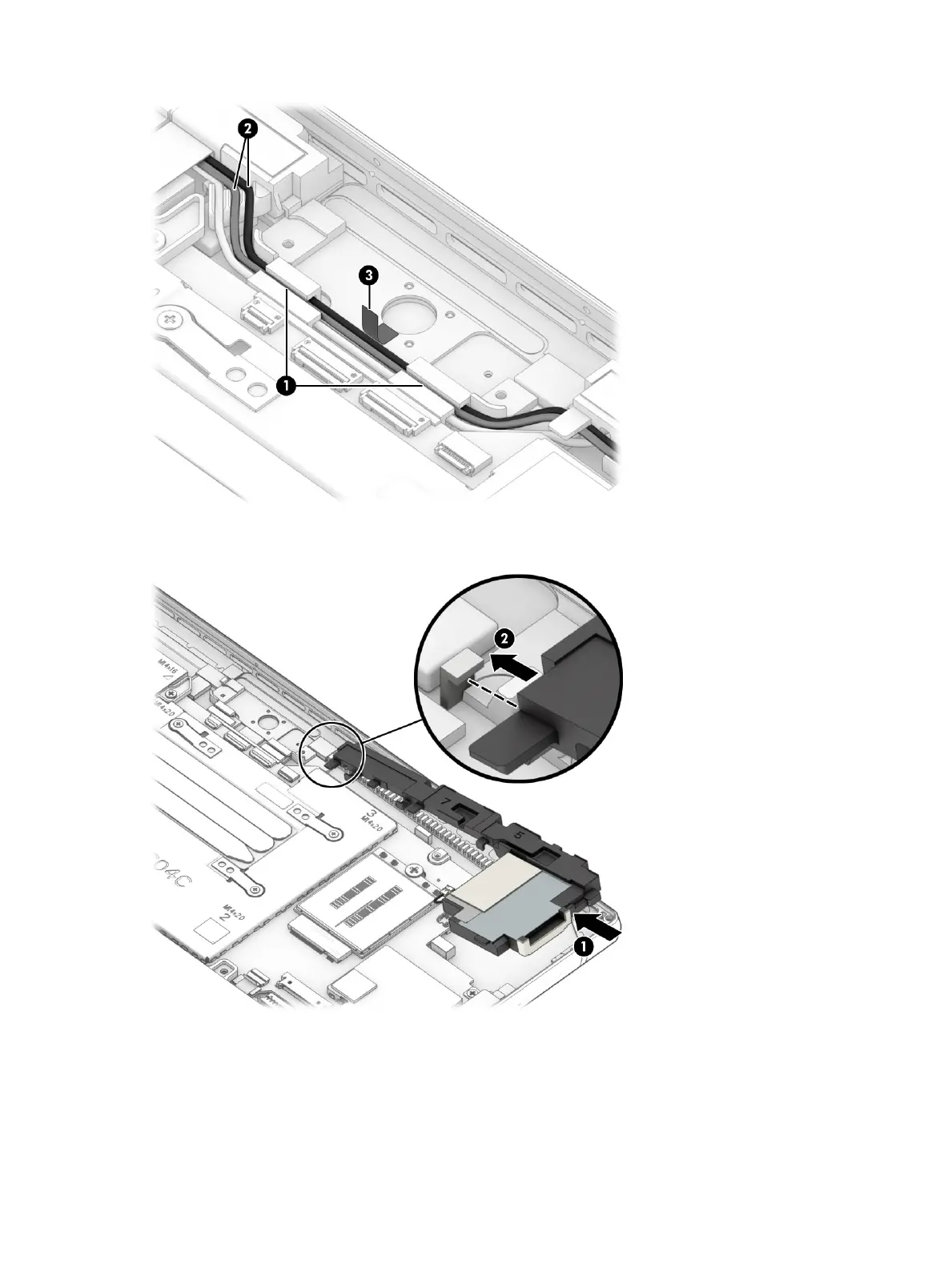

When installing the right speaker, lift the right side of the speaker (1), and insert the notch on the speaker
into the snap in the computer (2).
To install the left speaker, insert the speaker into the computer (1), place the notch on the speaker (2) into the
snap in the computer (3), and then make sure the left channel of the speaker ts under the left notch in the
computer (4).
56 Chapter 6 Removal and replacement procedures for authorized service provider parts
