Optical drive
The optical drive is located beneath the lower hard drive on the left side of the computer. The green latch
comes with the drive.
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Removing the rear port cover on page 19).
3. Remove the stand (see Stands on page 20).
4. Remove the access panel (see Access panel on page 21).
5. Remove the hard drive (see Hard drive on page 23).

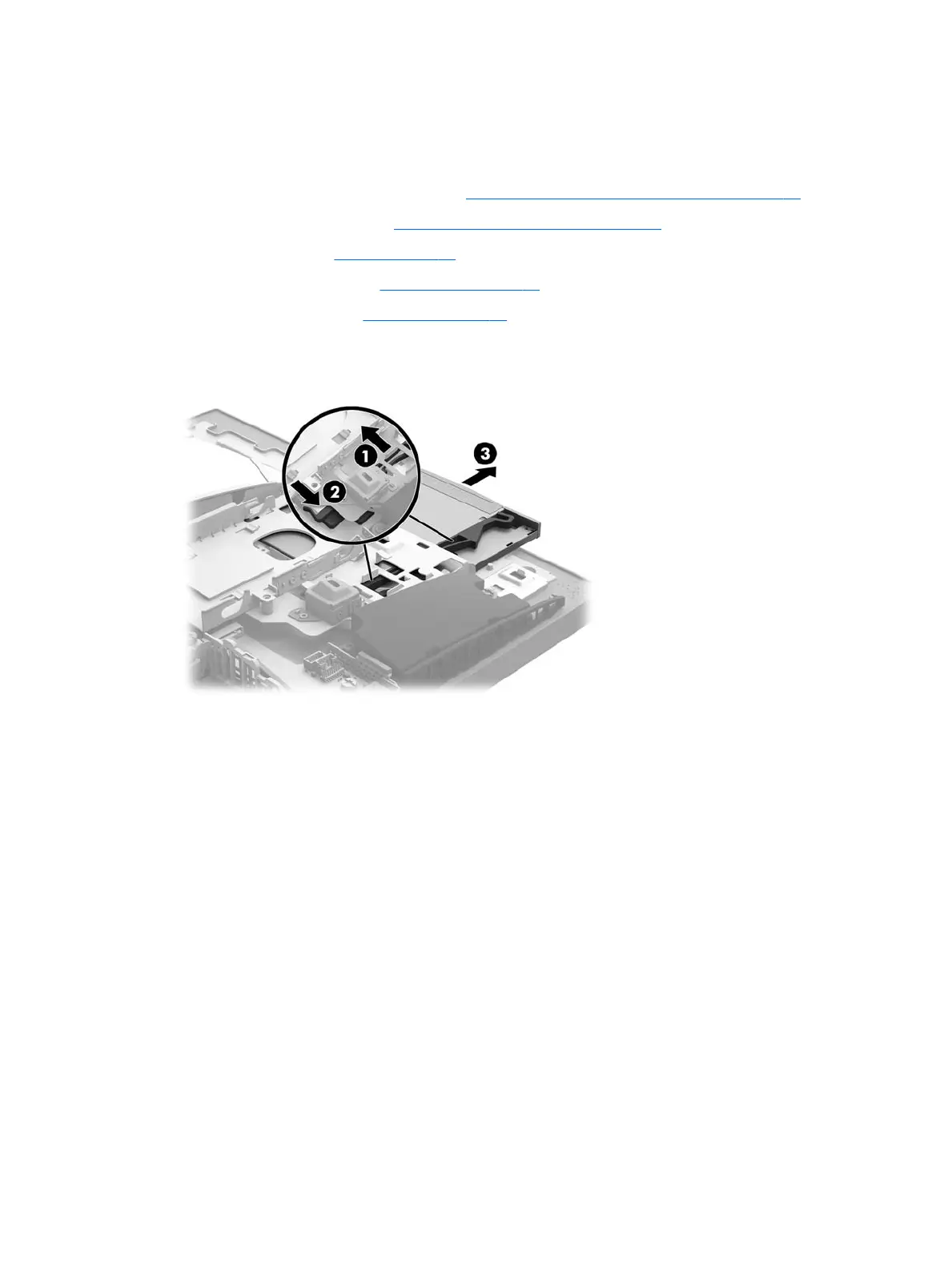

6. Push and hold the green tab (1) while pushing in the green latch (2) at the back of the optical disc drive
enclosure and slide the drive (3) out of the chassis.
7. Pull the green latch o the optical drive.
Keep this latch to install on the new optical drive.
24 Chapter 4 Removal and Replacement Procedures
