Webcam module
The webcam is located at the top of the computer, under a plastic shield. The top heat sink screws also secure
the webcam plastic shield.
To remove the webcam module:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Removing the rear port cover on page 19).
3. Remove the stand (see Stands on page 20).
4. Remove the access panel (see Access panel on page 21).
5. Remove the heat sink (see Heat sink on page 35).

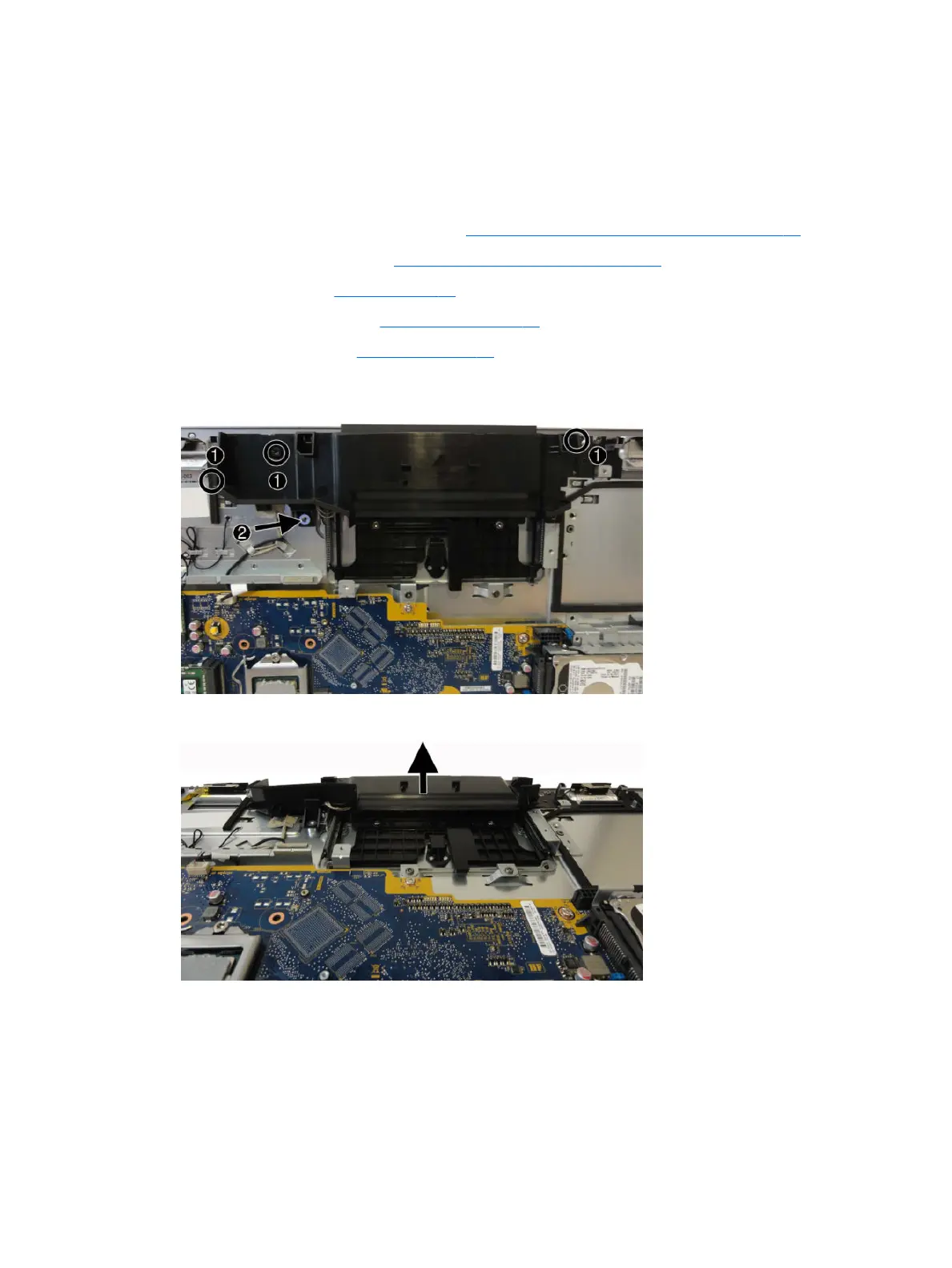

6. To remove the webcam plastic shield, remove the three Torx screws (1) that secure the shield to the
computer, and then pry upward at the left screw boss to disengage the shield (2).
7. Remove the webcam shield from the computer.
8. Remove the four Phillips screws (1) that secure the webcam assembly to the computer.
9. Disconnect the webcam cable from the system board (2).
40 Chapter 4 Removal and Replacement Procedures
