VESA mounting bracket/fan assembly
The VESA mounting bracket/fan assembly is located under the stand.
To remove the VESA mounting bracket/fan assembly:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Removing the rear port cover on page 19).
3. Remove the stand (see Stands on page 20).
4. Remove the access panel (see Access panel on page 21).

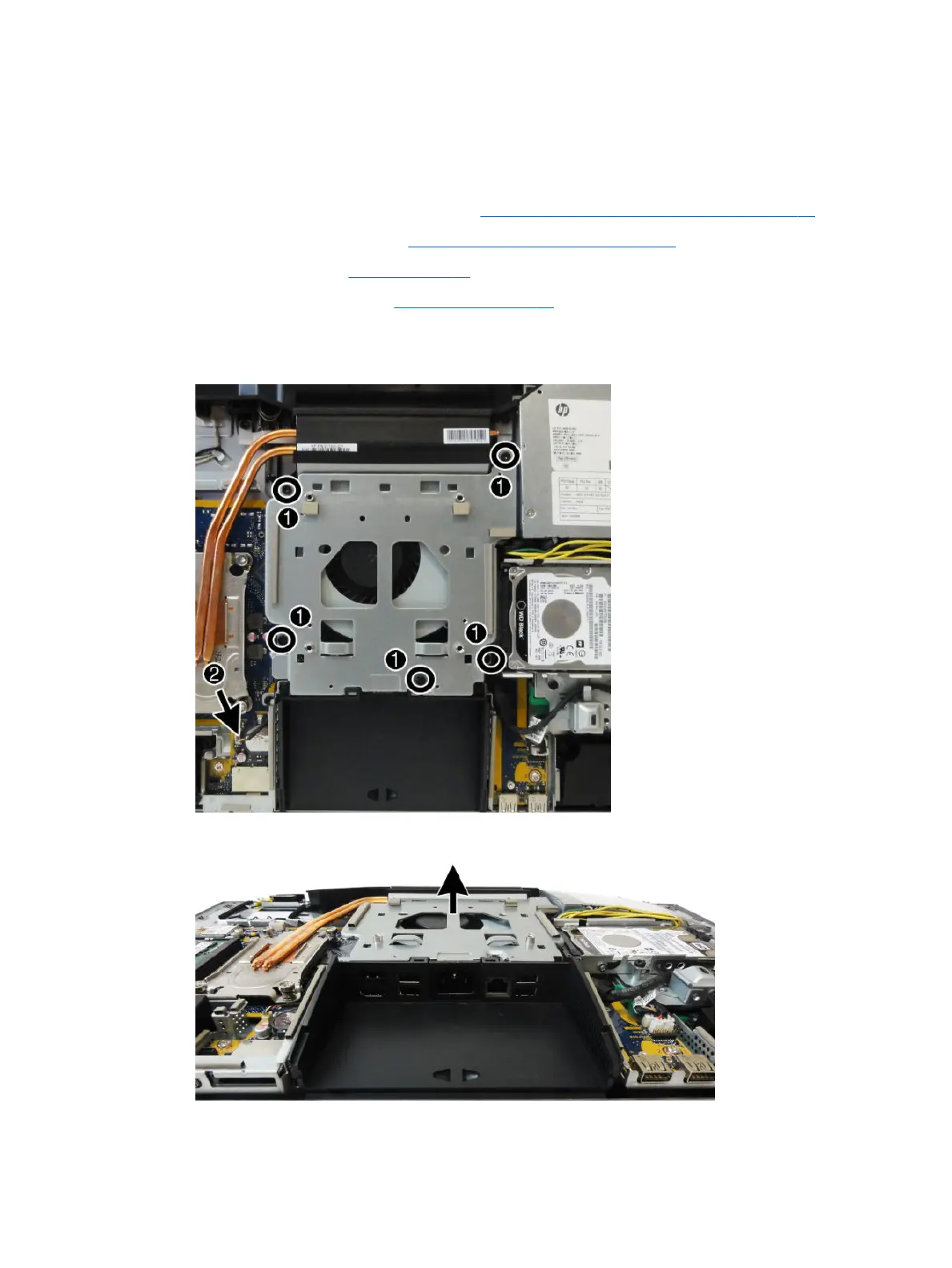

5. Remove the ve Torx screws that secure the assembly to the computer.
6. Disconnect the fan cable from the system board (2).
7. Lift the assembly o the computer.
VESA mounting bracket/fan assembly 43
