Rear I/O cover
The rear I/O cover is located at the bottom of the computer below the VESA bracket/fan assembly. It is
secured with two screws.
To remove the rear I/O cover:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Removing the rear port cover on page 19).
3. Remove the stand (see Stands on page 20).
4. Remove the access panel (see Access panel on page 21).
5. Remove the I/O bracket secured to the system board (see callout 2 in System board on page 50).

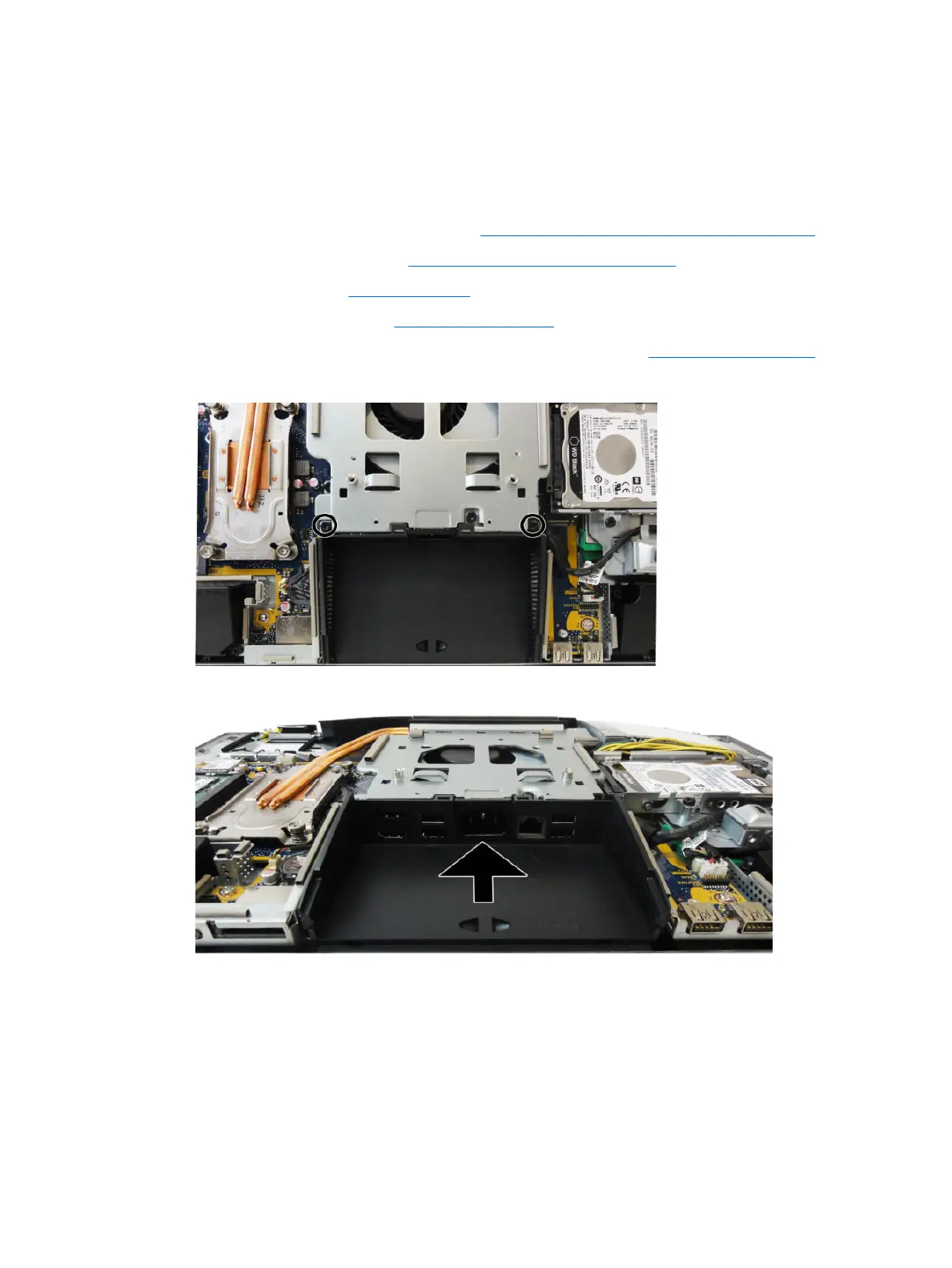

6. Remove the two Torx screws that secure the cover to the computer.
7. Remove the rear I/O cover from the computer.
To install the bottom I/O cover, reverse the removal procedures.
