M.2 solid-state drive
Description
256-GB solid-state drive, 2280SS, NVMe
128-GB solid-state drive, 2280SS, NVMe

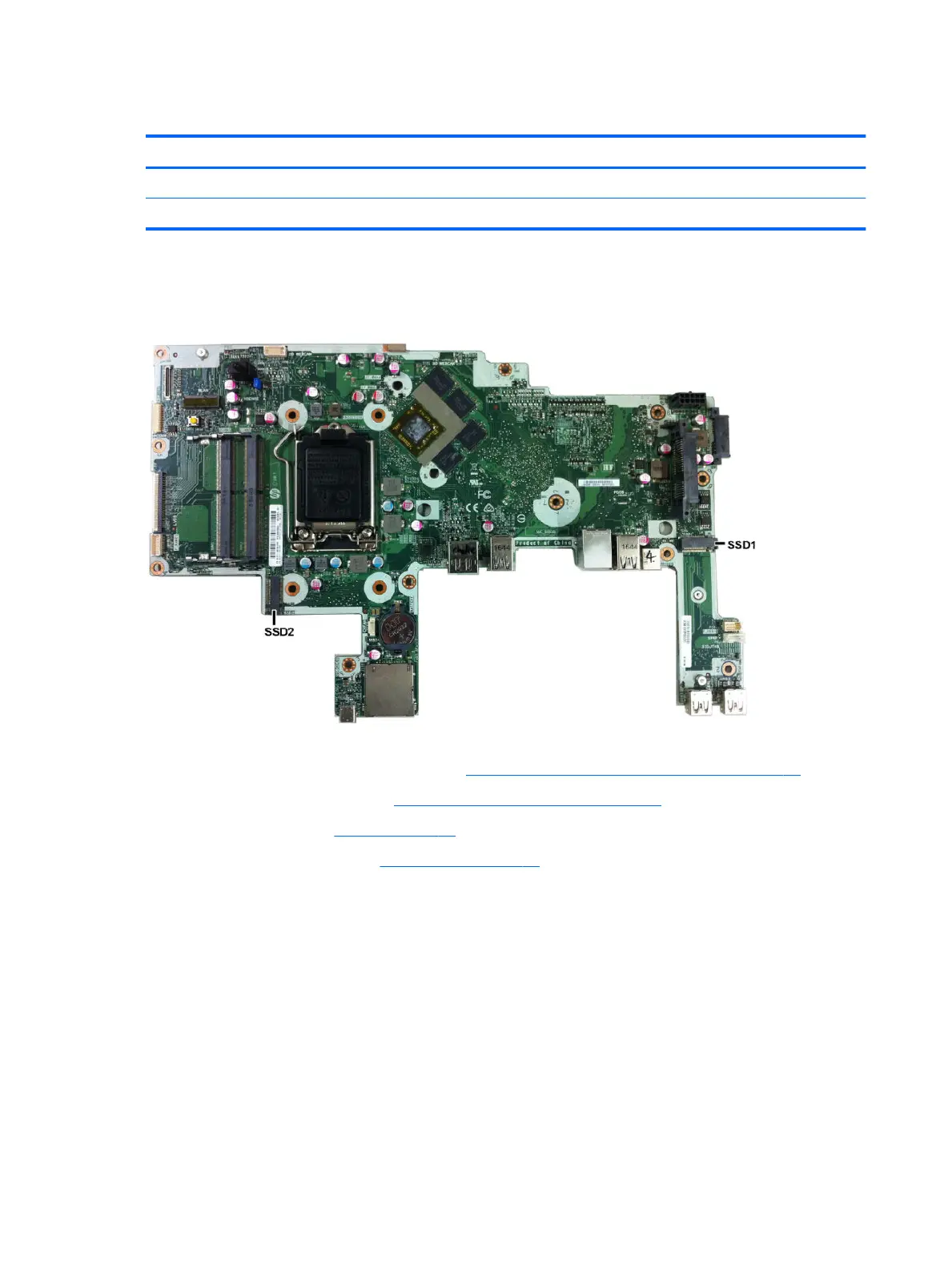

Two M.2 solid-state drive connectors are available on the system board. The connector labeled SSD2 (near
the processor)
ts only 22mm x 80mm M.2 solid-state drives. The connector labeled SSD1 (on the right side
of the board) ts both 22mm x 80mm and 22mm x 30mm M.2 solid-state drives.
To remove the M.2 solid-state drive:
1. Prepare the computer for disassembly (see Preparing to disassemble the computer on page 19).
2. Remove the rear port cover (see Removing the rear port cover on page 19).
3. Remove the stand (see Stands on page 20).
4. Remove the access panel (see Access panel on page 21).
5. Remove the Phillips screw (1) that secures the drive to the computer.
26 Chapter 4 Removal and Replacement Procedures
