HP EliteOne 800 G3

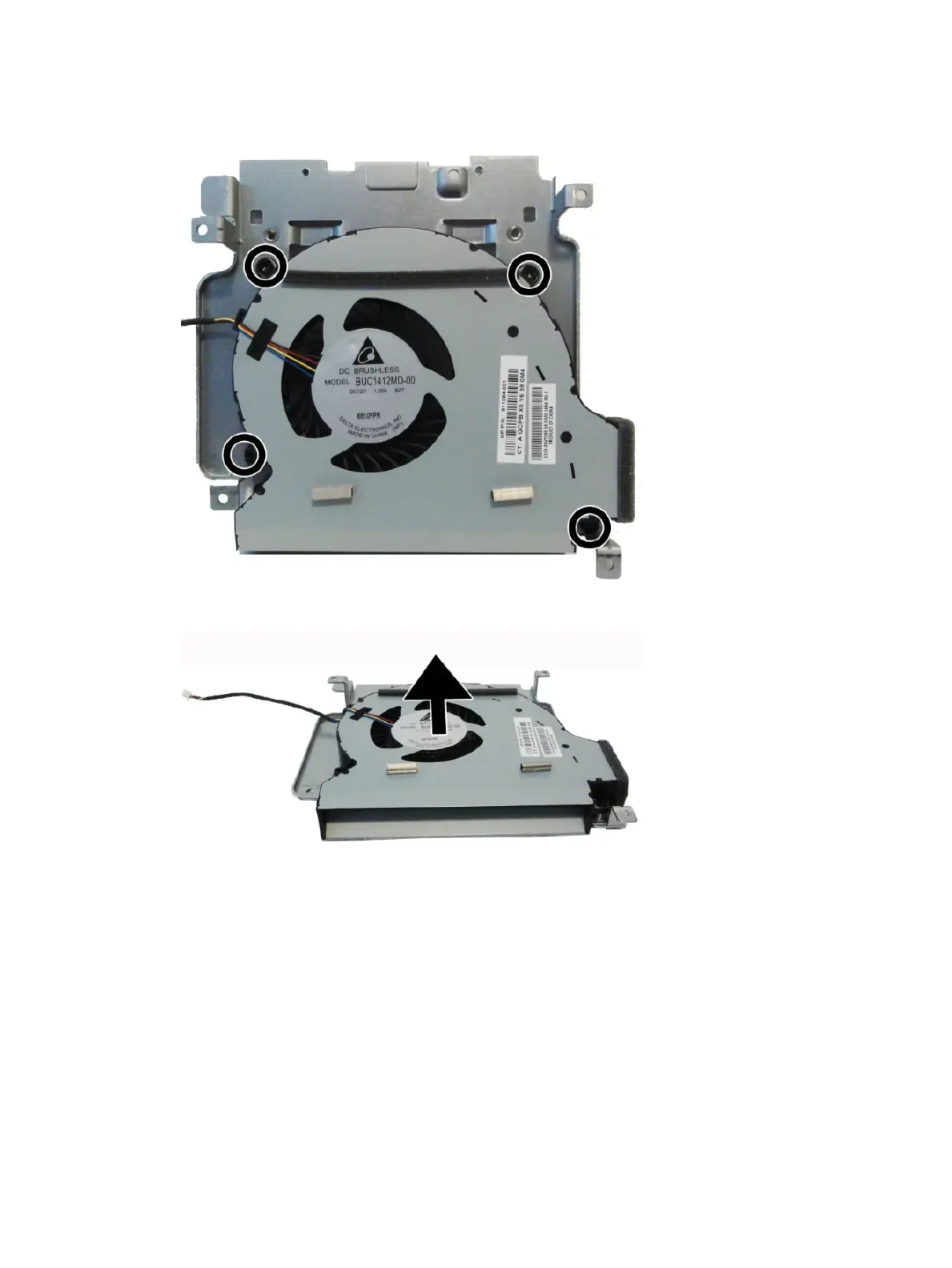

8. If it is necessary to remove the fan from the bracket, remove the four Torx screws that secure the fan to
the bracket.
9. Separate the fan from the bracket.
To replace the VESA mounting bracket/fan assembly, reverse the removal procedures.
44 Chapter 4 Removal and Replacement Procedures
