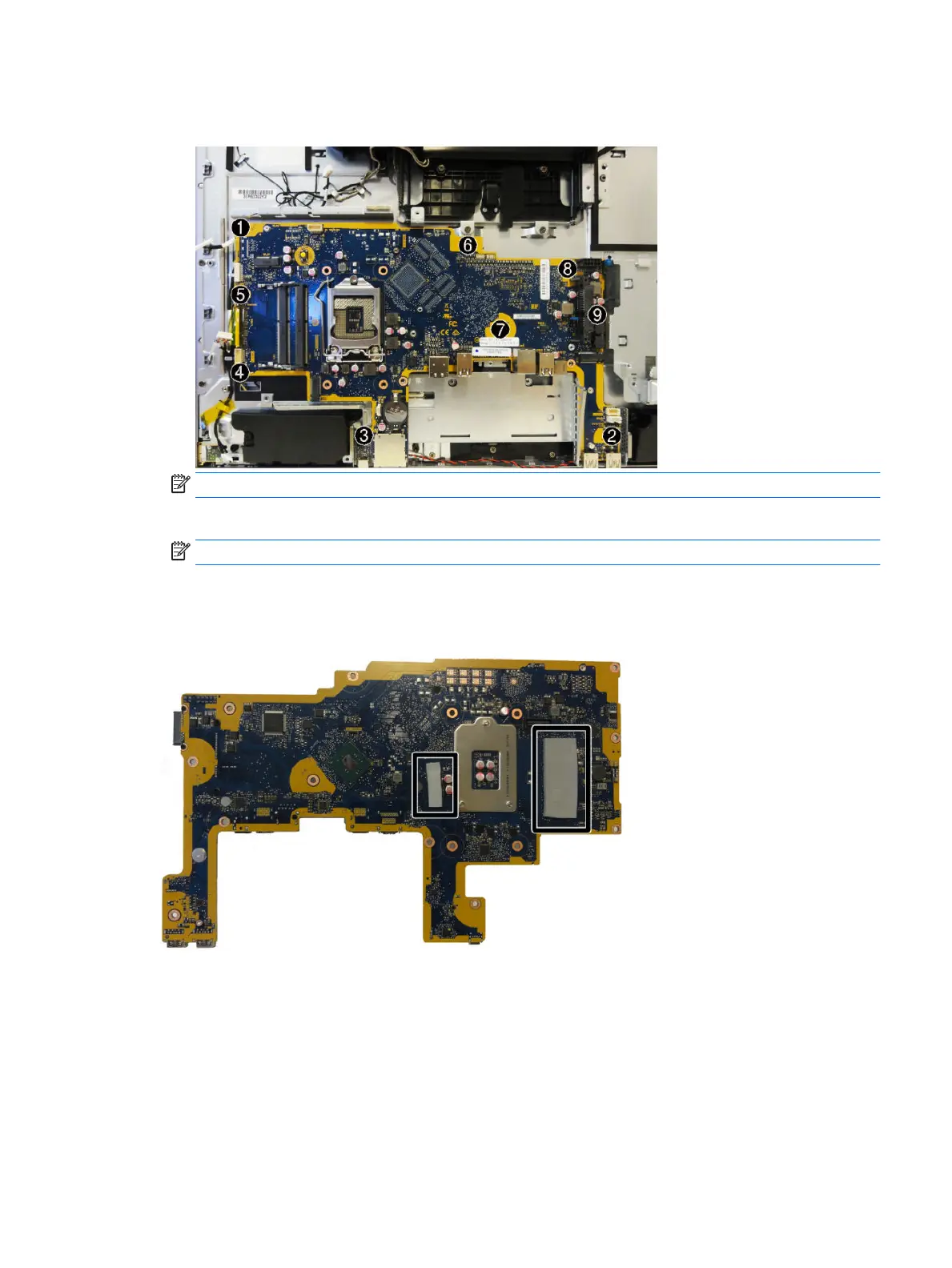

15. In the order printed on the system board, remove the nine Torx screws (1)-(9) that secure the system
board to the computer.
NOTE: System board appearance may vary.
16. Lift the system board up and out of the computer.
NOTE: The thermal pad under the left side of the system board may stick.
To install the system board, reverse the removal procedures. Be sure to replace the screws in the order
indicated on the system board.
Note the replacement locations of the thermal pads on the bottom of the system board..
Updating SMBIOS Information
When replacing the system board, you must reprogram the SMBIOS information on the aected computer.
Failure to reprogram the board will result in eventual failure, such as an activation failure (need to reactivate
the system) or a system recovery failure.
System board 51
