RF asset module antennas (select products only)
To remove the RF asset module antennas:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).

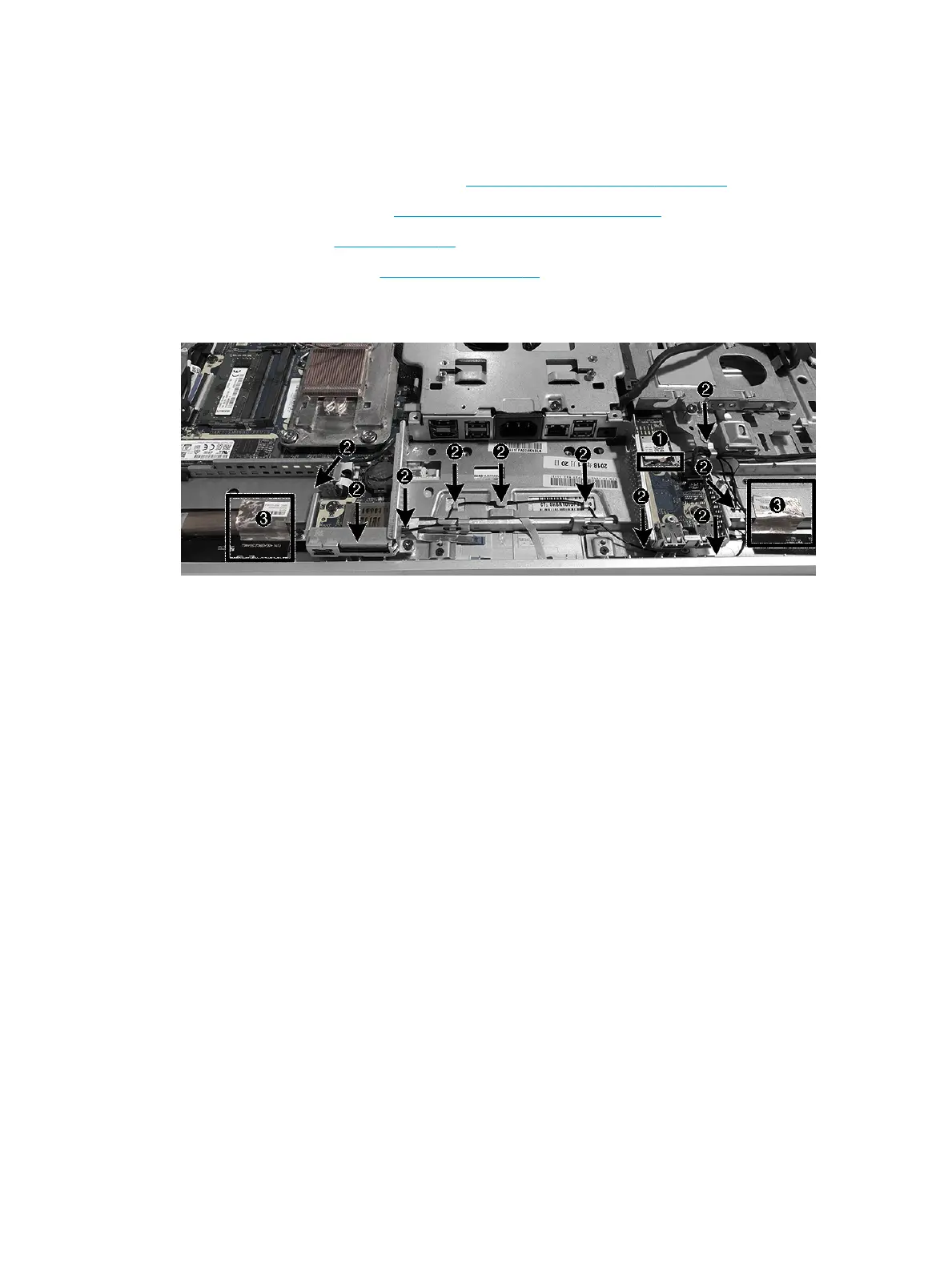

5. Disconnect the antenna cables from the RF asset module (1), remove the cables from the routing and
clips along the bottom of the chassis (2), and then peel the antennas from the computer (3).
To install the RF asset module antennas, reverse the removal procedures.
38 Chapter 4 Removal and replacement procedures
