RFID board (select products only)

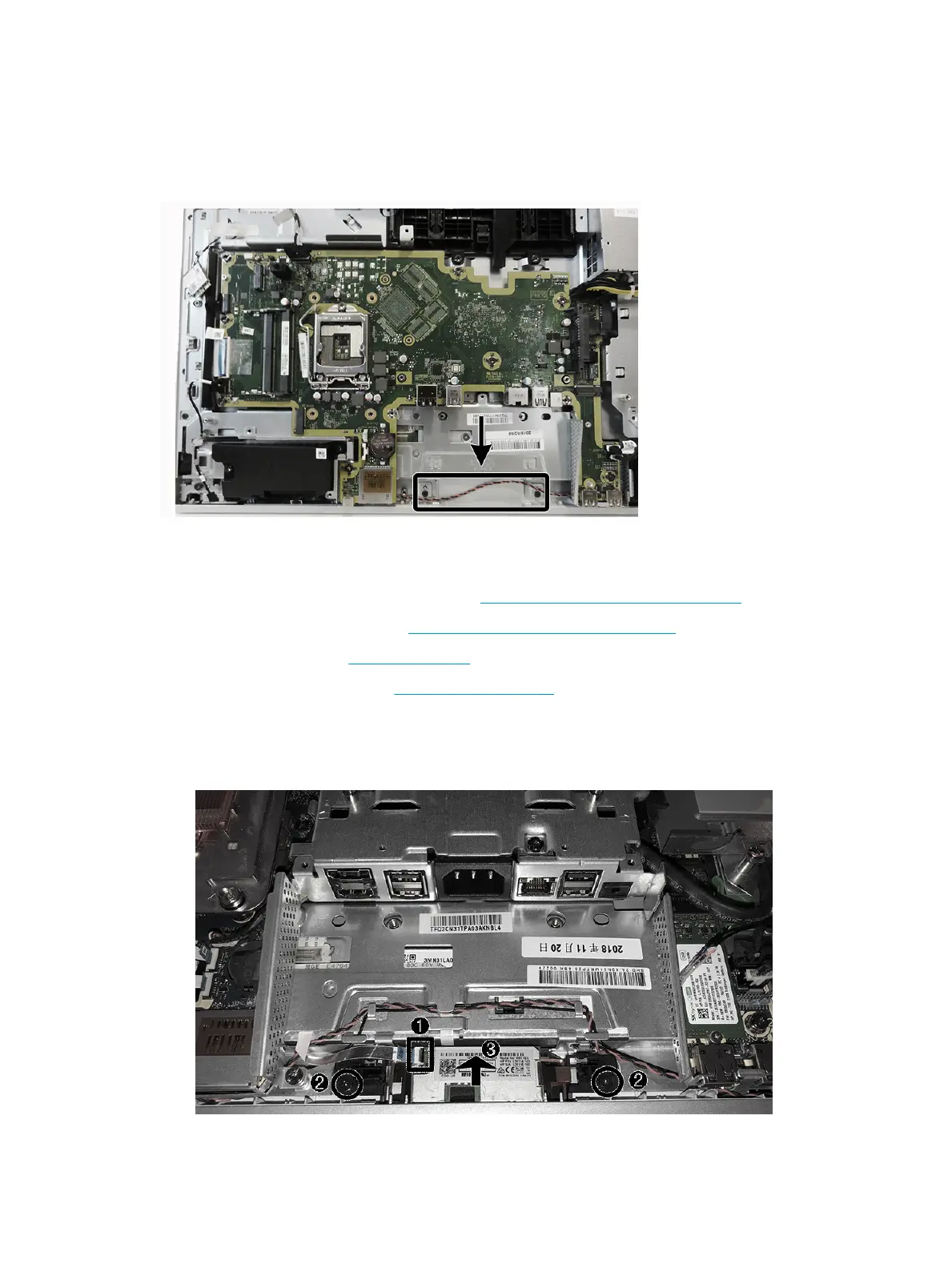

An RFID board may be included with healthcare models. It is located near the bottom of the chassis.
To remove the RFID board:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Disconnect the cable ZIF connector on the board (1), remove the two Phillips screws (2) that secure the
board to the computer, and then remove the board from the computer (3).
RFID board (select products only) 39
