Audio board
The audio board is located on the bottom corner of the computer. It is secured with one Torx screw.
To remove the audio board:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the access panel (see Access panel on page 25).
3. Remove the rear port cover (see Removing the rear port cover on page 23).
4. Remove the stand (see Stands on page 24).
5. Remove the access panel (see Access panel on page 25).

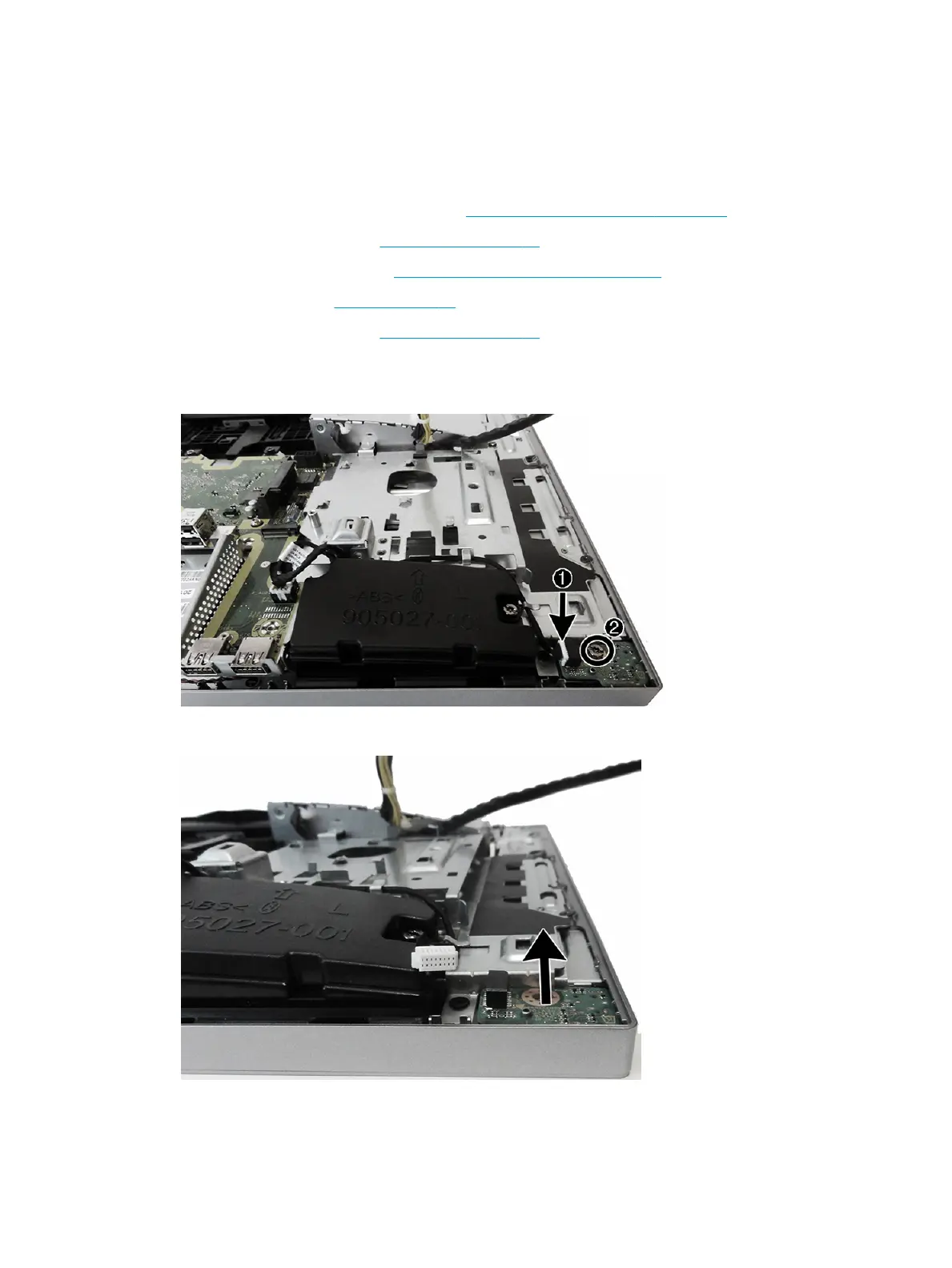

6. Disconnect the cable from the audio board (1)
7. Remove the Torx screw (2) that secures the audio board to the computer.
8. Lift the audio board out of the computer.
To replace the audio board, reverse the removal procedures.
