VESA mounting bracket/fan assembly
The VESA mounting bracket/fan assembly is located under the stand.

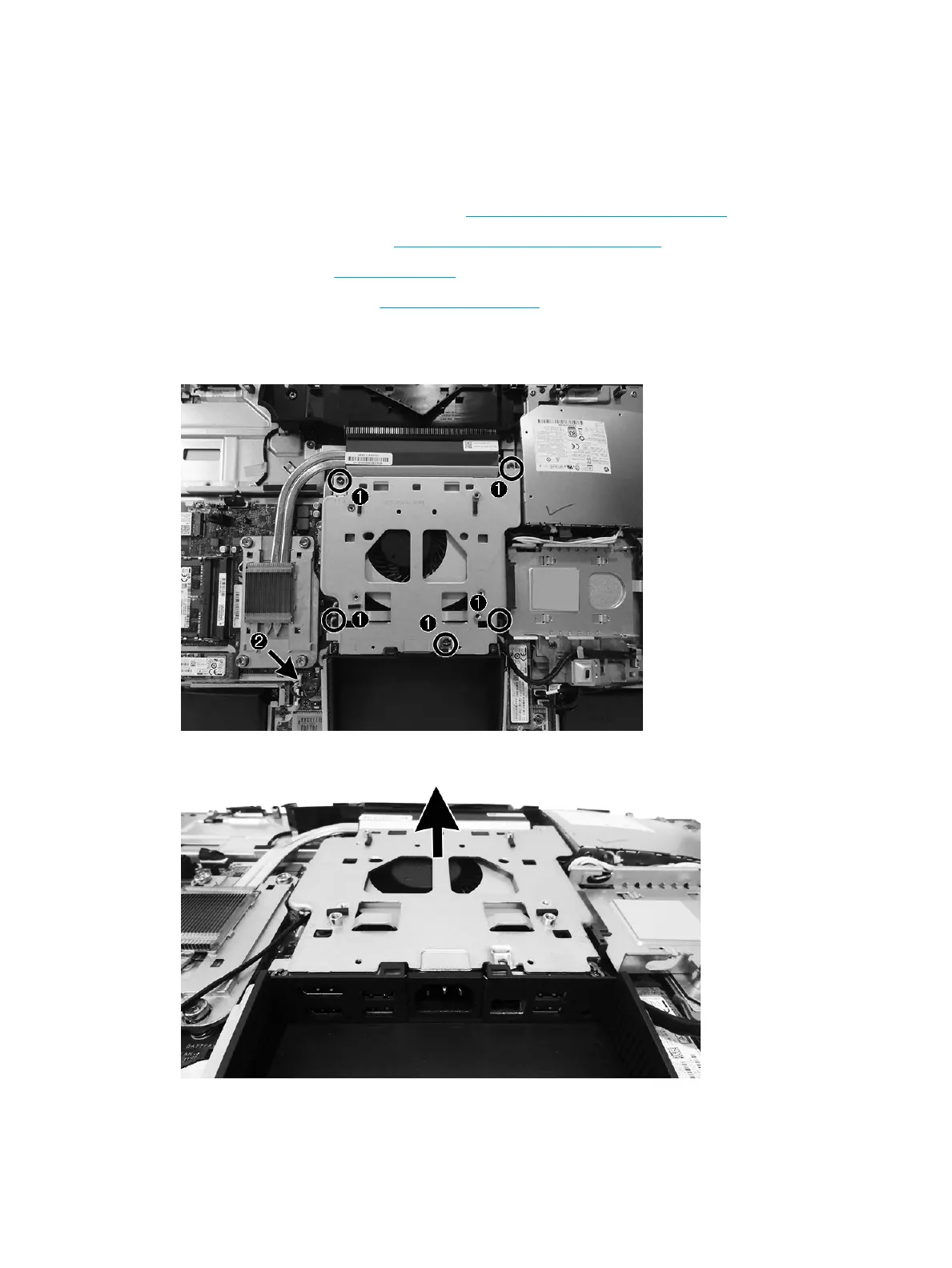

To remove the VESA mounting bracket/fan assembly:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).
5. Remove the ve Torx screws that secure the assembly to the computer.
6. Disconnect the fan cable from the system board (2).
7. Lift the assembly o the computer.
48 Chapter 4 Removal and replacement procedures
