Rear I/O cover
The rear I/O cover is located at the bottom of the computer below the VESA bracket/fan assembly. It is
secured with two screws.
To remove the rear I/O cover:
1. Prepare the computer for disassembly (see Preparation for disassembly on page 23).
2. Remove the rear port cover (see Removing the rear port cover on page 23).
3. Remove the stand (see Stands on page 24).
4. Remove the access panel (see Access panel on page 25).

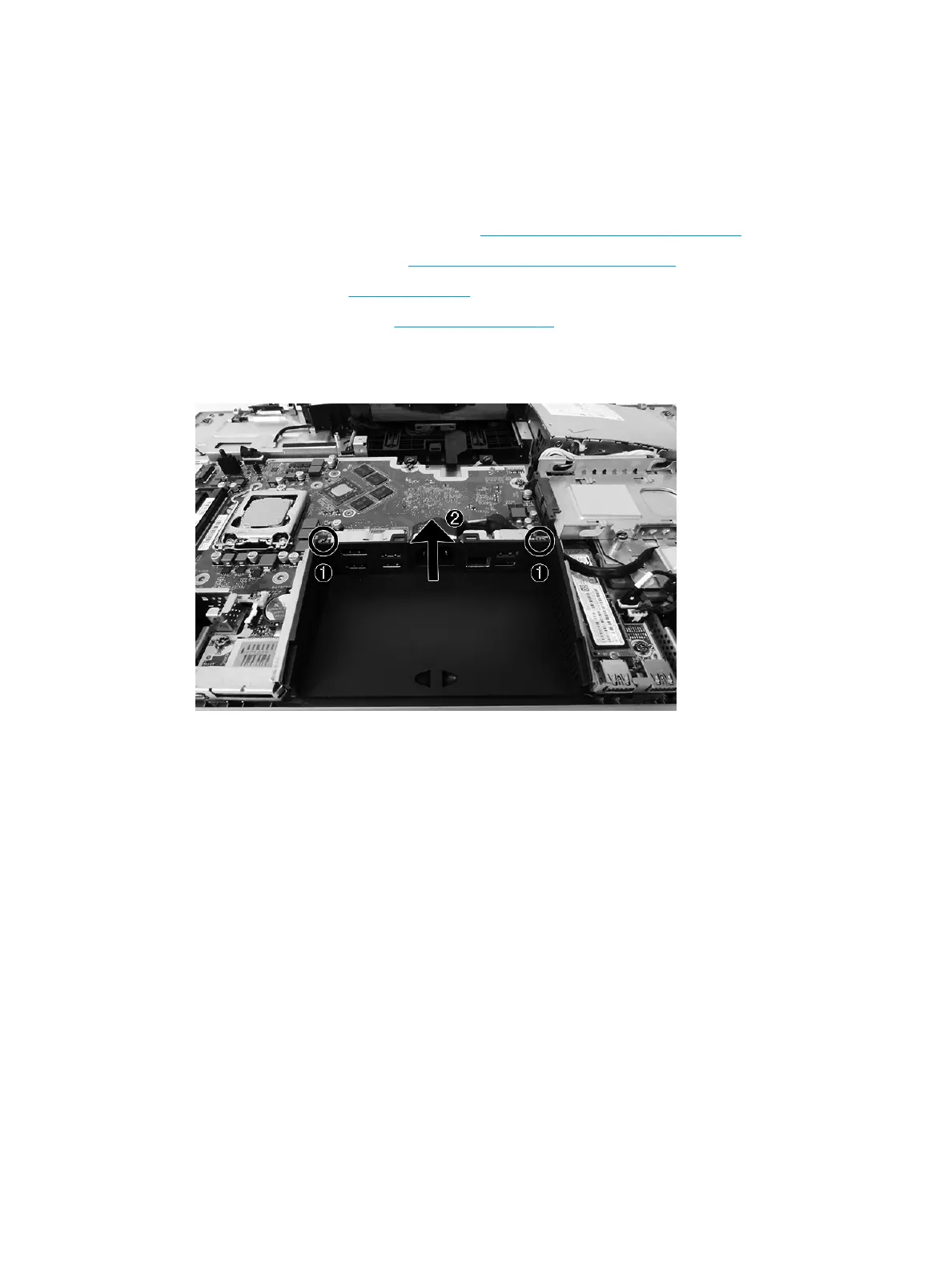

5. Remove the two Torx screws (1) that secure the cover to the computer.
6. Remove the rear I/O cover from the computer (2).
To install the bottom I/O cover, reverse the removal procedures.
Rear I/O cover 47
