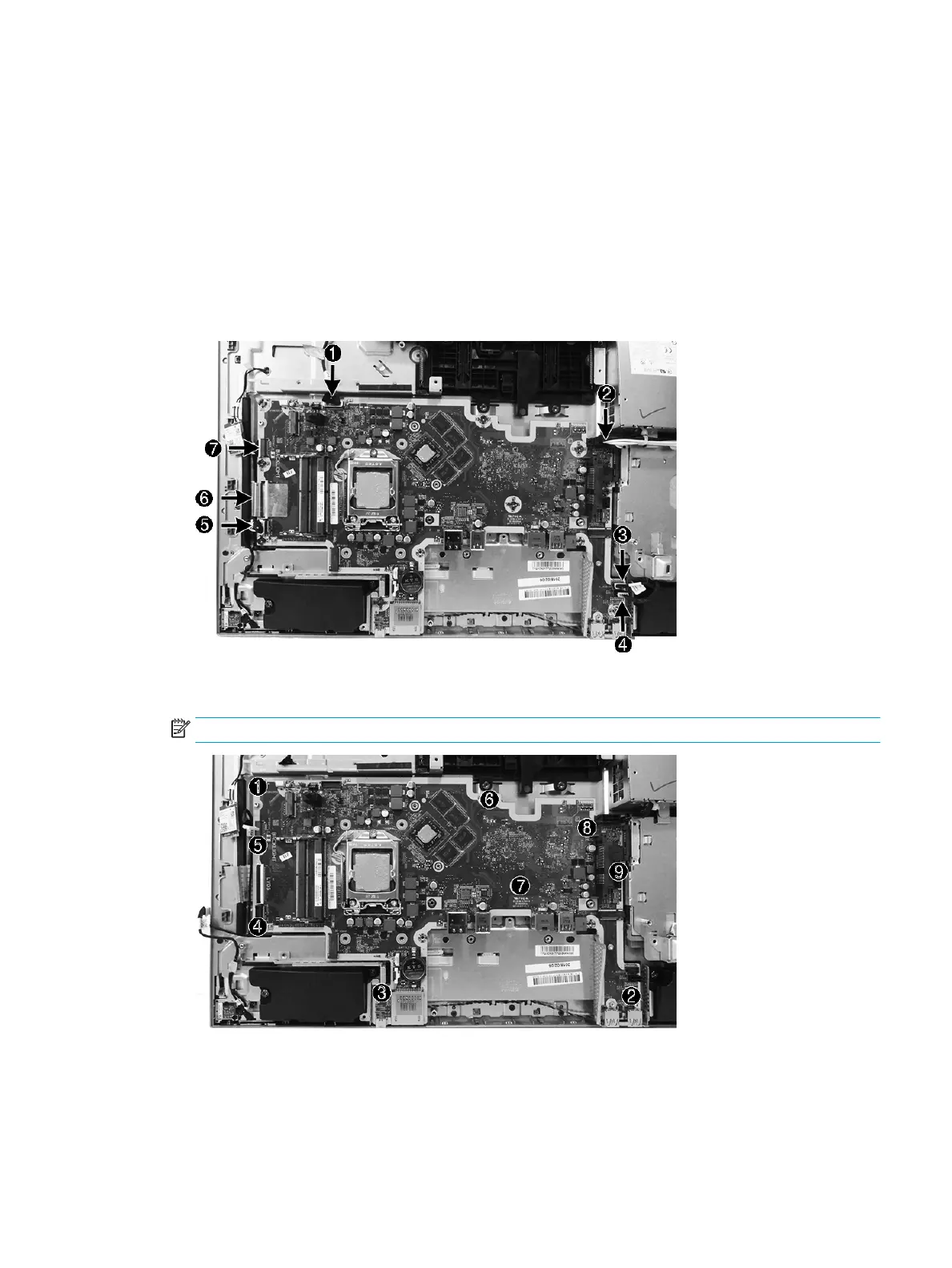

14. Disconnect all cables from the system board, noting their location for reinstallation:
(1): Camera cable
(2): Power supply cable
(3): Front audio cable
(4): Speaker cable
(5): Front panel cable
(6): Converter cable
(7): LVDS (display) cable
15. In the order printed on the system board, remove the nine Torx screws (1)-(9) that secure the system
board to the computer.
NOTE: System board appearance can vary.
16. Lift the system board up and out of the computer.
To install the system board, reverse the removal procedures. Be sure to replace the screws in the order
indicated on the system board.
System board 55
