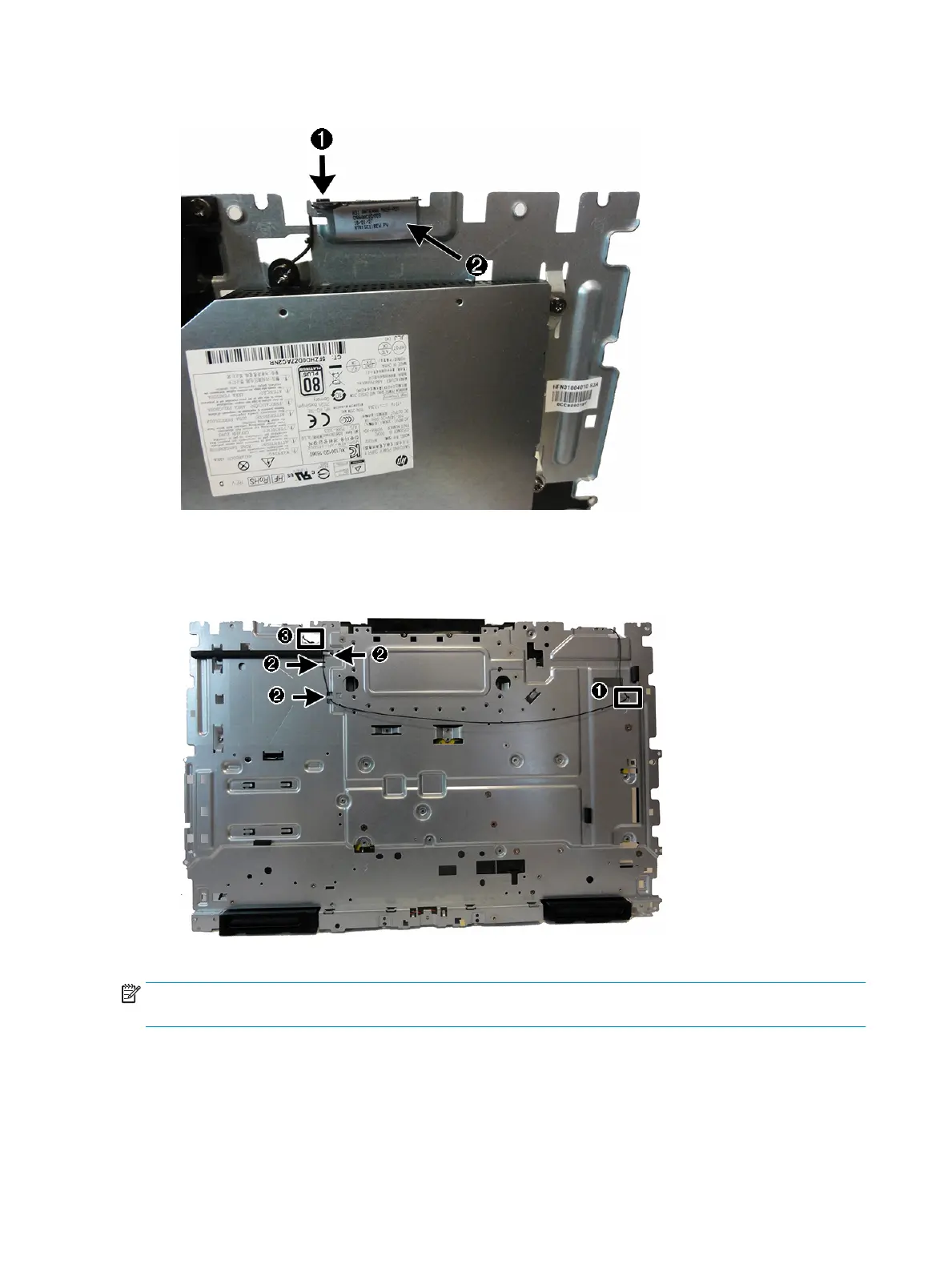

12. Remove the Phillips screw from the left antenna (1), and then peel the antenna from the chassis (2).

13. From the back of the frame, pull the antenna cables through the hole in the frame (1).

14. Remove the cables from the clips on the back of the frame (2).

15. Pull the right antenna cable through the hole in the frame (3).

To install the antenna, reverse the removal procedures.

NOTE: When connecting the antennas cables, be sure to match the numbers on the cable with the same

number printed on the WLAN module.

64 Chapter 4 Removal and replacement procedures
