HP ENVY 17m

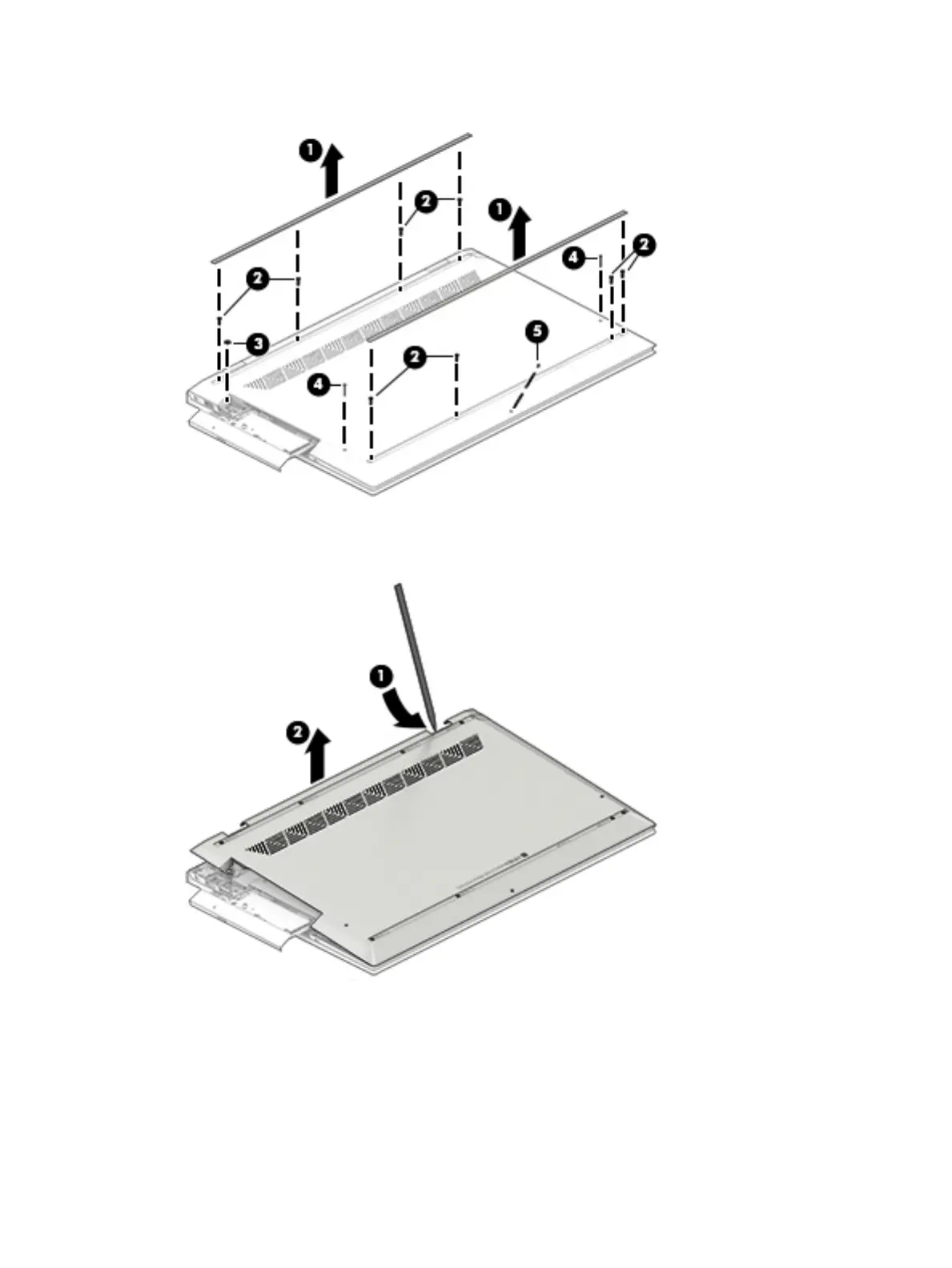

6. Remove the Torx T5 2.5 × 4.0 screw from the bottom edge of the computer (5).
7. Use a plastic tool (1) to separate the front of the bottom cover from the computer.
8. On the hinge side, lift up near both hinges to remove the bottom cover from the computer (2).
28 Chapter 5 Removal and replacement procedures for authorized service provider parts
