Power connector
Table 5-18 Power connector description and part number
Description Spare part number
Power connector L52659-001
Before removing the power connector cable, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).
4. Remove the USB board (see USB board on page 42).
5. Remove the display (see Display assembly on page 54).

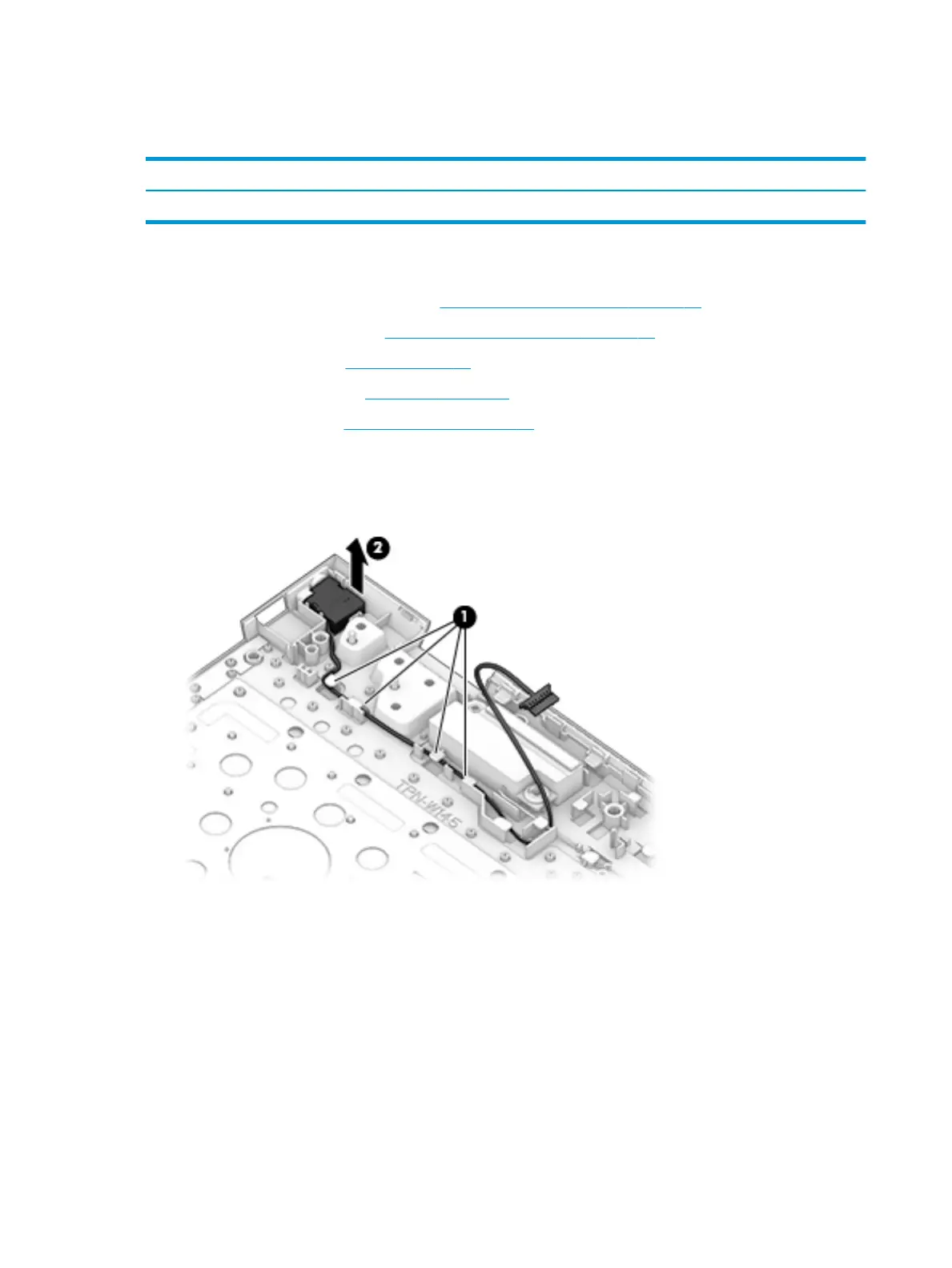

Remove the power connector cable:
1. Remove the cable from the clips in the computer (1).
2. Remove the power connector and cable from the computer (2).
Reverse this procedure to install the power connector cable.
56 Chapter 5 Removal and replacement procedures for authorized service provider parts
