TouchPad
NOTE: The TouchPad spare part kit does not include the TouchPad cable. The TouchPad cable is available
using spare part number L52655-001.
Table 5-9 TouchPad description and part number
Description Spare part number
TouchPad L53699-001
Before removing the TouchPad , follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).

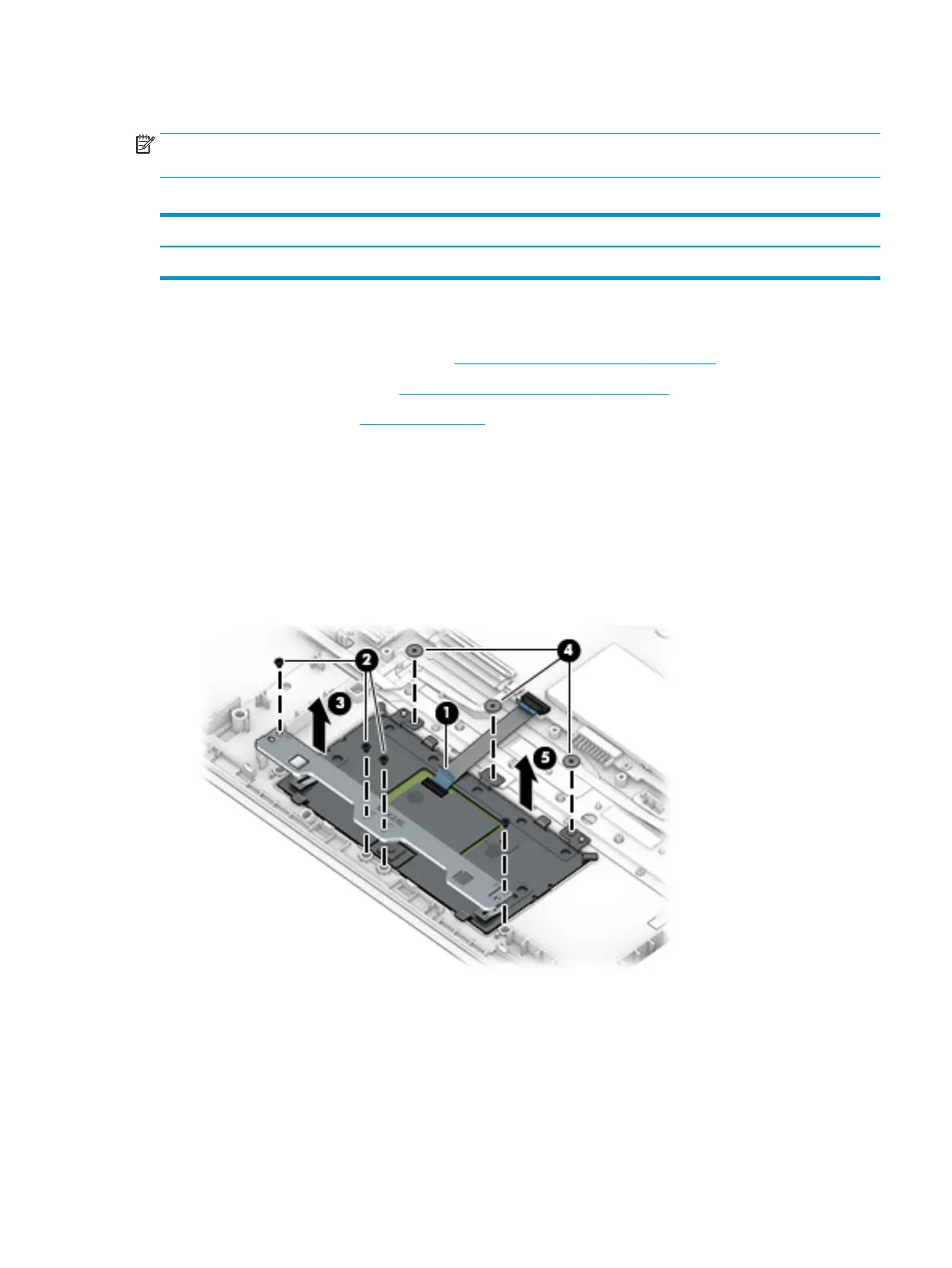

Remove the TouchPad:
1. Disconnect the cable from the ZIF connector on the TouchPad (1).
2. Remove the four Phillips M2.0 × 2.5 screws (2) that secure the TouchPad bracket to the computer.
3. Remove the TouchPad bracket from the computer (3).
4. Remove the three broadhead Phillips M2.0 × 2.5 screws (4) that secure the TouchPad to the computer.
5. Remove the TouchPad from the computer (5).
Reverse this procedure to install the TouchPad.
Component replacement procedures 43
