Display assembly
Table 5-17 Display assembly descriptions and part numbers
Description Spare part number
Display assembly, non-touch L54269-001
Display assembly, touch screen L52653-001
Before removing the display assembly, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).
Remove the display assembly:

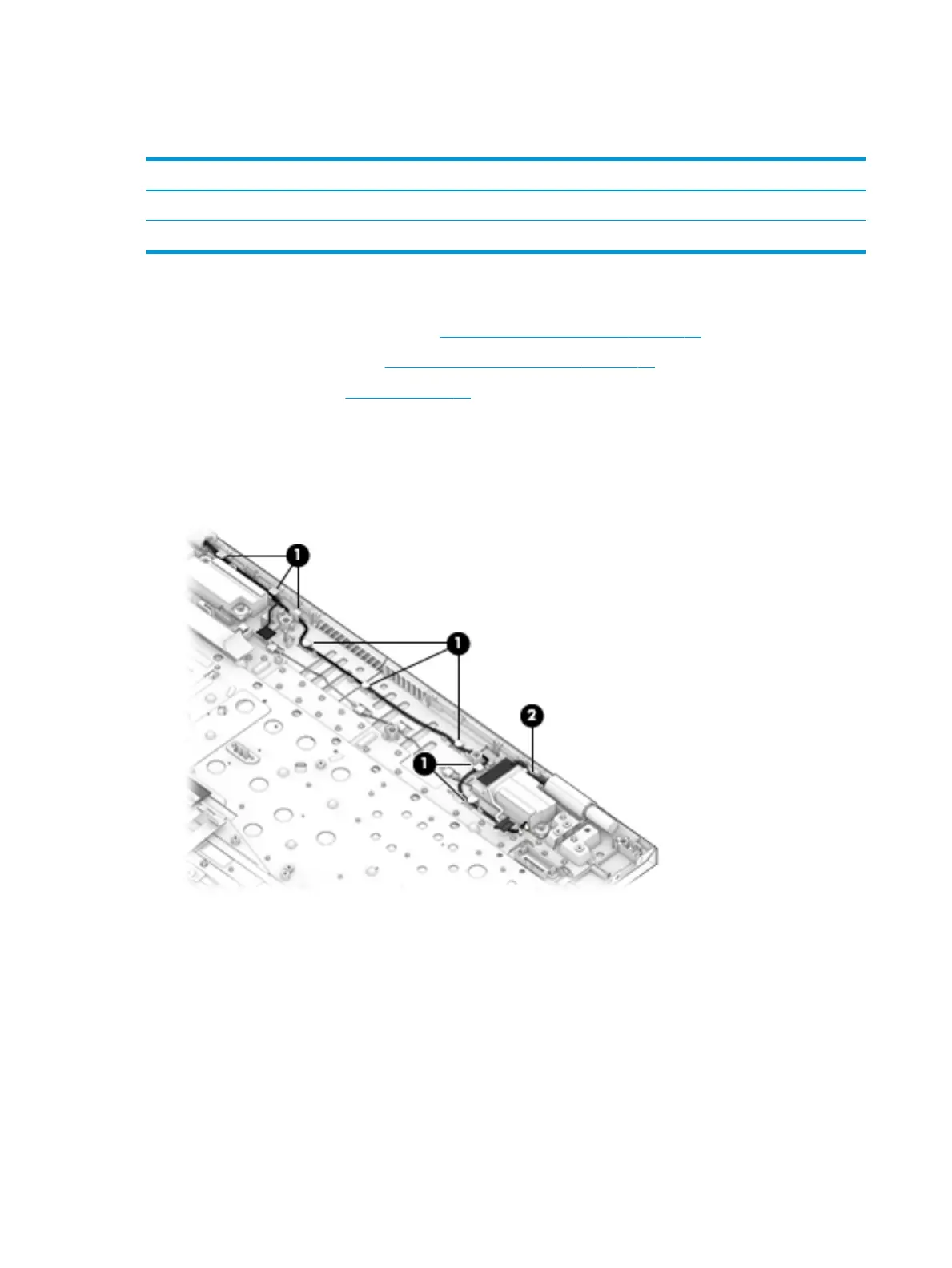

1. Remove the WLAN antennas and webcam cable from the clips and channel in the right speaker and
computer (1).
2. Remove the display cable from the routing channel in the left speaker (2).
3. Remove the three Phillips M2.5 × 6.0 screws (1) from each hinge.
4. Open the display to open the hinges (2).
54 Chapter 5 Removal and replacement procedures for authorized service provider parts
