Heat sink
Table 5-13 Heat sink and thermal pad descriptions and part numbers
Description Spare part number
Heat sink L52660-001
Thermal pad L54094-001
Before removing the heat sink, follow these steps:
1. Prepare the computer for disassembly (Preparation for disassembly on page 26).
2. Remove the bottom cover (see Bottom cover and rubber feet on page 27).
3. Remove the battery (see Battery on page 30).

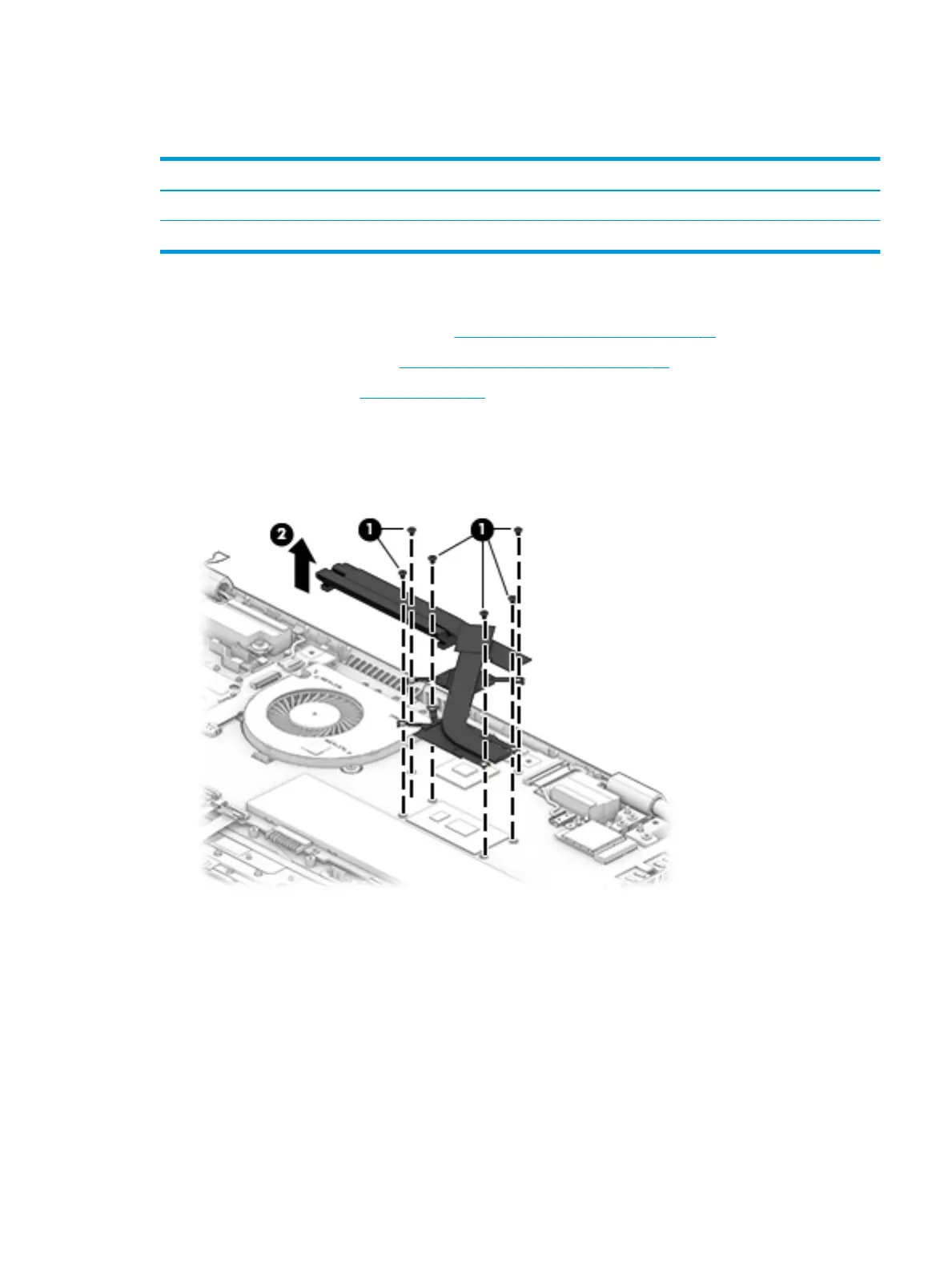

Remove the heat sink:
1. Remove the six Phillips M2.0 × 4.0 screws (1) that secure the heat sink to the system board.
2. Remove the heat sink (2).
Component replacement procedures 47
